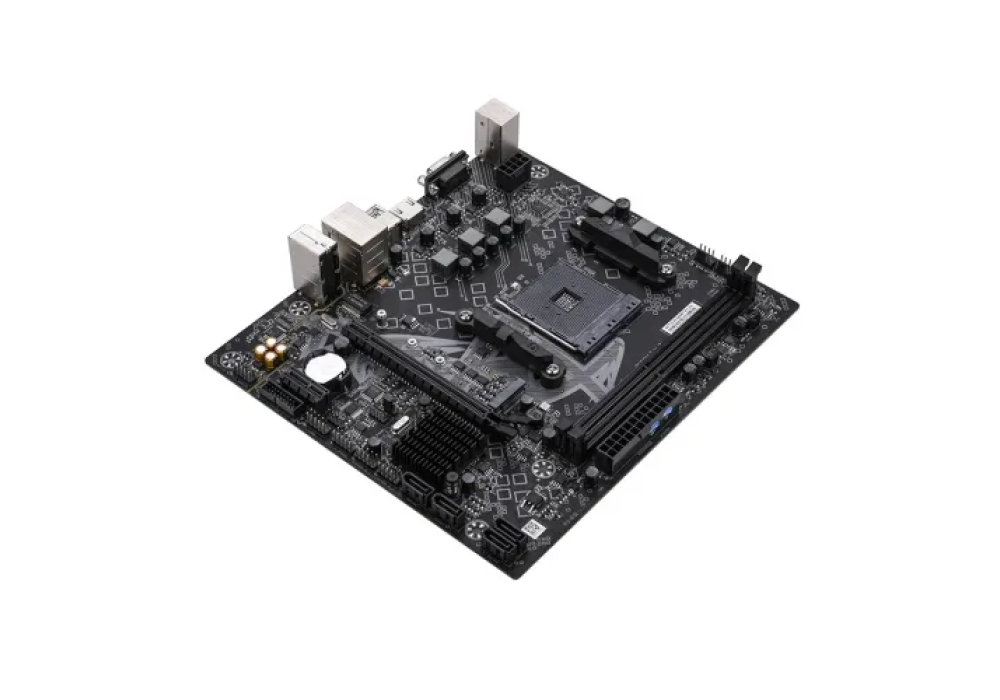

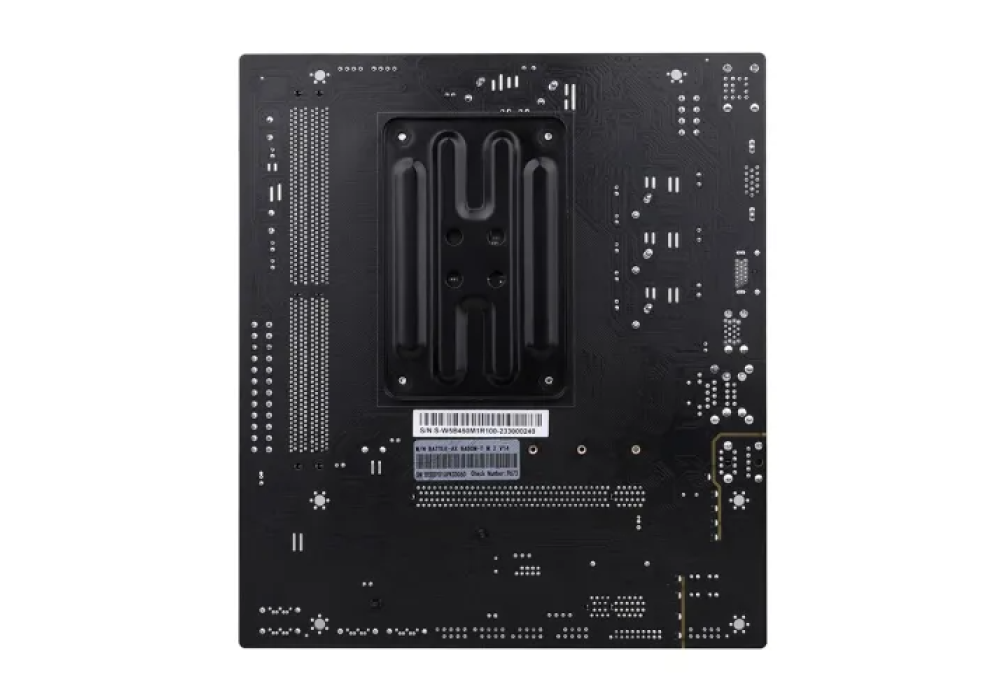

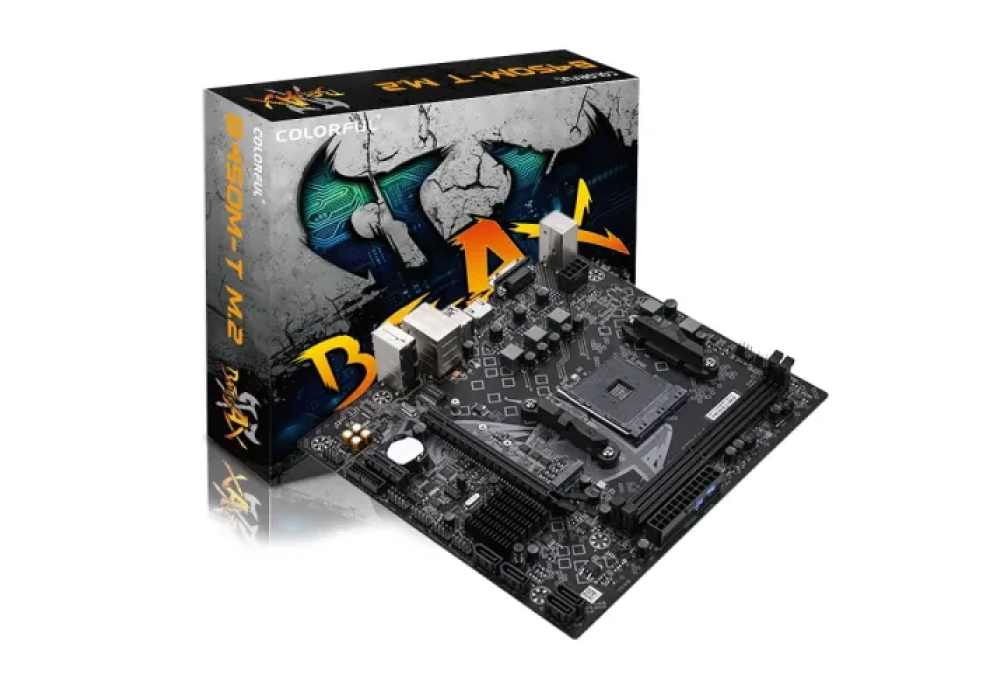

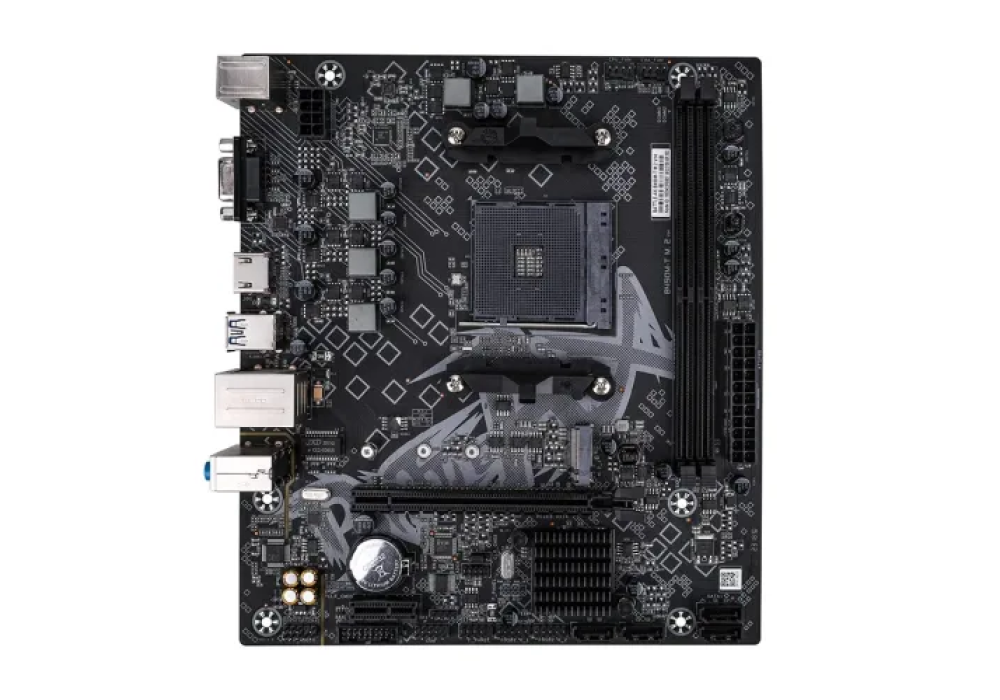

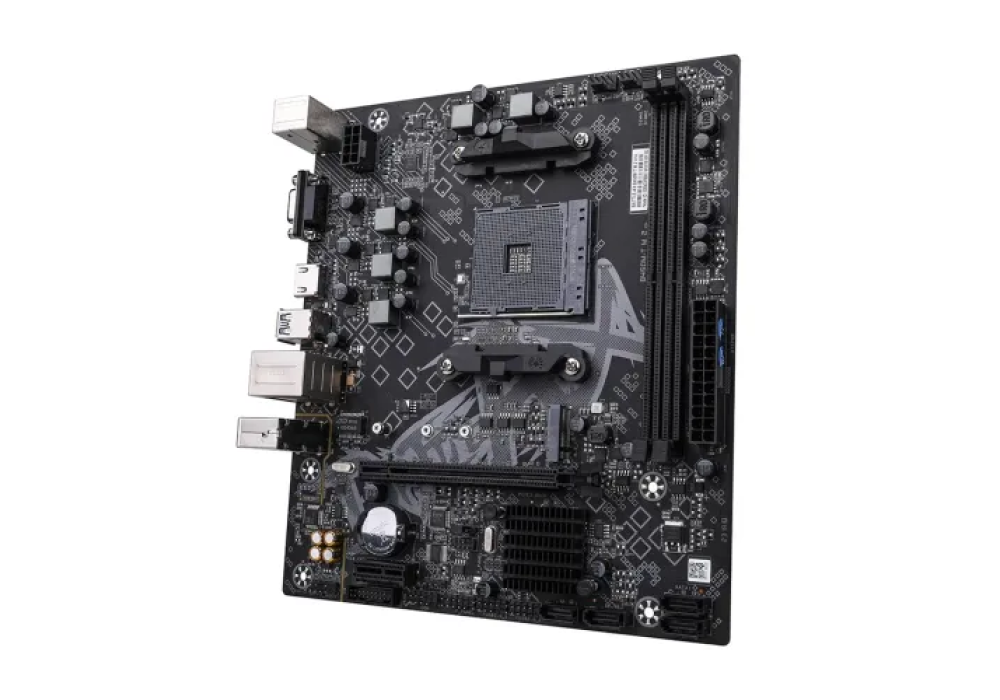

- Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard
- Stock: In Stock
- Model: BATTLE-AX B450M-T M.2 V14
- Supported CPU: Ryzen 5000/5000G/3rd/2nd/1st Gen
- Form Factor: M-ATX
- Memory Max.: 64GB
- Ram Type: DDR4
| Basic Information | |
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard |
| Chipset | AMD B450 |
| BIOS | 128M UEFI, support multiple languages |
| Form Factor | M-ATX 220mmx195 mm |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Expansion Slots | |
| PCI | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
| M.2 Socket | 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
| Memory | |
| Slot | 2 x DIMM |
| Supported Memory | Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory Supports Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
| Memory Type | DDR4 |
| Maximum Memory | Up to 64GB of memory (a single socket can support up to 32 GB of memory) |
| Connector & Ports | |
| HDMI | 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |
| USB (s) | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces |
| LAN Port (s) | 1×Gigabit network interface RTL8111H Gigabit Ethernet Card |
| Supported Storage | 1x M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |

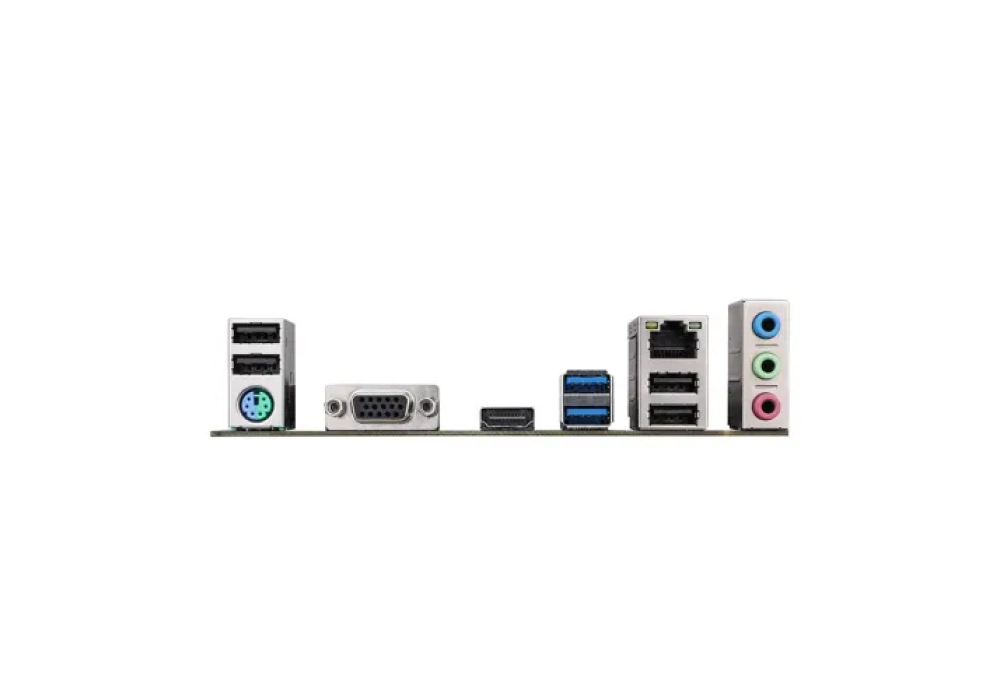

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×Debug light pin |
| VGA (s) | 1×VGA interface |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard – Reliable Budget Platform for AMD Ryzen DDR4 Systems
The Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard is a solid and cost-effective choice for building or upgrading an AMD-based desktop. Featuring the AM4 socket with support for a wide range of AMD Ryzen processors (including 1st, 2nd, and 3rd Gen), this board delivers dependable performance for gaming, everyday computing, and productivity tasks. Built on the proven B450 chipset, it includes support for DDR4 memory, high-speed M.2 storage, and essential connectivity options. Its mATX form factor makes it ideal for compact and space-efficient builds, while the straightforward layout simplifies installation and upgrades. Whether you're building a budget-friendly gaming rig or a home PC, the BATTLE-AX B450M-K M.2 V14 provides the performance and compatibility you need at an affordable price.
Features of Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard
-
AM4 socket with support for AMD Ryzen CPUs (1st/2nd/3rd Gen)
-
DDR4 memory support for efficient performance
-
B450 chipset with stable daily computing features
-
mATX form factor for compact PC builds
-
M.2 slot for NVMe SSD storage
-
Multiple USB and SATA ports for connectivity
Balanced DDR4 Performance
This motherboard supports DDR4 memory modules, making it a reliable choice for everyday performance, gaming, and multitasking without the higher cost of newer DDR5 boards.
Compact Layout with Essential Expansion
The mATX design allows for smaller builds without sacrificing key features, offering PCIe and M.2 slots for graphics cards and NVMe SSDs, while keeping the overall footprint minimal.
Why Choose Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard?
Choose this motherboard for a dependable and affordable AMD platform that supports a broad range of Ryzen processors and modern storage options. Its balance of features and price makes it ideal for budget gamers and daily users.
Benefits of Colorful BATTLE-AX B450M-K M.2 V14 AM4 mATX Motherboard
-
Broad Ryzen CPU compatibility
-
Affordable performance with DDR4 support
-
Fast M.2 storage capability
-
Compact mATX design
-
Versatile connectivity for peripherals
