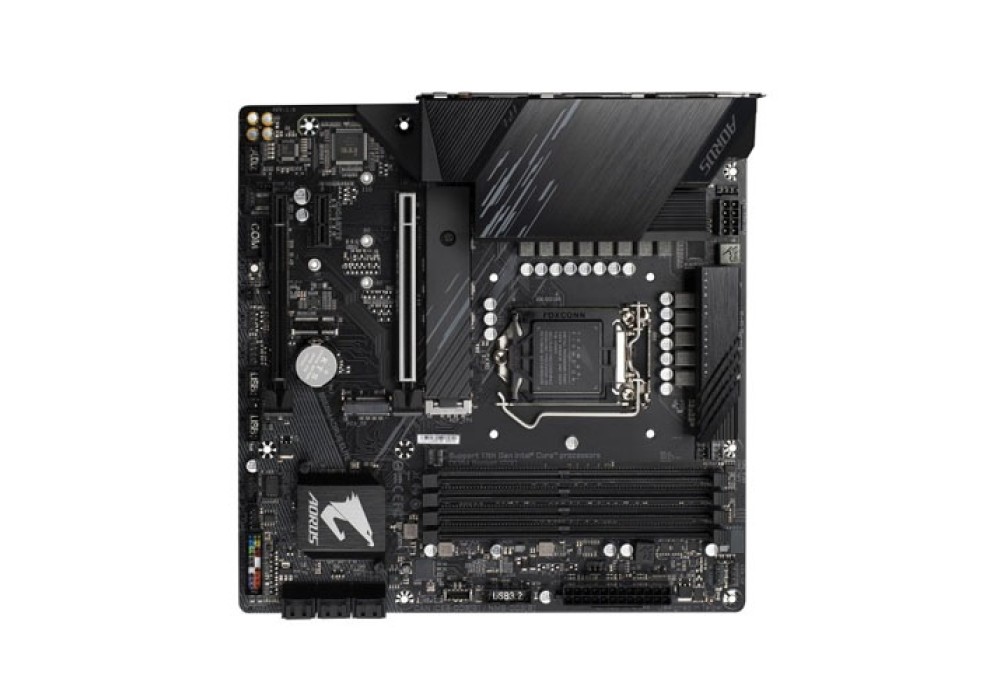

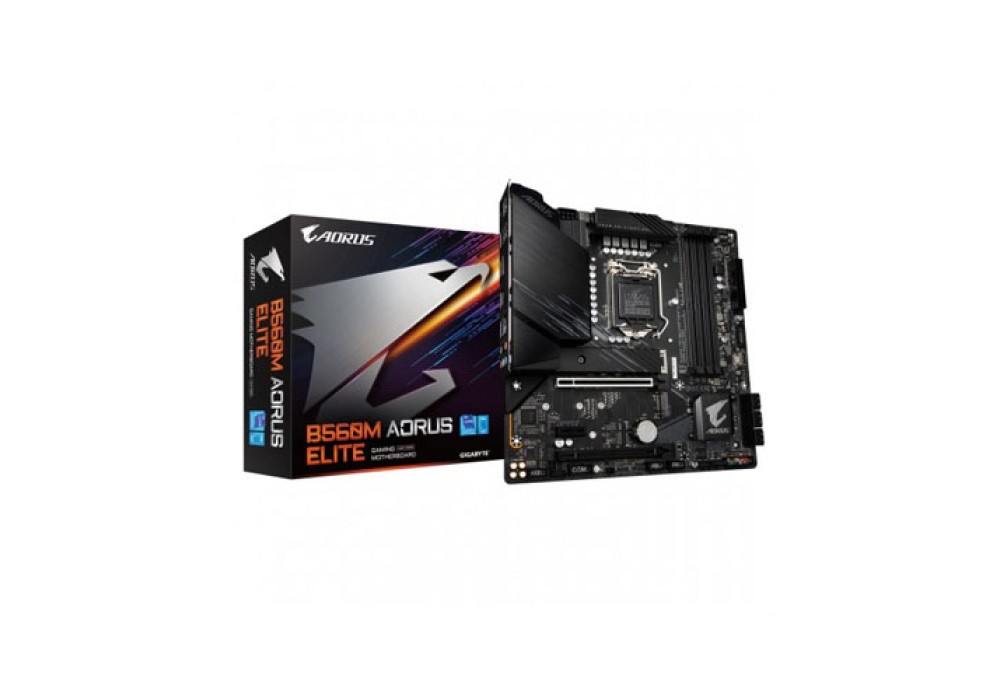

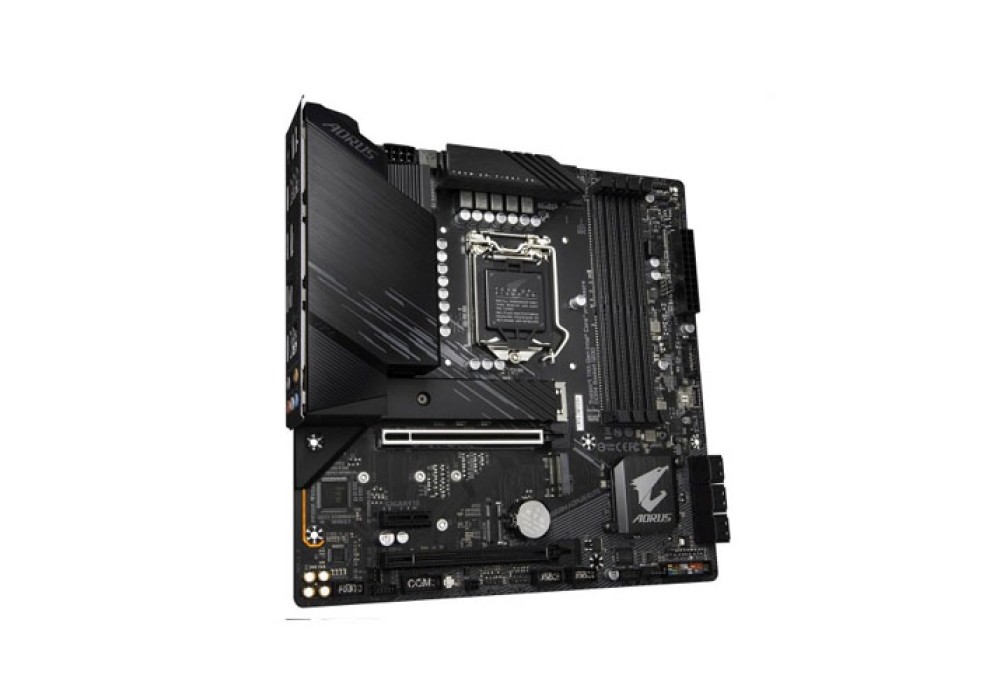

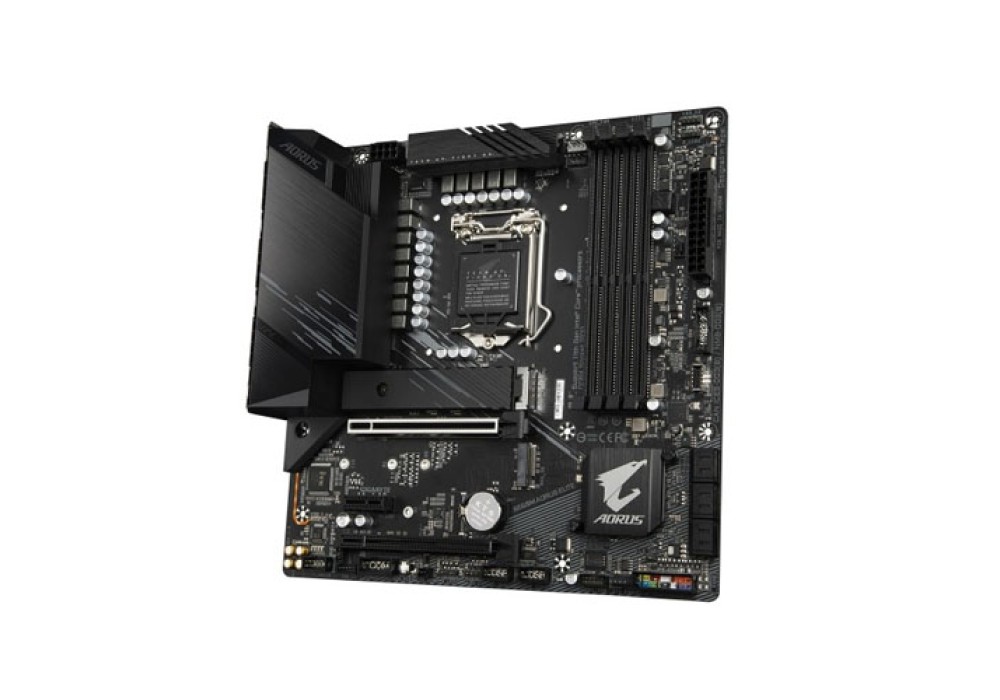

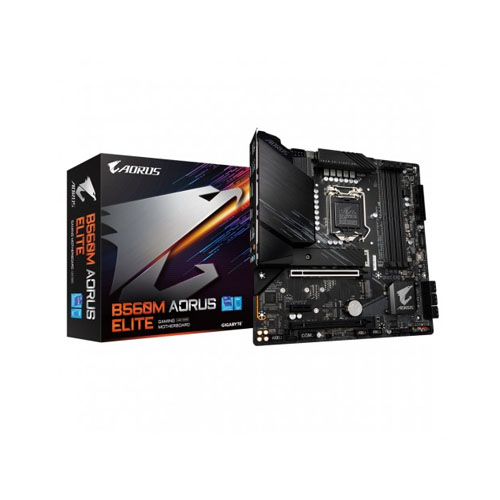

Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

Basic Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors /
Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio codec
High Definition Audio
2/4/5.1/7.1-channel
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.3
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/
4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
M.2 Socket 2 x M.2 Socket 3 connectors
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen2 support
1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
1 x USB Type-C port with USB 3.2 Gen1 support, available through the internal USB header
2 x USB 3.2 Gen1 ports available through the internal USB header
Chipset+ 2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Audio 6 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 3 year

Gigabyte B560M AORUS ELITE Intel 10th and 11th Gen Micro ATX Motherboard

The Gigabyte B560M AORUS ELITE Motherboard From Gigabyte. Gigabyte B560M AORUS ELITE Motherboard Supports 11th And 10th Gen Intel Core Series Processors. Gigabyte B560M AORUS ELITE Motherboard Has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Gigabyte B560M AORUS ELITE Motherboard Features Direct 12+1 Phases Digital VRM With Low RDS(On) MOSFETs. It Has Shielded Memory Routing For Better Memory Overclocking. It Comes With A Fully Covered Thermal Design With High Coverage MOSFET Heatsinks. Gigabyte B560M AORUS ELITE Motherboard Is Powered By A Fast 2.5GbE LAN With Bandwidth Management. It Supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Thermal Guard It Comes With Rear USB 3.2 Gen2 Type-C And Front USB3.2 Gen1 Type-C For Connecting Devices. Gigabyte B560M AORUS ELITE Motherboard Has Pre-Installed IO Shield For Easy And Quick Installation. RGB FUSION 2.0 With Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP. Q-Flash Plus Update BIOS Without Installing The CPU, Memory, And Graphics Card.

Direct 12+1 Phases Digital VRM Solution With Low RDS(On) MOSFET

Cleaner And More Efficient Power Delivery To The CPU With Better Thermal Performance Ensure Stability Under High CPU Frequencies And Heavy Loading.

ADVANCED THERMAL SOLUTION

B560M AORUS Uses High Performance Fully Covered Thermal Design With High Coverage MOSFET Heatsinks And Thick Thermal Pad, Providing Ultimate MOSFET Cooling Performance For Enthusiasts, Overclockers And Gamers.

High-Quality Onboard Audio Design

Delivers High-Quality Sound Resolution And Sound Expansion To Create The Most Realistic Sound Effects For Professional Gamers.

The Below Photos Are For Reference Only.

DEFINITIVE AESTHETICS

B560M AORUS ELITE Features RGB FUSION 2.0 And Offers Users The Option To Control Onboard, External Light Strips, And/Or AORUS Devices With RGB/ Addressable RGB LEDs To Make Their PC More Unique And Stylish.

ULTRA-DURABLE

GIGABYTE Is Reputable For Its Product Durability And High-Quality Manufacturing Process. Needless To Say, We Use The Best Components We Can Find For The B560M AORUS Motherboard And Reinforce Every Slot To Make Each Of Them Solid And Durable.

GIGABYTE BIOS & APP CENTER

Good Software Goes Hand In Hand With Perfect Hardware. GIGABYTE Motherboard Bundled Several Useful And Intuitive Software To Help Users To Control Every Aspect Of The Motherboard.
