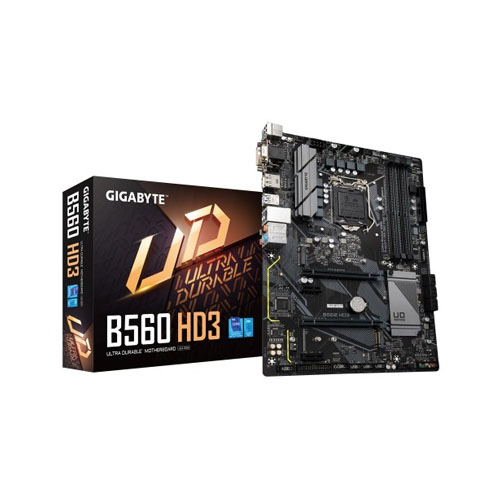

Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard

Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard

Name: Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard
Brand: Gigabyte
Availability: InStock
Rating: 1 (1 reviews)

Out of Stock

Model: B560 HD3

Key Features

Supports 11th and 10th Gen Intel Core Processors
Direct 6+2 Phases Digital VRM
Dual Ultra-Fast NVMe PCIe 4.0
Exclusive 8118 Gaming LAN

View More Info...

(0 reviews)

0৳

Chat Through

Specification

Basic Information

Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 22.5cm

Expansion Slots

PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

Memory Specifications

Memory Type	DDR4
Slots	4 x DIMM
Supported Memory Type	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	128 GB (32 GB single DIMM capacity)

Connector & Ports

HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
USB (s)	Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/ 1.1 ports available through the internal USB headers Chipset + USB 2.0 Hub: 2 x USB 2.0/ 1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz

Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
* When the D-Sub port and DisplayPort are connected at the same time, images will output
from the DisplayPort only.
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time

Others Information

Special Features

Support for APP Center
@BIOS
Easy Tune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Warranty Information

Manufacturing Warranty

3 year

Description

Features:

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth

Gigabyte B560 HD3 Intel 10th and 11th Gen ATX Motherboard

Direct 6+2 Phases Digital VRM Solution

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
All-solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

PERFORMANCE

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

4 PWM/DC Fan Headers
6 Internal Temperature Sensors

Cooling Features:

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

RGB FUSION 2.0

With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
