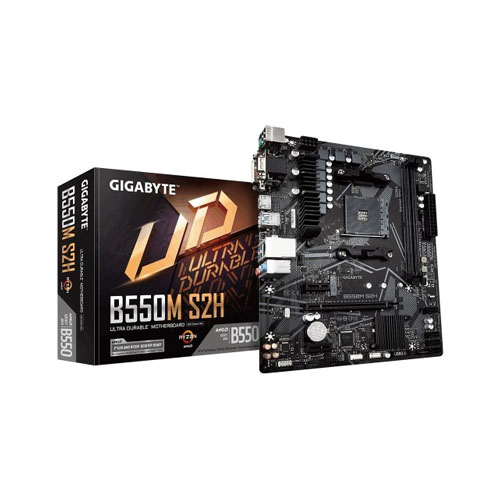

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Graphics
Graphics Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for up to 3 displays at the same time
Max Shared Memory 16 GB
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB
Expansion Slots
PCI 1‎ x PCI Express x16 slot, integrated into the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated into the Chipset:
Supporting PCIe 3.0 x1 mode
M.2 Socket 1‎ x M.2 connector, integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280
SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2
SSDs
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB
headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage 1‎ x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280
SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0
x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard

The Gigabyte B550M S2H  AM4 Micro-ATX Motherboard Is Designed Around The AMD B550 Chipset, Supporting 3rd Gen AMD Ryzen Processors With An AM4 Socket. It Has Two Memory Slots, Supporting Up To 64GB Of Dual-Channel RAM, Which Can Run At Up To 5100 MHz (O.C.). This Motherboard Features A Micro-ATX Form Factor, Which Fits In Smaller Tower Cases. Other Integrated Features Include Realtek Gigabit Ethernet, Realtek 7.1-Channel Audio Support, Smart Fan 5, RGB Fusion 2.0 Support, And Gigabyte Q-Flash Plus.

PCIe 4.0 Bandwidth

This Motherboard Pairs Third-Generation AMD Ryzen Processors With High PCIe 4.0 Memory Bandwidth Through The B550 Chipset For Maximum Performance.

NVMe PCIe 4.0/3.0 M.2 Connector

With NVMe PCIe 4.0/3.0 X4 And PCIe 3.0 X4 M.2 Connectors, This Motherboard Allows You To Experience NVMe Mode Or SATA Mode Connectivity, Delivering Up To 64 Gb/S Data Transfer Speed.

Realtek LAN

Realtek LAN Provides High Performance For Gamers And Features Automatic Bandwidth Allocation To Ensure The Highest Network Priority.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
