Model: B550 GAMING X
View More Info...
Chat Through
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs |
| Memory Type | DDR4 |
| Slots | 4 x DIMM slots |
| Supported Memory Type | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Max. Memory | Up to 128GB (32 GB single DIMM capacity) |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/ 100 Mbit) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Max Shared Memory | 16 GB |
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Manufacturing Warranty | 03 Years |

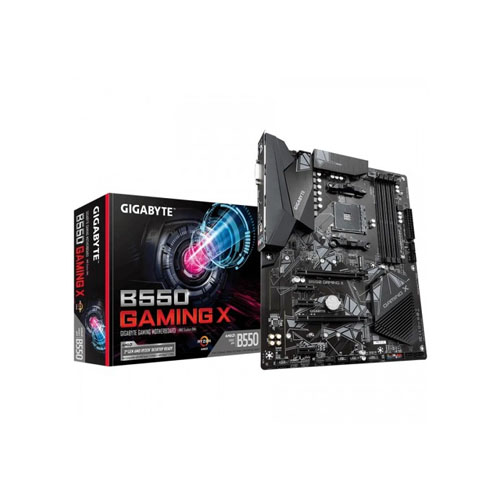

The Gigabyte B550 GAMING X AM4 ATX Motherboard is a high-performance motherboard designed to accommodate the latest AMD Ryzen processors, including the Ryzen 5000 Series and 3rd Gen Ryzen CPUs, offering exceptional gaming and computing experiences. Built on the AMD B550 chipset, this motherboard boasts a robust feature set to support a variety of tasks. With its ATX form factor, the motherboard provides ample room for expansion and customization, fitting seamlessly into most PC builds. Its extensive connectivity options include multiple PCIe slots, M.2 connectors, and SATA ports for versatile storage configurations. Users can expect reliable performance with support for high-speed DDR4 memory up to 4400MHz (OC), facilitating smooth multitasking and gaming. The inclusion of Realtek GbE LAN chip ensures stable network connectivity, while the Realtek ALC887 codec delivers immersive audio experiences. In terms of usability, the motherboard offers convenience features like USB 3.2 Gen 2 and Gen 1 ports, as well as RGB Fusion for customizable lighting effects. Additionally, utilities such as @BIOS, EasyTune, and Smart Backup enhance system management and optimization. The Gigabyte B550 GAMING X motherboard combines performance, versatility, and user-friendly features to meet the demands of gamers, content creators, and PC enthusiasts alike, making it an excellent choice for building a powerful and reliable gaming rig or workstation.
The Gigabyte B550 GAMING X motherboard boasts impressive performance capabilities, thanks to its compatibility with AMD Ryzen 5000 Series processors and 3rd Gen Ryzen processors with Radeon Graphics. This compatibility ensures smooth gaming experiences and efficient multitasking. Moreover, its support for DDR4 memory modules with speeds ranging up to 4400MHz (O.C.) enhances overall system responsiveness.
Powered by the AMD B550 chipset, this motherboard offers a stable and efficient platform for gaming and computing tasks. The B550 chipset provides PCIe 4.0 support, allowing for faster data transfer rates and improved performance compared to previous generations.
With an ATX Form Factor measuring 30.5cm x 24.4cm, the Gigabyte B550 GAMING X motherboard fits seamlessly into most standard PC cases. Its standardized dimensions ensure compatibility with a wide range of PC builds, whether it's a compact gaming setup or a spacious workstation.
The motherboard features four DIMM slots supporting up to 128GB of DDR4 memory. Users can take advantage of various memory configurations, including ECC Un-buffered DIMMs, non-ECC Un-buffered DIMMs, and Extreme Memory Profile (XMP) modules. This versatility allows gamers to optimize their system's memory performance according to their preferences and requirements.
With a wide range of ports and connectors, the motherboard of the Gigabyte B550 GAMING X provides a lot of connectivity choices. For high-speed networking, it has Realtek GbE LAN chip, HDMI, DVI-D, USB Type-C, and USB 3.2 Gen 2 Type-A connectors. Furthermore, effective storage expansion and data transfer are ensured by several M.2 ports and SATA 6Gb/s connectors.
The motherboard features a user-friendly BIOS interface, powered by licensed AMI UEFI BIOS. It supports various overclocking options, allowing users to fine-tune their system for optimal performance. Whether it's tweaking CPU frequencies or adjusting voltage settings, the BIOS provides ample customization options for enthusiasts.
Designed with gamers in mind, the Gigabyte B550 GAMING X motherboard incorporates several gaming-centric features. From support for multi-GPU setups to advanced audio technologies like Realtek ALC887 codec, it ensures an immersive gaming experience with crisp visuals and clear sound.
FAQs
Q: Is the Gigabyte B550 GAMING X motherboard compatible with AMD Ryzen processors?
A: Yes, it supports AMD Ryzen 5000 Series processors and 3rd Gen Ryzen processors with Radeon Graphics.
Q: What is the maximum memory capacity supported by this motherboard?
A: It supports up to 128GB of DDR4 memory, with support for various memory configurations.
Q: Does it support PCIe 4.0?
A: Yes, the motherboard features PCIe 4.0 support, ensuring faster data transfer rates.
Q: Can I overclock my CPU with this motherboard?
A: Yes, the motherboard offers overclocking support, allowing users to optimize CPU performance.
Q: Are there any special gaming features included?
A: Yes, the motherboard includes gaming-centric features like multi-GPU support and advanced audio technologies for an enhanced gaming experience.
