Model: B550 Aorus Elite AX
View More Info...
Chat Through
| Type | DDR4 |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| Memory Size | support up to 128GB (32 GB single DIMM capacity) |
| Slots | 4 x DIMM |
| Supported Memory Type | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen :
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| HDMI | 1x HDMI |
| Display Port (s) | 2 x DisplayPorts |
| USB (s) | CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 |
| Audio | Realtek ALC1200 codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Graphics | Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
| Bundled Software | Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility |
| Manufacturing Warranty | 3 Years |

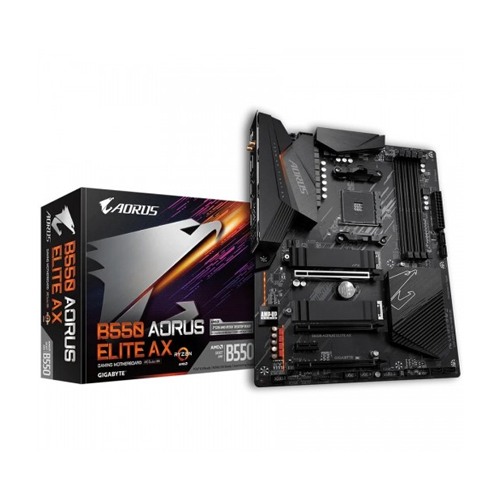

GIGABYTE B550 Aorus Elite AX AM4 ATX Motherboard is a high-performance motherboard tailored for gamers and PC enthusiasts seeking to build a powerful and efficient system. Designed to support AMD Ryzen processors, this motherboard utilizes the B550 chipset, ensuring compatibility with the latest technologies while providing an excellent platform for overclocking and system optimization. One of the standout features of the B550 Aorus Elite AX is its robust power delivery system, which includes a 12+2 phase digital power design. This design allows for stable power delivery to the CPU, enabling users to push their processors to higher performance levels without compromising stability. Coupled with advanced thermal solutions, including an enlarged heatsink and thermal pads, this motherboard ensures optimal cooling even during intense gaming sessions. The B550 Aorus Elite AX supports dual-channel DDR4 memory with speeds of up to 4800 MHz (OC), providing ample bandwidth for memory-intensive applications and multitasking. Additionally, it features multiple M.2 slots with PCIe 4.0 support, allowing for ultra-fast NVMe SSDs that dramatically improve loading times and overall system responsiveness. Connectivity options are extensive, featuring integrated Wi-Fi 6 for high-speed wireless networking, as well as Bluetooth support for seamless device pairing. The rear I/O includes multiple USB ports, an HDMI output for integrated graphics, and a robust audio solution powered by high-quality capacitors and a dedicated audio PCB layer for immersive sound quality.
