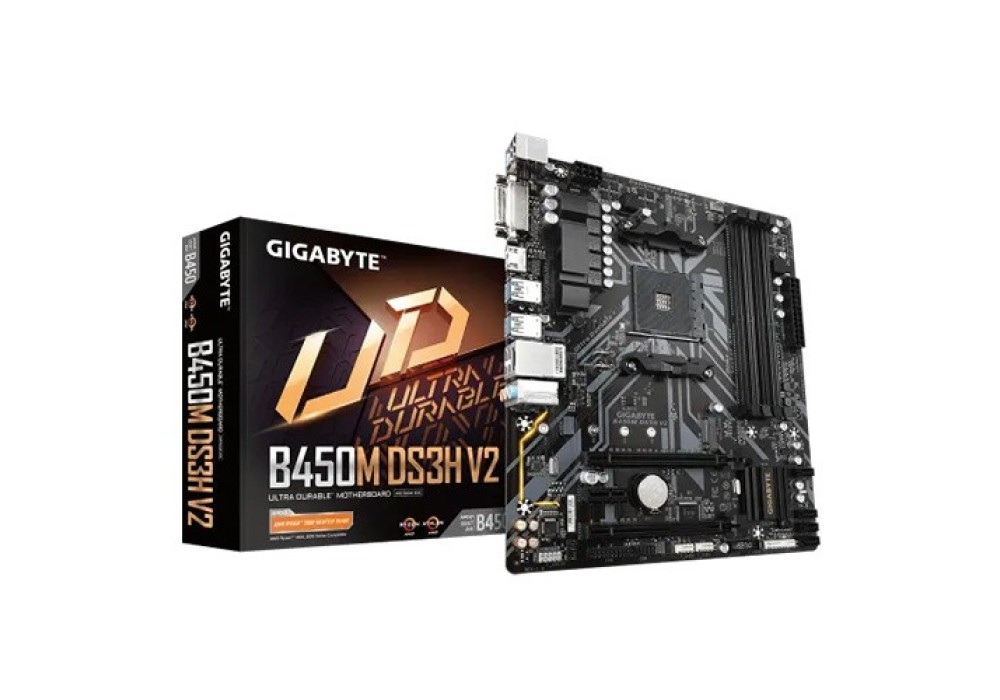

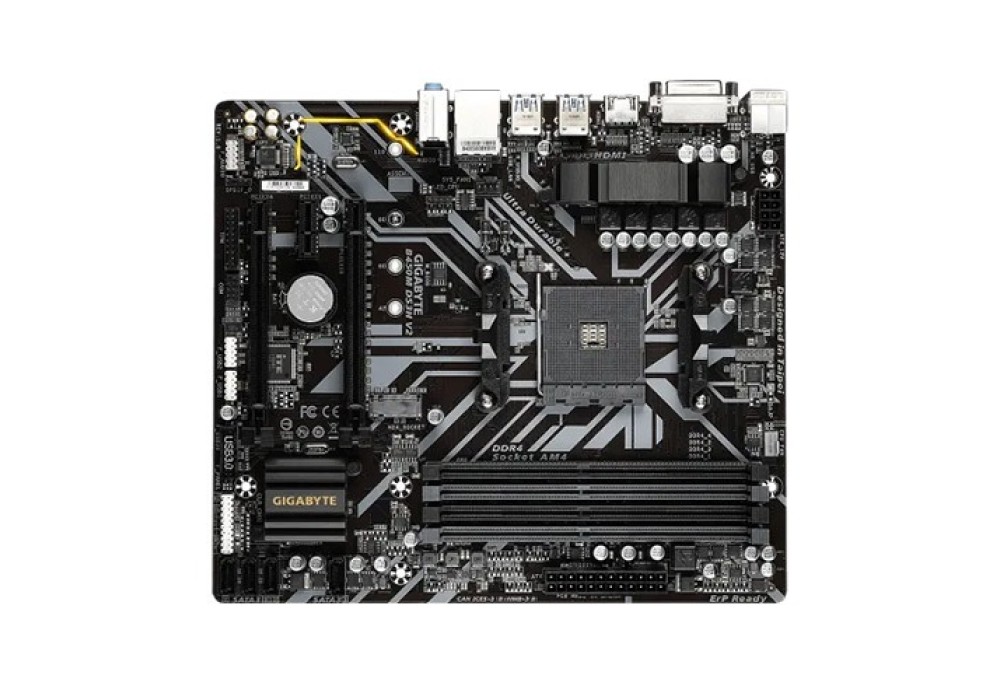

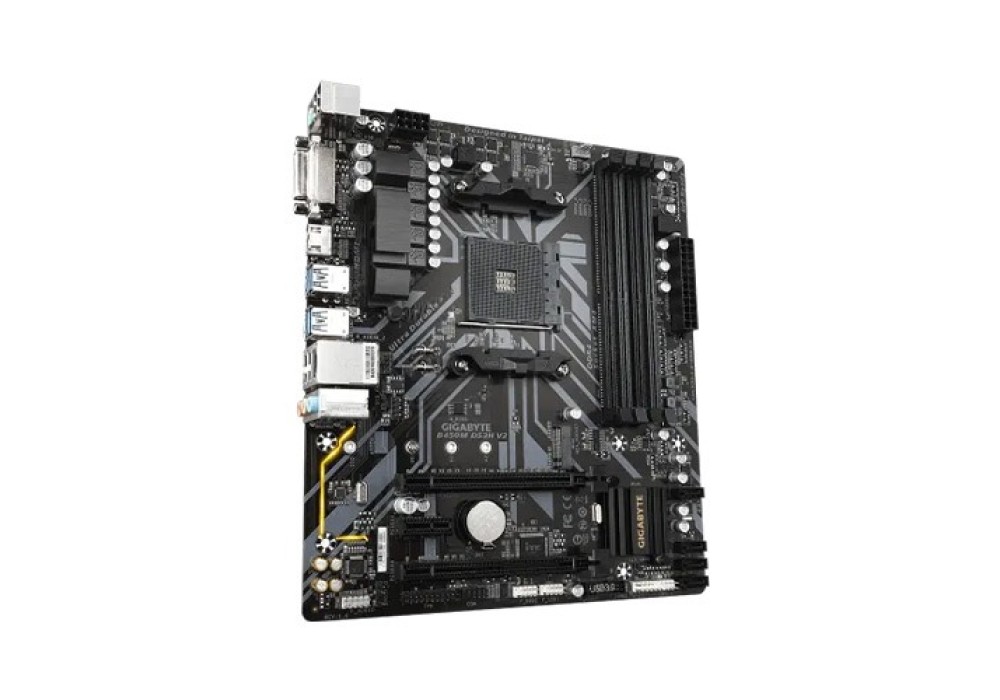

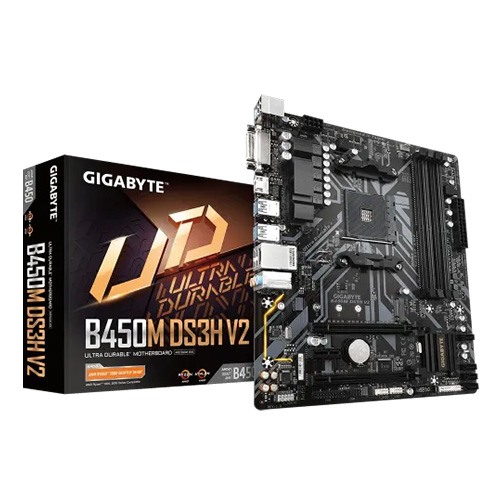

Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard

Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard

Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard is a feature-rich, high-performance motherboard designed to meet the demands of modern computing. Engineered with the AMD B450 chipset, this motherboard supports a wide range of AMD processors, including the Ryzen 5000 series, Ryzen 5000 G-Series, and previous generation Ryzen and Athlon processors, ensuring compatibility and future-proofing for various builds. This motherboard features a Micro ATX form factor, measuring 24.4cm x 21.5cm, making it an ideal choice for compact and space-efficient PC cases. Despite its small size, it packs a punch with a plethora of features and connectivity options. The board supports up to 128GB of DDR4 memory across four DIMM slots, with speeds up to 3600 MHz (overclocked), providing ample memory capacity and speed for intensive multitasking and high-performance applications. For graphics, the B450M DS3H V2 includes one PCI Express x16 slot conforming to the PCI Express 3.0 standard, perfect for high-performance GPUs, and an additional PCI Express x16 slot running at x4. It also supports AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies, allowing for robust multi-GPU setups. Integrated graphics support includes a DVI-D port and an HDMI port, supporting resolutions up to 4096x2160 at 60Hz, ensuring clear and high-quality visuals. Storage options are plentiful, with four SATA 6Gb/s connectors and one M.2 connector that supports both SATA and PCIe x4/x2 SSDs, depending on the CPU used. This flexibility allows for rapid data transfer speeds and extensive storage configurations, enhancing overall system performance. The motherboard also boasts a robust set of connectivity options. It includes four USB 3.1 Gen 1 ports on the back panel, four USB 2.0/1.1 ports, and additional USB ports available through internal headers. Networking is handled by a Realtek GbE LAN chip, providing reliable and fast wired internet connectivity. Audio is powered by a Realtek Audio codec, delivering high-definition audio across 2/4/5.1/7.1-channel configurations, with support for S/PDIF out for superior sound quality. The board also features RGB Fusion for customizable lighting, enhancing the visual appeal of your build. With a comprehensive BIOS, support for various RAID configurations, and bundled software like Norton Internet Security, the Gigabyte B450M DS3H V2 offers a robust and versatile platform for building a powerful and efficient PC. Backed by a three-year warranty, this motherboard provides reliability and peace of mind for your computing needs.

Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard Features

• Processor Support and Chipset: The motherboard supports a wide range of AMD Ryzen processors, including the Ryzen 5000 series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, and Athlon with Radeon Vega Graphics Processors. The AMD B450 chipset ensures compatibility and efficient performance for diverse computing requirements.
• Expansion Slots and Memory Support: With a PCI Express x16 slot running at x16 (PCIEX16), a PCI Express x16 slot running at x4 (PCIEX4), and a PCI Express x1 slot, the motherboard offers flexibility for graphics cards and expansion cards. It supports up to 128GB of DDR4 memory across four DIMM slots, with support for memory speeds up to DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz, catering to diverse memory configurations and performance needs.

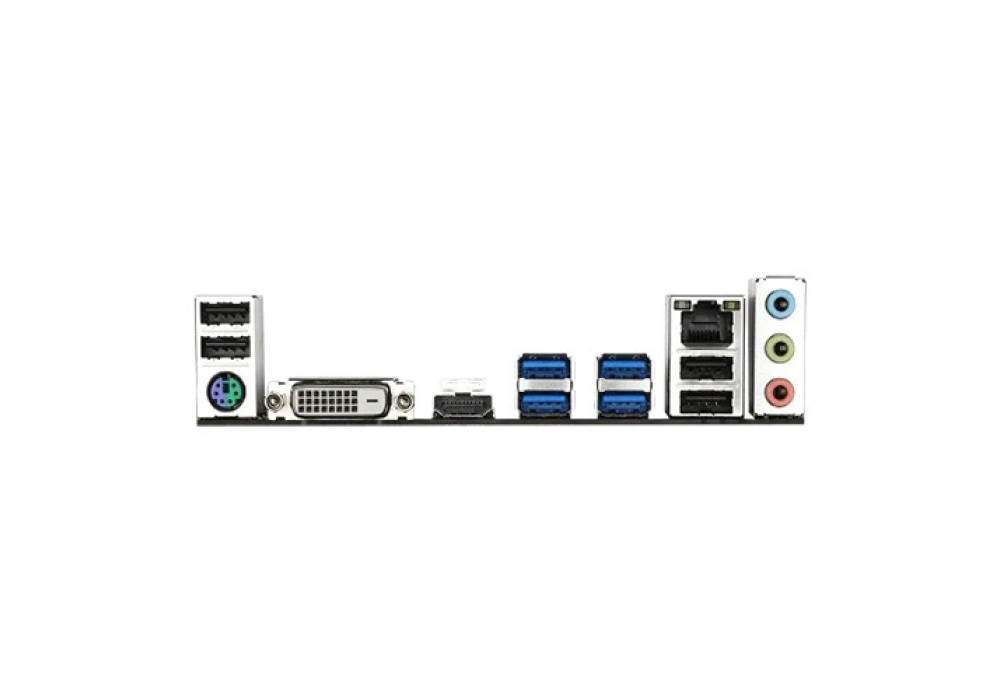

• Graphics and Connectivity: The motherboard features integrated graphics support with a DVI-D port and an HDMI port, offering flexibility for multiple display setups. It also provides a range of USB ports, including USB 3.1 Gen 1 and USB 2.0/1.1 ports, along with a Realtek GbE LAN chip for reliable networking capabilities.
• Storage and Audio: The motherboard includes an M.2 connector for SATA and PCIe SSD support, along with SATA 6Gb/s connectors and support for RAID 0, RAID 1, and RAID 10 configurations. The Realtek Audio codec delivers high-definition audio with support for 2/4/5.1/7.1-channel audio, providing an immersive audio experience for users.
• Form Factor and Special Features: With a Micro ATX form factor and a range of special features such as support for APP Center, @BIOS, RGB Fusion, and more, the motherboard offers a comprehensive set of tools and utilities for system management and customization.
• Warranty: The motherboard is backed by a 3-year manufacturing warranty, providing users with assurance of product quality and reliability.

In summary, the Gigabyte B450M DS3H V2 AMD AM4 Micro ATX Motherboard stands as a versatile and reliable foundation for custom PC builds, offering support for a wide range of AMD Ryzen processors, comprehensive connectivity options, and a range of special features for system customization and management. Whether for gaming, content creation, or professional computing, this motherboard provides a robust and efficient platform for diverse computing needs.
