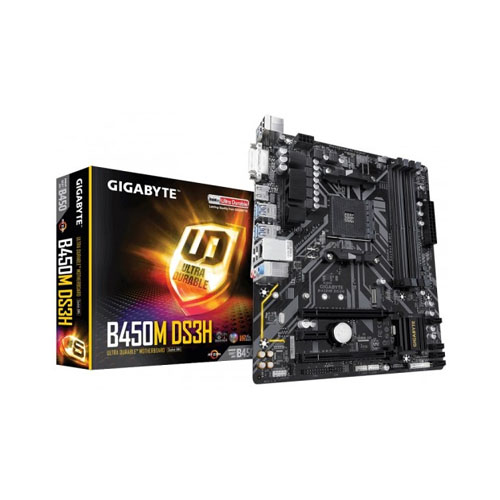

Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard

Name: Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard
Brand: Gigabyte
Availability: InStock
Rating: 1 (1 reviews)

Out of Stock

Model: B450M DS3H

Key Features

Supports Up to AMD Ryzen 5000 series Processors
Chipset: AMD B450
Memory: 4 x DDR4, Max 64 GB
3 x PCI Express slots

View More Info...

(0 reviews)

0৳

Chat Through

Specification

Basic Information

Supported CPU	AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset	AMD B450
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 21.5cm

Expansion Slots

PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.

Memory Specifications

Memory Type	Dual Channel DDR4 Memory Technology
Slots	4 x DIMM
Supported Memory Type	Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	64 GB

Connector & Ports

HDMI	1 x HDMI port
USB (s)	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper

Graphics

Graphics	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2
Max Shared Memory	2 GB

Warranty Information

Manufacturing Warranty

03 years

Description

Overview of Gigabyte B450M DS3H AM4 Micro ATX Motherboard

The Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard offers a compact yet powerful foundation for your AMD Ryzen™ system. Compatible with a range of Ryzen processors, including 1st and 2nd Generation CPUs and Ryzen with Radeon Vega Graphics processors, it utilizes the AMD B450 chipset for robust performance. The motherboard features a Micro ATX form factor, making it suitable for smaller builds without sacrificing functionality. With expansion slots including one PCI Express x16 slot running at x16 for optimal GPU performance, one PCI Express x16 slot running at x4, and one PCI Express x1 slot, it allows for versatile expansion options. The M.2 connector supports both SATA and PCIe 3.0 x4/x2 SSDs, enhancing storage capabilities. Memory support is extensive, accommodating up to 64 GB of DDR4 RAM across four DIMM slots with speeds of up to 3200MHz (O.C.). Connectivity options include HDMI and DVI-D ports for high-definition display output, along with USB 3.1 Gen 1 and USB 2.0/1.1 ports for peripherals. The Realtek GbE LAN chip ensures reliable networking, while the Realtek ALC887 codec delivers high-definition audio. With support for RAID configurations and a range of internal I/O ports, the B450M DS3H provides a versatile and reliable foundation for your AMD Ryzen system.

Performance

The B450M DS3H performs admirably in terms of performance. Its B450 processor, which provides outstanding speed and efficiency, makes it appropriate for a wide range of tasks, including ordinary computing, gaming, and content creation. By maximizing the power of their hardware, users can further improve system performance with support for overclocking. The B450M DS3H excels at gaming performance, offering fluid gameplay and snappy controls. Thanks to its high-speed connectivity and streamlined architecture, this motherboard guarantees a lag-free experience whether you're playing intense open-world adventures or fast-paced shooters.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Form Factor

The B450M DS3H features a Micro ATX form factor, making it suitable for compact builds without compromising functionality. Despite its smaller size, this motherboard offers ample room for expansion, with multiple PCIe slots and RAM slots available for additional components. Its sleek design and sturdy build quality further enhance its appeal, ensuring that it not only performs well but also looks great in any PC setup.

Chipset

The Gigabyte B450M DS3H, which is powered by the B450 chipset, has some features that are suitable for both productivity and gaming users. The superior cooling solutions and support for high-speed memory are only a couple of the features that the B450 chipset provides to optimize system performance. It also offers compatibility with the newest AMD CPUs, guaranteeing that your system stays current and strong enough to tackle the toughest jobs.

Supported Memory

Memory compatibility is crucial for smooth system operation. The B450M DS3H supports DDR4 memory modules, allowing you to harness the full potential of your system. With support for up to 64GB of DDR4 RAM, users can enjoy smooth multitasking and seamless performance, even when running multiple applications simultaneously. With support for high-speed RAM and ample slots for expansion, this motherboard lets you customize your setup according to your requirements.

Supported Processor

One of the key highlights of the B450M DS3H is its compatibility with AMD processors, particularly those in the Ryzen series. Whether you're using a Ryzen 3, Ryzen 5, or Ryzen 7 processor, this motherboard ensures optimal performance and reliability, allowing you to take full advantage of AMD's latest technologies. With support for socket AM4, it offers future-proofing for upcoming processor releases, ensuring that your system remains relevant for years to come.

FAQs

Q: Is the Gigabyte B450M DS3H compatible with Ryzen processors?
A: Yes, the B450M DS3H is compatible with AMD Ryzen processors, offering optimal performance and reliability.
Q: Does the motherboard support overclocking?
A: Yes, the B450M DS3H supports overclocking, allowing users to push their hardware to its limits for enhanced performance.
Q: How many USB ports does the motherboard have?
A: The B450M DS3H features multiple USB ports for connecting peripherals, ensuring maximum connectivity and convenience.
Q: Does the motherboard come with built-in Wi-Fi and Bluetooth?
A; Yes, the B450M DS3H comes equipped with built-in Wi-Fi and Bluetooth capabilities, allowing for wireless connectivity out of the box.
Q: What is the warranty period for the Gigabyte B450M DS3H motherboard?
A: The warranty period for the B450M DS3H varies depending on the region and retailer, so it's best to check with the seller for specific details.
