Gigabyte B450 AORUS M AMD Micro ATX Motherboard

Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Out Of Stock
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
Gigabyte B450 AORUS M AMD Micro ATX Motherboard
  • Stock: Out Of Stock
  • Model: B450 AORUS M
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supports Up to AMD Ryzen 5000 series Processors
    • Chipset: AMD B450
    • Memory: 4 x DDR4, Max 64 GB
    • 3 x PCI Express slots
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors
Chipset AMD B450
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Memory Specifications
Memory Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory Type Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory 64 GB

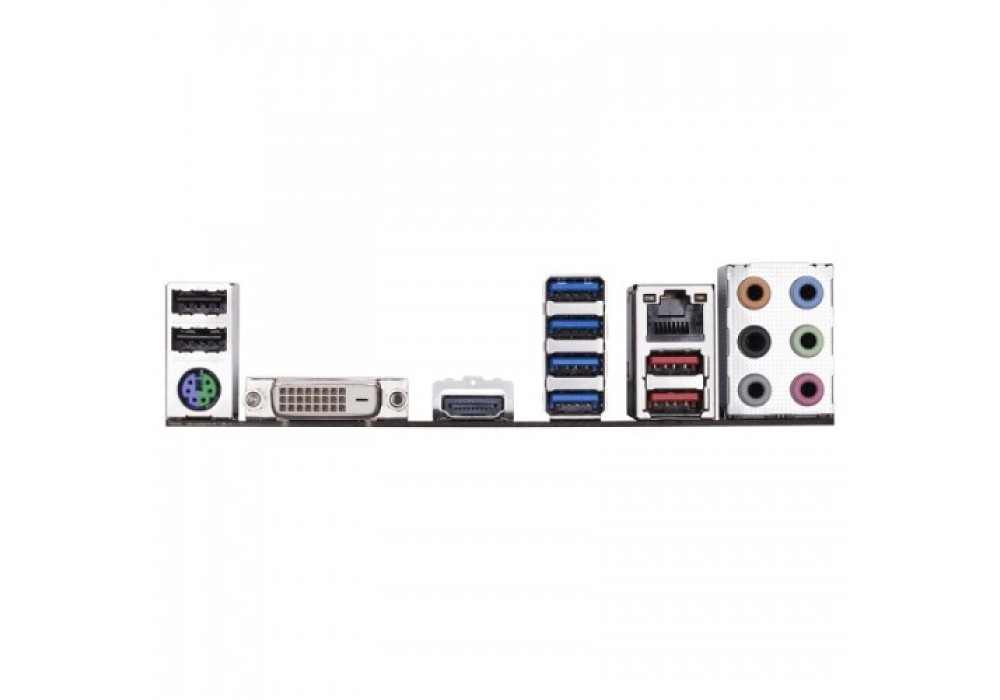

Connector & Ports
HDMI 1 x HDMI
USB (s) Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB (RGBW) LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
DVI-D (s) 1 x DVI-D
Graphics
Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
* Actual support may vary by CPU.
Max Shared Memory 16 GB
Warranty Information
Manufacturing Warranty 03 years
Description

FEATURES:

  • Supports AMD Ryzen™ 2nd Generation/ Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • HDMI, DVI-D Ports For Multiple Display
  • Ultra-Fast NVMe PCIe Gen3 X4 M.2 With Thermal Guard
  • High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting
  • RGB FUSION With Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
  • Smart Fan 5 Features 5 Temperature Sensors And 3 Hybrid Fan Headers With FAN STOP
  • APP Center Including EasyTune™ And Cloud Station™ Utilities
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD And 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power With A Simple Click

Gigabyte B450 AORUS M AMD Micro ATX Motherboard

AMD Introduces The Latest Ryzen™ 2000 Series Processors To Provide The Computing Power For Gaming Need. GIGABYTE's B450 Series Motherboards Perfectly Fit The Latest AMD Ryzen™ 2000 Series Processors' Computing Performance With More Features And More Control. Users Can Enjoy The Benefits Brought By AMD Ryzen™ 2000 Series Processors.GIGABYTE 400-Series Motherboards Maximize Your PC's Potential With AMD StoreMI Technology. StoreMI Accelerates Traditional Storage Devices To Reduce Boot Times And Enhance The Overall User Experience. This Easy-To-Use Utility Combines The Speed Of SSDs With The High Capacity Of HDDs Into A Single Drive, Enhances The Read/Write Speeds Of The Device To Match That Of SSDs, Bolsters Data Performance For Incredible Value, And Transforms The Everyday PC To A Performance Driven System. GIGABYTE M.2 Solution Offers Considerably Faster Storage Performance And Support For Both PCIe And SATA Interfaces* For M.2 SSD Devices.Realtek 8118 LAN Is A High Performance And Friendly Network Chip For Gaming Players With Automatic Bandwidth Allocation To Ensure The Highest Network Priority Of The Game Or Application. It Can Provide Users The Most Comprehensive Features And The Fastest And Smoothest Internet Experience.
