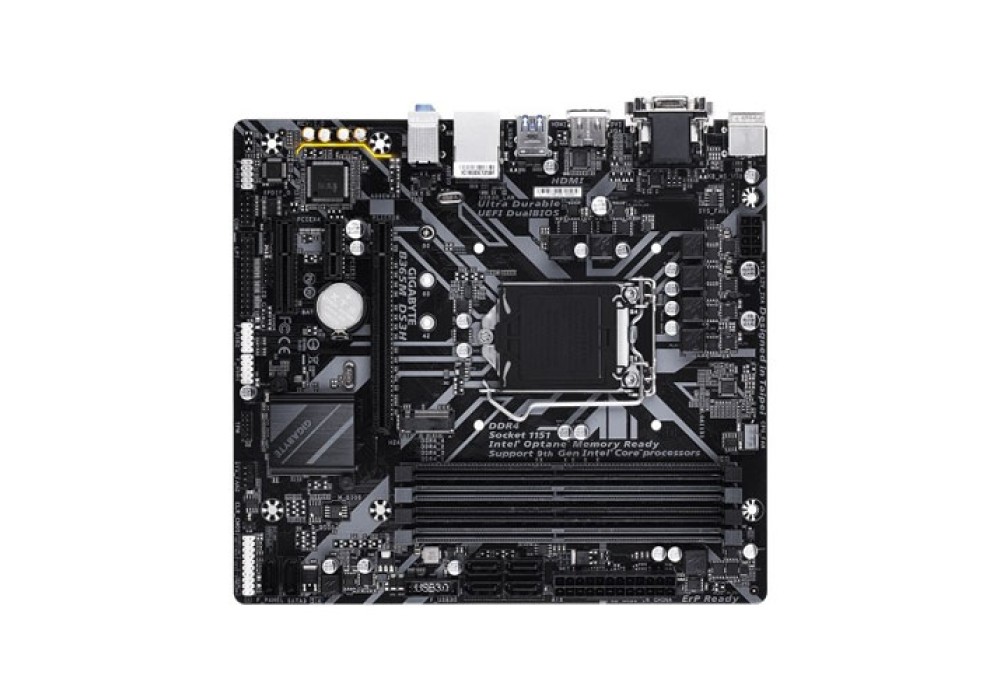

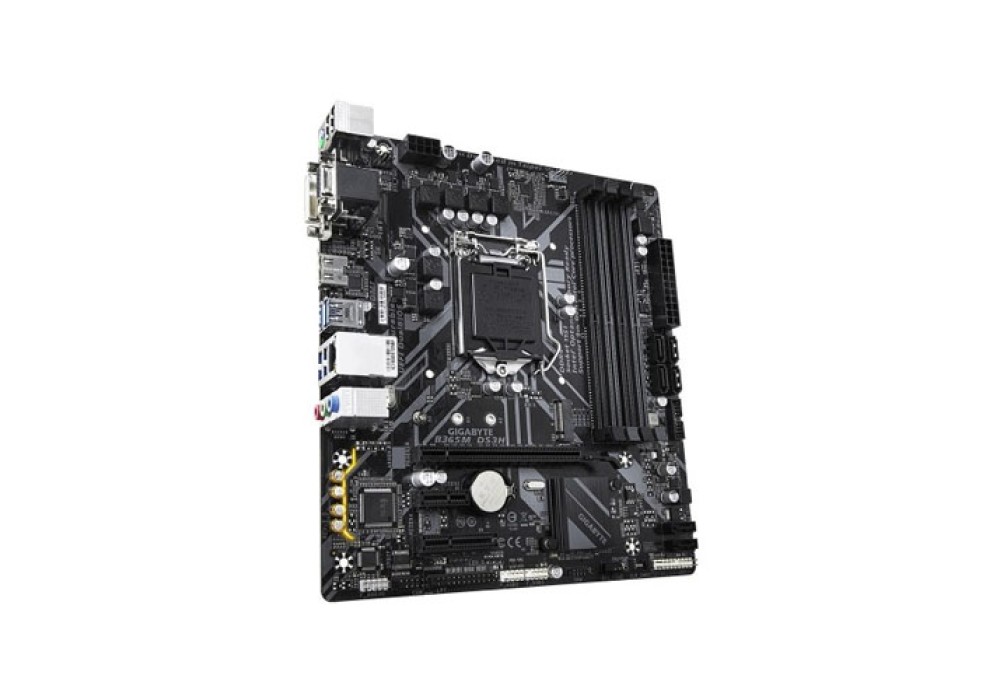

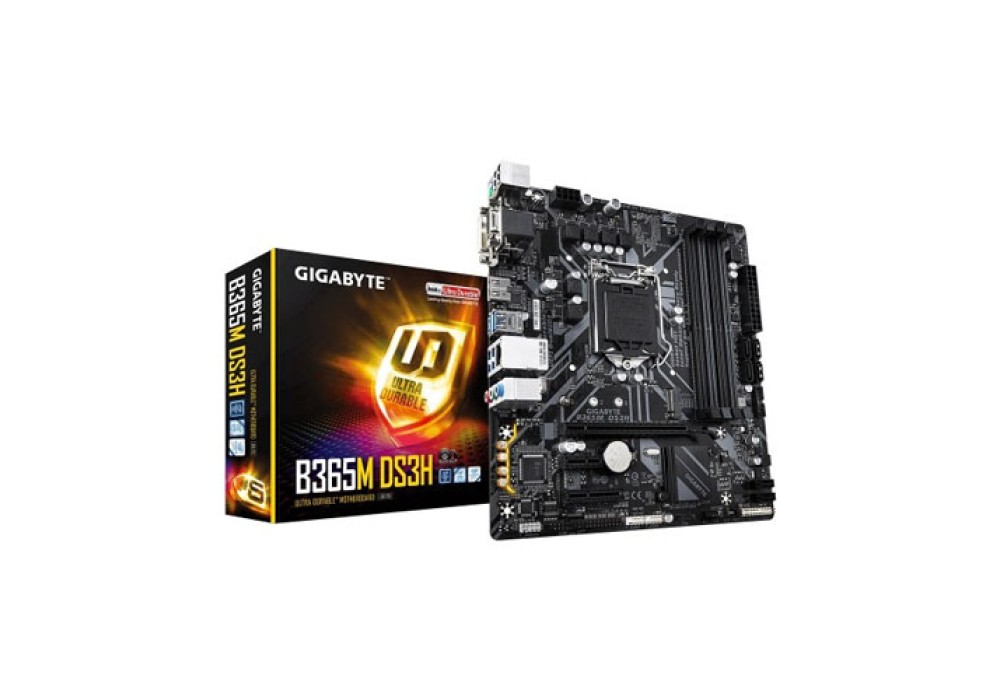

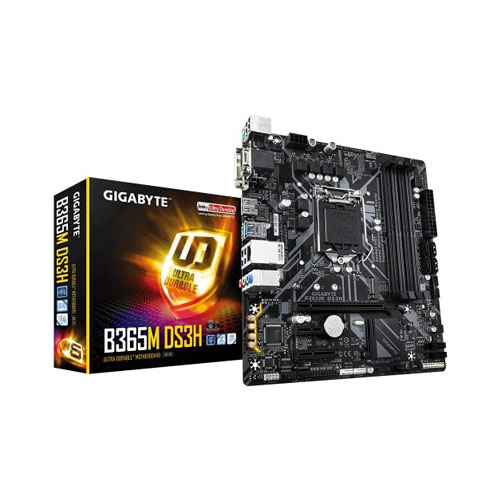

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Basic Information
Supported CPU 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Chipset Intel B365 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX
Graphics
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Max Shared Memory 1 GB
Memory
Type DDR4
Slots 4
Supported Memory 2666/2400/2133 MHz
Maximum Memory 64GB
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
M.2 Socket 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

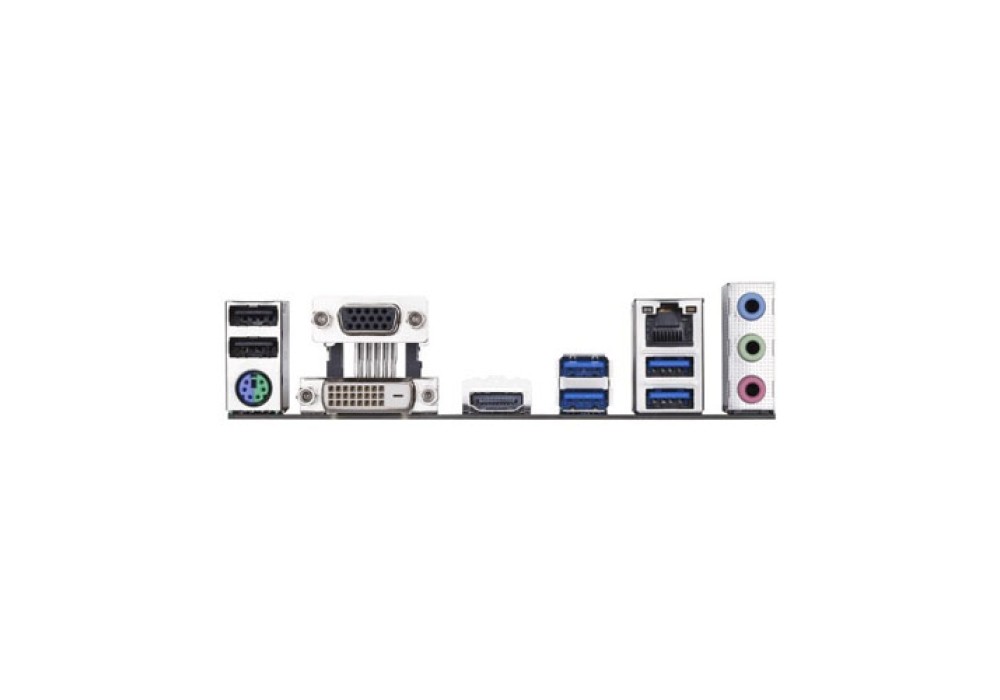

Connector & Ports
HDMI Yes ( 1.4 )
D-Sub (s) Yes
DVI-D (s) Yes
USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio Audio chipset : 2/4/5.1/7.1-channel
Audio channel : Realtek ALC887
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty 03 Year Warranty

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Exclusive Realtek 8118 Gaming LAN

Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Real-Time Network Monitoring

NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s). GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Headers

■ 4 Temperature Sensors

■ 3 Fan Pin Headers

■ All Fan Pin Headers Upgraded to Hybrid Fan Headers

■ Interoperable Fans and Sensors

■ Intuitive UI for Fan Contro

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!
