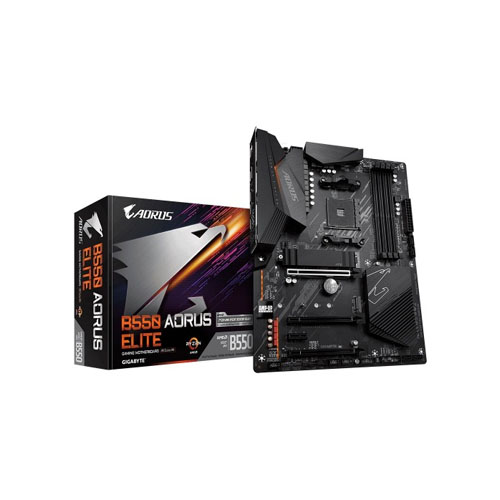

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Graphics
Graphics 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB
Memory
Type Dual-Channel Architecture
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz
memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/3200 /2933 /2667 /2400 /2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory support up to 128GB
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
M.2 Socket 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0
x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s) CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
- New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0
x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years warranty

FEATURES:

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • True 12+2 Phases Digital VRM Solution with 50A DrMOS
  • Advanced Thermal Design with Enlarged Surface Heatsinks
  • Ultra Durable™ PCIe 4.0 x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
  • AMP-UP Audio with ALC1200 and WIMA Capacitors
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Rear DisplayPort & HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

Gigabyte B550 AORUS ELITE Gaming AMD Motherboard

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

  • Making the PC experience fast, smooth and easy
  • Optimizing computer responsiveness from system boot to application launch
  • Offering SSD performance with HDD capacity at an affordable cost
  • Quickly accessing key files by automatically learning users' computing behaviors

ULTIMATE POWER DESIGN

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 AORUS motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 AORUS motherboards for enthusiast. No Compromise and never stop to achieve higher.

True 12+2 Phases Digital Power Design

  • Digital PWM Controller delivers appropriate voltage to the CPU
  • True 12+2 Phases DrMOS with PWM Doublers design to deliver stable power to the CPU. With capability to handle up to 700 Amps current in a total.
  • All-solid capacitors to improve Transient response and minimize oscillation.
  • 24pin+8pin Solid Pin CPU Power Connectors

B550 AORUS ELITE motherboard uses an True 12+2 phases digital power design which includes PWM controller, doublers and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen™ processors.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

2X Faster than ever

Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig (10/100/1000/2500Mbps)of RJ-45 ethernet.

Native USB 3.2 Gen2

AMD B550 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.2 Gen1.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

High-End WIMA & Audio Capacitors

The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
