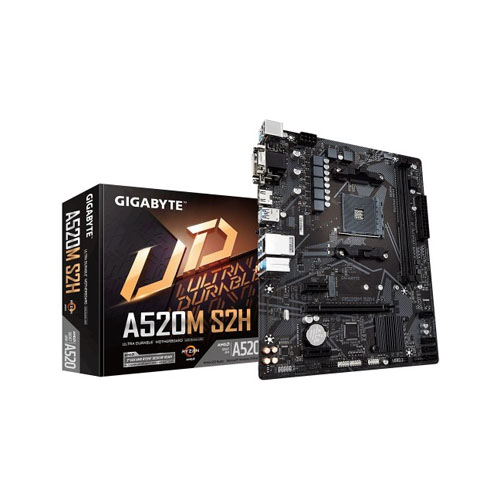

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 20.5cm
Graphics
Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory 16 GB
Memory
Type Dual channel memory architecture
Slots 2 x DDR4 DIMM
Supported Memory 3rd Gen AMD Ryzen Processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) /
3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Maximum Memory 64 GB
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB
headers)
LAN Port (s) Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper
Others Information
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years

FEATURES:

  • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ And 3rd Gen Ryzen™ With Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+3 Phases Pure Digital VRM Solution With Low RDS(On) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 X4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
  • HDMI, DVI-D, D-Sub Ports For Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers With FAN STOP
  • Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card
  • Anti-Sulfur Resistors Design

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

GIGABYTE UD Series Motherboards Use A 4+3 Phases Pure Digital PWM + Low RDS(On) MOSFETs Design To Support The 3rd Gen AMD Ryzen™ CPUs By Offering Incredible Precision In Delivering Power To The Motherboard's Most Power-Hungry And Energy-Sensitive Components As Well As Delivering Enhanced System Performance And Ultimate Hardware Scalability

NVMe PCIe Gen3 X4 M.2 Connector

GIGABYTE Motherboards Are Focused On Delivering M.2 Technology To Enthusiasts Who Want To Maximize Their System’s Potential.

Exclusive Realtek 8118 Gaming LAN

High-Speed Gigabit LAN With Automatic Bandwidth Allocation

Realtek 8118 LAN Is A High Performance And Friendly Network Chip For Gaming Players With Automatic Bandwidth Allocation To Ensure The Highest Network Priority Of The Game Or Application. It Can Provide Users The Most Comprehensive Features And The Fastest And Smoothest Internet Experience.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE Motherboards Use ICs With Up To 3 Times The ESD Resistance Levels Compared To Traditional ICs. This Helps To Better Protect The Motherboard And Its Components Against Potential Damage Caused By Static Electricity. GIGABYTE Motherboards Also Feature Special Anti-Surge ICs That Protect Your Motherboard, And Your PC From Any Surge In Power Delivery That May Occur, Helping To Ensure That Your PC Is Equipped To Deal With Any Potentially Irregular And Inconsistent Power Delivery.
