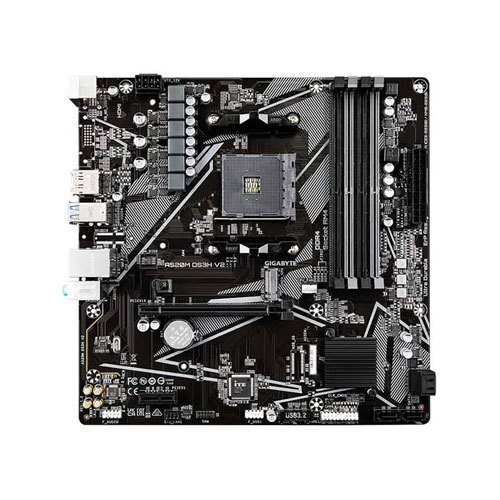

Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard

Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
-5 %
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard
  • Stock: In Stock
  • Model: A520M DS3H V2
Gigabyte Gigabyte
Based on 0 reviews. - Write a review

Best Promise Price

10,000৳
10,530৳
EMI starts at 3,507৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Chipset - AMD A520
    • Sockets Supported - AM4
      Supported CPU - Support for AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
    • Generation - Not Applicable
    • Memory Slot - 4
    • Memory Max. - 128GB
View more info...
Specification
Basic Information
Supported CPU Support for AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Chipset AMD A520
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Memory Specifications
Memory Type DDR4
Slots 1 x PCI Express x16 slot, integrated in the CPU:
Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Supported Memory Type Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max. Memory 128GB
Connector & Ports
USB (s) CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDsc
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Supporting for RAID 0, RAID 1, and RAID 10
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Graphics
Graphics Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB
Others Information
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 year
Description

Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard

The Gigabyte A520M DS3H V2 DDR4 Ultra Durable AMD AM4 Motherboard is an excellent choice for building a reliable and efficient desktop system. Engineered with AMD’s A520 chipset, this motherboard is designed to support a wide range of powerful processors, including the AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series CPUs, making it an ideal solution for gamers, content creators, and professionals looking for high performance at an affordable price. This Micro-ATX motherboard offers an outstanding blend of durability and functionality. It comes equipped with four DDR4 DIMM slots, supporting up to 128GB of memory with speeds that can reach up to 4733MHz (overclocked), ensuring seamless multitasking and fast data processing. The dual-channel memory architecture is perfect for users who demand high-speed operations, especially when running multiple applications or handling resource-intensive tasks like video editing, 3D modeling, and gaming. The Gigabyte A520M DS3H V2 motherboard features an M.2 slot that supports both SATA and PCIe 3.0 x4/x2 SSDs, enabling rapid data access and faster boot times. Additionally, with four SATA ports, users can easily expand their storage capacity with traditional hard drives or SSDs for ample data storage and management. For connectivity and expansion, this motherboard offers a PCIe 3.0 x16 slot for a dedicated graphics card, making it an excellent option for gamers or professionals requiring enhanced graphics performance. It also includes a PCIe 3.0 x1 slot for additional expansion cards. While there is no multi-GPU support, the board’s integrated graphics capabilities, when paired with compatible AMD processors, ensure smooth and responsive visual performance for general computing tasks. In terms of network and connectivity, the Gigabyte A520M DS3H V2 is equipped with a Realtek GbE LAN chipset, offering 1Gbps Ethernet for fast and stable internet connectivity, ideal for online gaming, video streaming, and file transfers. The board also supports high-quality audio with the Realtek Audio CODEC, providing 7.1-channel surround sound to enhance your entertainment experience. The back panel I/O provides a range of connectivity options, including four USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports for fast data transfer. The HDMI and DisplayPort outputs allow easy connection to modern displays, providing sharp visuals and high-definition content playback. Designed with Gigabyte's Ultra Durable technology, the A520M DS3H V2 motherboard ensures longevity and protection from environmental factors such as humidity, electrostatic discharge, and power surges. It is backed by a 3-year warranty, offering peace of mind and reliability for users looking for a durable and robust system. the Gigabyte A520M DS3H V2 is a versatile and budget-friendly motherboard that doesn’t compromise on performance. Its support for the latest AMD Ryzen processors, fast memory, and ample expansion options make it an ideal choice for those building a high-performance desktop on a budget. Whether you're building a gaming rig, a multimedia workstation, or a general-purpose PC, this motherboard offers the perfect balance of power, efficiency, and durability.

Key Features:

  • Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors.
  • Four DDR4 DIMM slots, up to 128GB of memory, and speeds up to 4733MHz (overclocked).
  • M.2 slot for high-speed SSDs and four SATA ports for additional storage.
  • Realtek GbE LAN and 7.1-channel audio for excellent network and sound quality.
  • HDMI and DisplayPort for high-definition video output.
  • Ultra Durable technology for long-lasting reliability.
Quick Compare

Buy Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard from Onix Computer

In Bangladesh, you can get original Gigabyte A520M DS3H V2 DDR4 ULTRA DURABLE AMD AM4 Motherboard From Onix Computer. We have a large collection of the latest Gigabyte Motherboard to purchase for your Desktop PC Order Online Or Visit your Nearest Onix Computer Shop to get yours at the lowest price. The Gigabyte A520M DS3H V2 Motherboard comes with 3 years of warranty.
