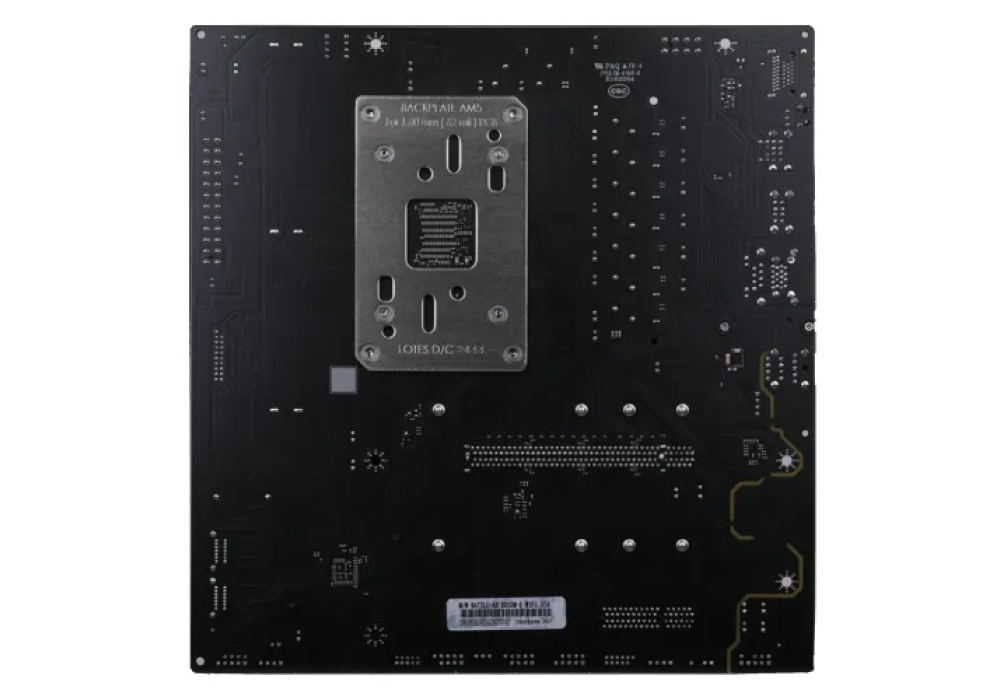

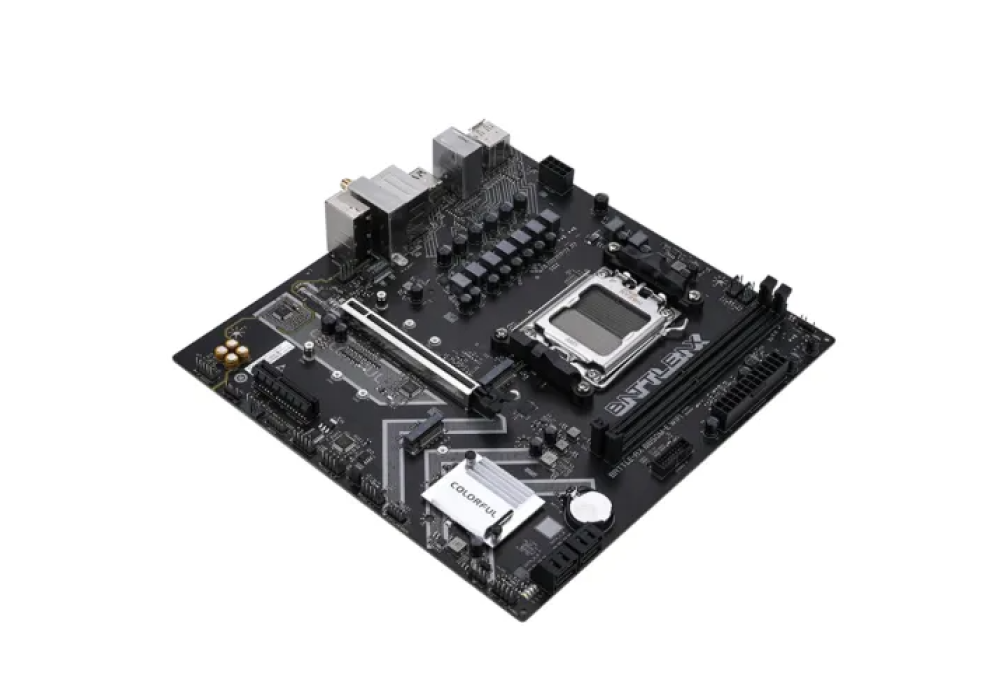

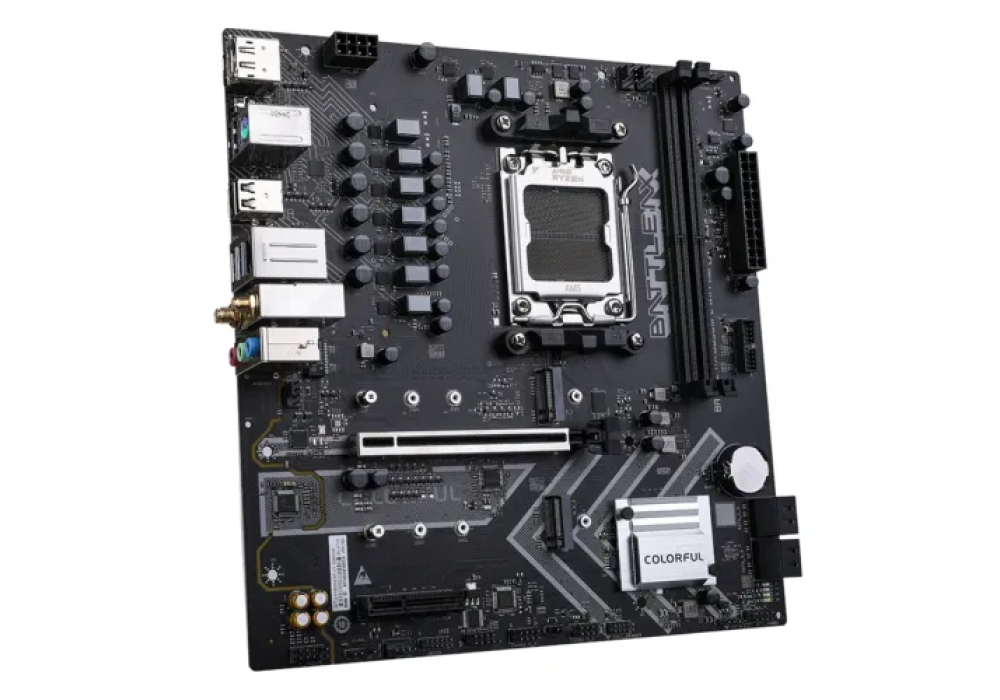

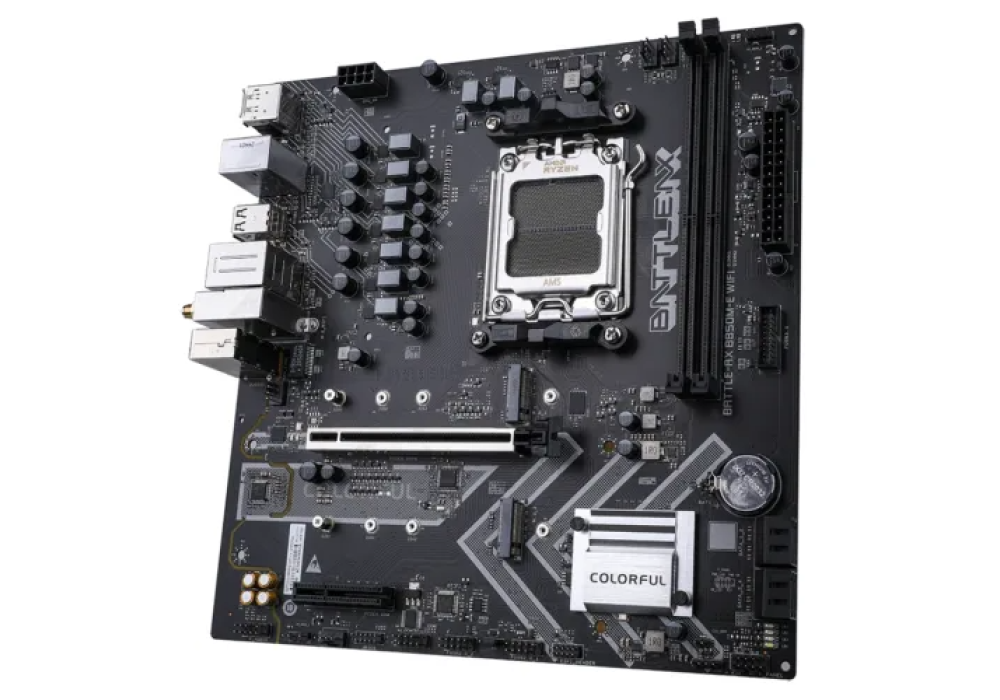

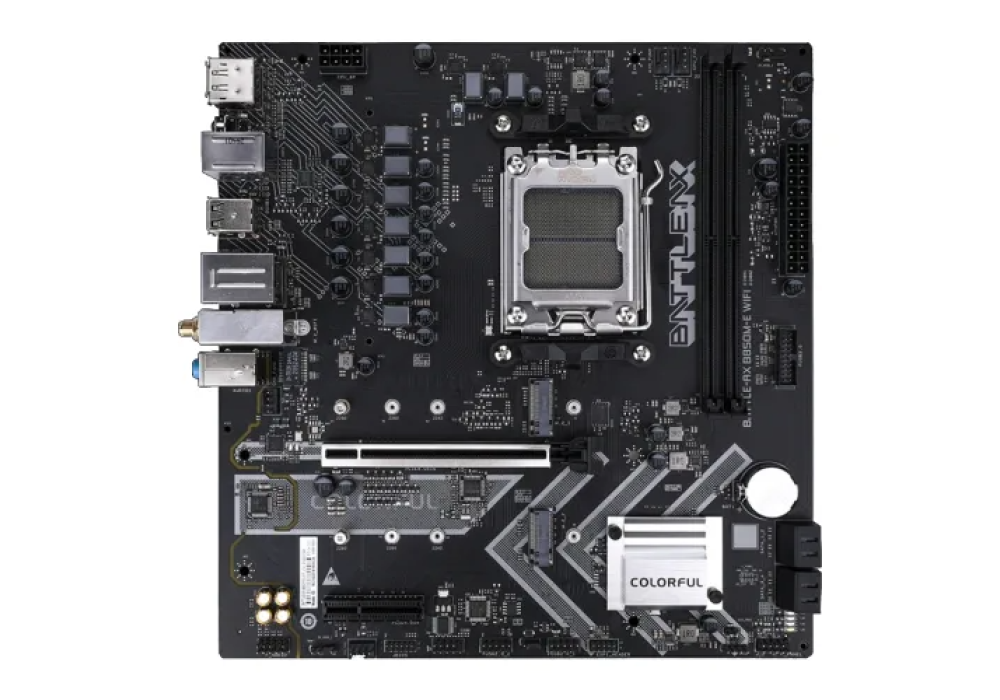

- Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard
- Stock: In Stock
- Model: BATTLE-AX B850M-E WIFI V14
- Supported CPU: AMD Ryzen 7000/8000/9000 series for Socket AM5
- Form Factor: M-ATX
- Memory Max.: 96GB
- Ram Type: DDR5
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard |
| Chipset | AMD B850 |
| BIOS | 256M UEFI, support multiple languages |
| Form Factor | M-ATX 244mm x 235 mm |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Expansion Slots | |
| PCI | 1×PCIe 4.0 x16 slot 1×PCIe 4.0 x4 slot |
| M.2 Socket | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 RAID with SATA or M.2 NVMe hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) - M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (* Is it supported PCIe 5.0 is related to the CPU used with the motherboard) |
| Memory | |
| Slot | 2 x DIMM |
| Supported Memory | Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support EXtended Profiles for Overclocking (EXPO) memory technology - Supports dual channel memory technolog |
| Memory Type | DDR5 |
| Maximum Memory | up to 96 GB of memory (a single socket can support up to 48 GB of memory) |
| Connector & Ports | |
| HDMI | 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |
| Display Port (s) | 1×DP 1.2 interface, supporting up to 4K 60Hz resolution |
| USB (s) | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 5Gbps Type-A interfaces |
| LAN Port (s) | 1×Gigabit network interface RTL8111K 1000M LAN |
| Wireless Communication module | WiFi 6 |
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |

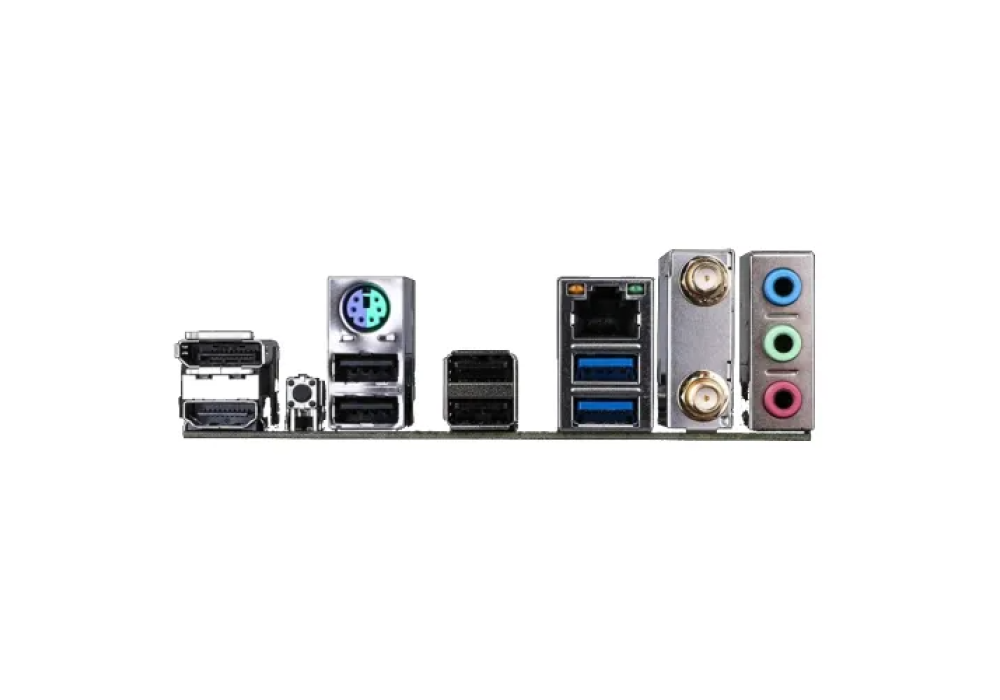

| Internal I/O Ports | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution -1个PS/2 interface -1×Gigabit network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board: -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×CPU fan pin -2×System fan pins -1×water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| RAID | supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices |
| Warranty Information | |
| Warranty | 03 years |
Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard – Powerful AMD Ryzen Platform with Built-In Wi-Fi
The Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard is a high-performance, compact foundation for AMD Ryzen 7000-series PCs. Built on the modern AM5 socket and supporting DDR5 memory, this board delivers faster responsiveness, higher bandwidth, and future-ready scalability. Its integrated Wi-Fi adds seamless wireless connectivity, while the M-ATX form factor keeps your build clean and space-efficient. Designed with reliable power delivery, enhanced cooling features, and ample expansion options, the BATTLE-AX B850M-E WIFI V14 is ideal for gamers, creators, and everyday users looking for strong performance and versatile connectivity in a mid-range motherboard.
Features of Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard
-
AM5 socket with support for AMD Ryzen 7000/7000X series CPUs
-
DDR5 memory support for high-speed performance
-
Built-in Wi-Fi for wireless internet connectivity
-
M-ATX form factor for compact and efficient builds
-
PCIe 4.0 slots for graphics and expansion cards
-
M.2 SSD support and USB 3.x connectivity
Modern AMD Ryzen Compatibility
This motherboard is engineered to support AMD’s latest Ryzen processors, allowing you to take full advantage of improved multi-core performance, power efficiency, and next-gen gaming and productivity workflows.
Space-Saving Design with Expansion Flexibility
The M-ATX layout strikes a balance between compact builds and expansion capability, offering PCIe and M.2 slots for graphics cards, fast storage, and peripherals without sacrificing performance.
Why Choose Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard?
Choose this motherboard for a powerful and future-proof AMD system that combines DDR5 memory support, integrated Wi-Fi connectivity, and robust performance. It is an excellent choice for gamers, creators, and general PC builders who want a reliable AM5 platform with modern features.
Benefits of Colorful BATTLE-AX B850M-E WIFI V14 DDR5 AM5 M-ATX Motherboard
-
Supports latest AMD Ryzen CPUs with DDR5
-
Built-in Wi-Fi for convenient wireless networking
-
Fast PCIe 4.0 and M.2 storage support
-
Compact and versatile M-ATX design
-
Reliable performance for gaming and productivity
