- Stock: Out Of Stock
- Model: H310MHP
- Chipset - Intel H310
- Generation - 8th/9th
- Memory Max. - 32GB
- Memory Slot - 2
Key Features | |
Form Factor | Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L ) |
Basic Information | |
Supported CPU | Socket 1151 for 9th / 8th Gen Intel® Core, Pentium and Celeron processors Maximum CPU TDP (Thermal Design Power): 95Watt * Please refer to www.biostar.com.tw for CPU support list. |
Chipset | Intel H310 |
Memory Specifications | |
Memory Type | DDR4 |
Motherboard | |
Audio | INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP AUDIO CODEC ALC887 7.1 Channels, High Definition Audio Support HD Audio |
External I/O Ports | 1x PS/2 Mouse Port 1x PS/2 Keyboard Port 1x HDMI Port 1x VGA Port 1x LAN Port 4x USB 2.0 Port 2x USB 3.2(Gen1) Port 3x Audio Jack |
Internal I/O Ports | 4x SATA III Connector 1x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 1x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x COM Port Header |
LAN | RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
Slots | 2x PCIe 2.0 x1 Slot 1x PCIe 3.0 x16 Slot |
Supported Storage | 4 x SATA III Connectors (6Gb/s) |
USB Port | 4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal header) 6x USB 2.0 port (4 on rear I/Os and 2 via internal header) |
Physical Specification | |
Others | ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide FEATURES BIO-FLASHER |
Dimensions | 23.6cm X 20.8cm ( W X L ) |
Supported Apps/ Software | Supports Windows 7/ 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. |
Warranty Information | |
Warranty | 3 Years |

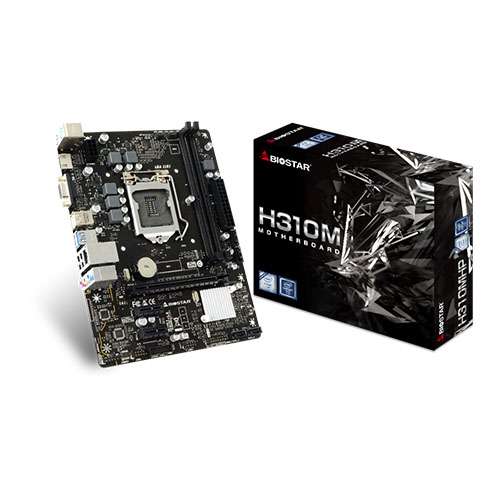

Biostar Intel Chipset H310MHP Socket Motherboard
Intel H310 chipset
The Intel® H310 chipset is a single-chipset design to support socket 1151 Intel® 8th generation Intel® Core™ processor-based platform. Provides excellent performance and increased bandwidth and stability. The PC platform features improved adaptive performance that adds speed when you need it. When combined with advanced system responsiveness, the platform delivers the ultimate PC experience.
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
Integrated HDMI with HDCP
Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality.
PCIe Gen 3.0
PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.
SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.
Dual DDR4
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.
USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
100% Solid Caps
With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.
HDMI
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
