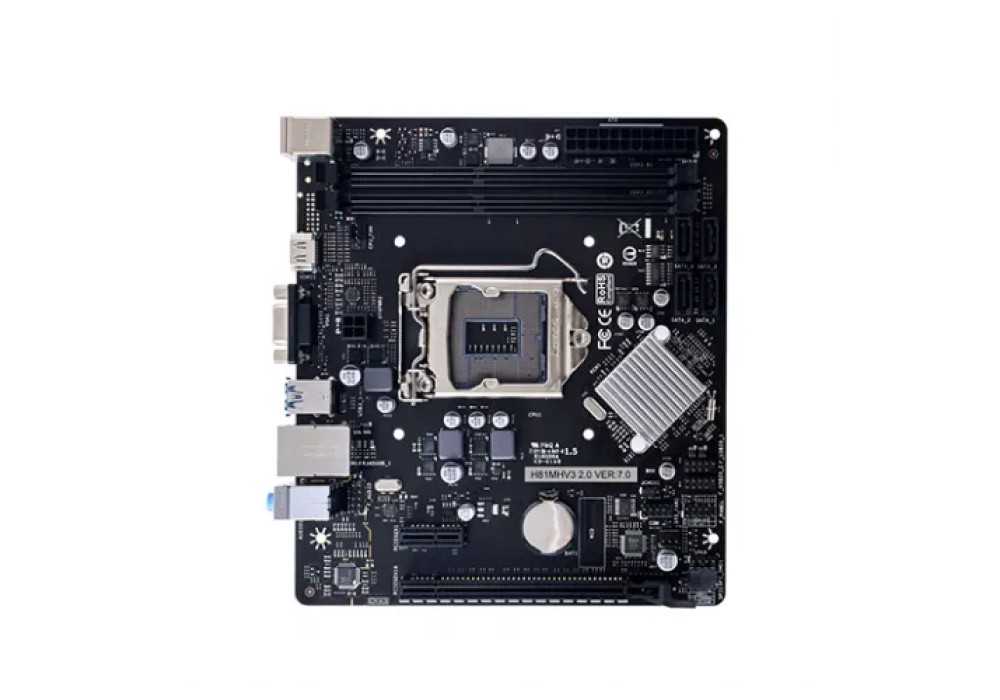

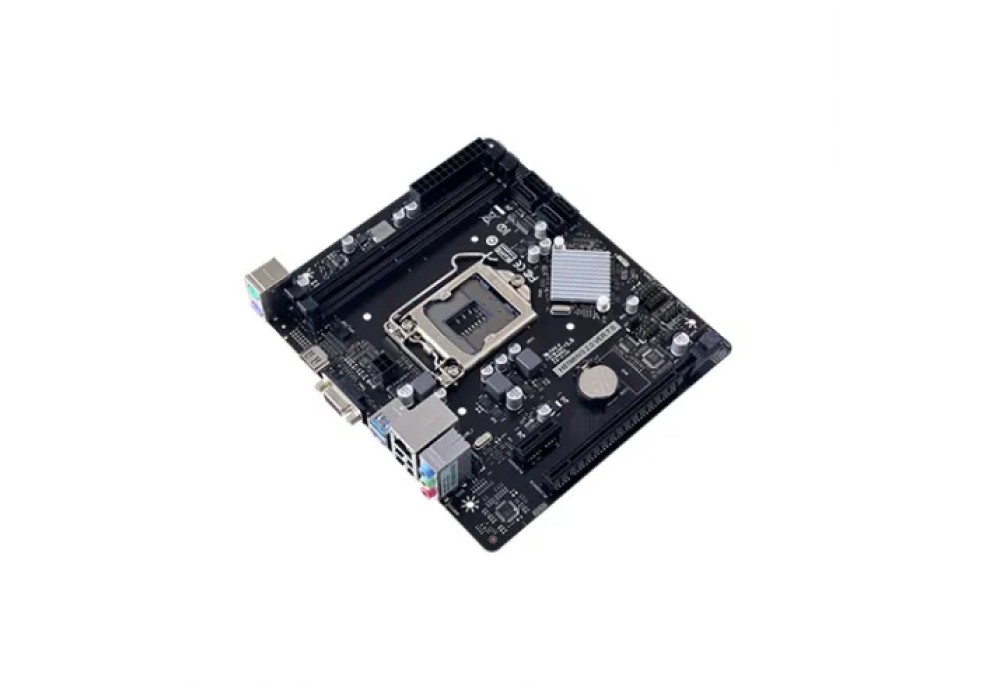

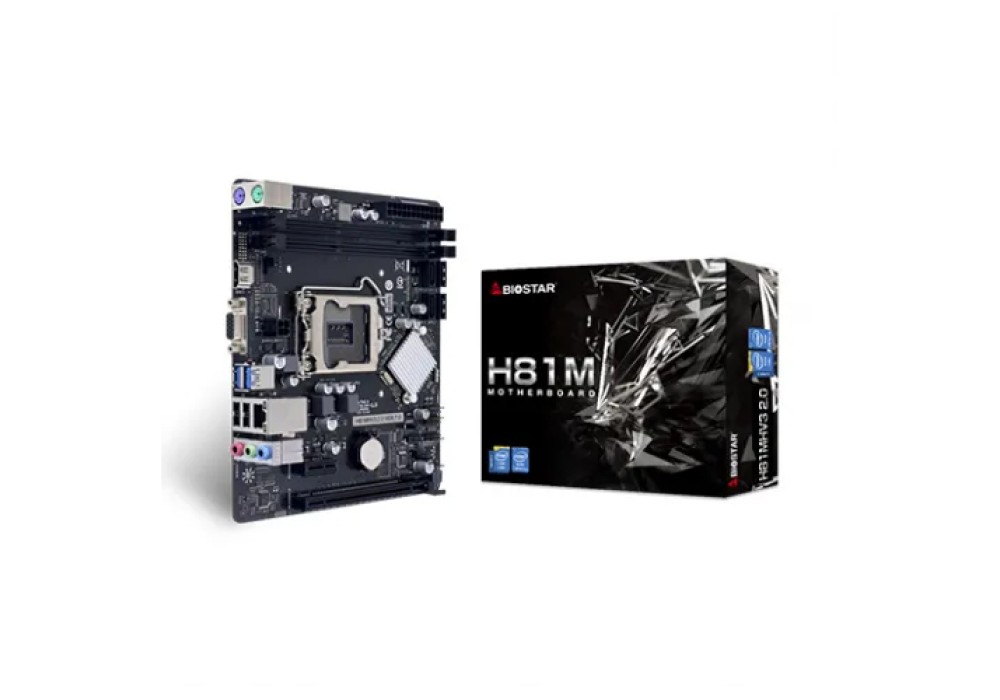

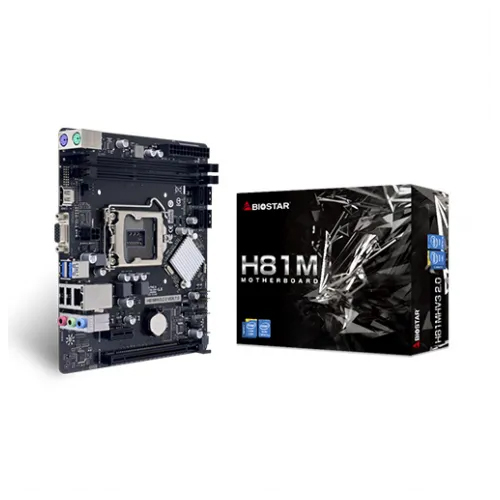

Biostar H81MHV3 Intel 4th Gen Motherboard

Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
Biostar H81MHV3 Intel 4th Gen Motherboard
  • Price: 5,400৳
  • Stock: In Stock
  • Brand: BIOSTAR
  • Model: H81MHV3
  • Product ID: 3622
  • SKU: 95425
5,400৳
EMI starts at 1,894৳/month. View all 25 banks EMI plans >

Key Features

    • Chipset - Intel H81
    • Generation - 4th
    • Memory Max. - 16GB
    • Memory Slot - 2
অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356
Key Features
Form Factor Micro ATX Form Factor
Basic Information
Supported CPU Intel Core™ I7 LGA 1150 Processor
Intel Core™ I5 LGA 1150 Processor
Intel Core™ I3 LGA 1150 Processor
Intel Pentium® LGA 1150 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
Chipset
Chipset Intel H81
Motherboard
Audio Realtek ALC662 6-Channel HD Audio

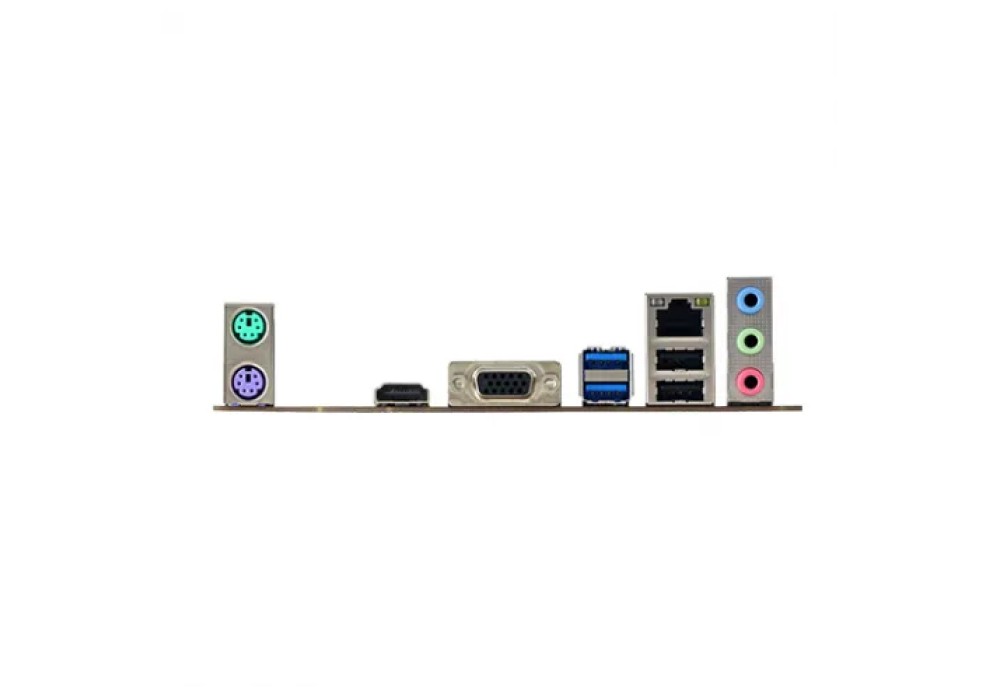

External I/O Ports 1 X PS/2 Mouse 1 X PS/2 Keyboard 2 X USB 3.0 Port 2 X USB 2.0 Port 1 X HDMI Connector 1 X VGA Port 1 X LAN Port 3 X Audio Jacks
Internal I/O Ports 2 X USB 2.0 Header 2 X SATA III Connector (6Gb/S) 2 X SATA II Connector (3Gb/S )
1 X Front Audio Header
1 X Front Panel Header
1 X CPU Fan Connector
1 X System Fan Connector
1 X COM Port Header
LAN Realtek RTL8111G - 10/100/1000Mb/S Controller
Memory Support Dual Channel DDR3 1600/1333/1066 MHz 2 X DDR3 DIMM Memory Slot Max. Supports Up To 16GB Memory
Slots 1 X PCI-E 2.0 X16 Slot
1 X PCI-E 2.0 X1 Slot
Supported Storage 2 X SATA III Connectors (6Gb/S) 2 X SATA II Connector S (3Gb/S)
USB Port 2 X USB 3.0 Port 2 X USB 2.0 Port 2 X USB 2.0 Header

Biostar H81MHV3 Intel 4th Gen Motherboard

The Latest Intel H81 Express Chipset Is A Single-Chipset Design That Supports Socket LGA1150 4th Generation Intel Core I7/I5/I3/Pentium/Celeron Processors. It Natively Supports Up To Two USB 3.0 Ports For Up To 10 Times Faster Transfer Rates Than Previous USB 2.0. Intel H81 Express Chipset Also Supported IGPU Such As Intel Processors With DX11 Graphics Allow You Enjoy The Higher Frame Rate In Gaming Experience.

Intel LGA 1150 4th Generation Intel Core Processor Support

The 4th Generation Intel® Core™ Processors Are Based On 4th Generation Intel® Core™ Processor Architecture, With The Latest 22nm Process To Maximize The Processor Platform. Based On The New LGA 1150 Socket, 4th Generation Intel Core Processors With Graphics With DX11.1 & OCL1.2 Cores , The Overall Performance Will Meet Your Demand.

HD Audio

Provides High Quality Sound With Minimal Loss Of Audio Fidelity.

DX11.1

Direct3D 11.1 Enables Direct3D 10 APIs And Direct3D 11 APIs To Use One Underlying Rendering Device. And It Allows Developers To Achieve A High Speed, Fully Conformant Software Rasterizer.

Integrated HDMI With HDCP

Onboard HDMI Connector Allows Full Video & Audio Support. It Has Industry-Leading High Definition Video Quality

SmartSpeedLAN

SmartSpeedLAN Is A Free Software Application Which Monitors And Manages Your PC's Network Behavior. With User-Friendly GUI, It Allows You To Select And Prioritize Different Types Of Network Traffic, Including Gaming, Media Streaming, Communications Or Web Surfing.You Can Also Set Any Specific Applications, Choosing To Prioritize Or Block Accordingly. SmartSpeedLAN Can Feature Automatic Management Options That Use Adaptive Networking Intelligence To Ensure That You Are Getting The Best Online Experience Possible.

USB 3.0

Experience Fastest Data Transfers At 5 Gbps With USB 3.0--The New Latest Connectivity Standard. Built To Connect Easily With Next-Generation Components And Peripherals, USB 3.0 Transfers Data 10X Faster And Backward Compatible With Previous USB 2.0 Components.

Charger Booster

Charger Booster Is The Best And Efficient Charger Solution For Apple Devices Such As IPad, IPhone. Basically, Charger Booster Technology Is Able To Boost The Charging Time To Be More Efficiency And Faster Once Any Apple Goods Connecting To Our Motherboard. With Charger Booster Technology, You Are Able To Charge Your Apple Devices Up To 42 % Faster.

SATAIII 6Gbps

SATAIII 6Gbps Provides A Higher Bandwidth To Retrieve And Transfer HD Media. With This Super Speed Data Transfer, SATAIII Allows An Incredible Data Boost Which Is 2x Faster Than The SATA II.

Intel Smart Connect

Smart Connect Will Periodically Wake The Computer Is In Sleep State, The Things To Check For Updates And Information.

Intel Rapid Start

Rapid Start Is A Free Utility That Biostar Motherboard 8 Series Designed Simply To Install. Can Quickly Start To Make Rapid System Recovery From A Deep Sleep At About 5 Seconds.

Dual DDR3-1600

It Supports 2 Or 4 DIMM Slots DDR3 Memory That Features Data Transfer Rates Of DDR3 1600/1333. The Processor Support 2 Memory Channels And Setting The Memory Multiplier, Allows Selection Of The Channel Speed. These Clearly Uplift The Band Width And Boost The Overall System Performance.

Moistureproof Of PCB

The Popularity Of PC Usage And Working Environment Is Getting Deteriorating And Moist (Rural, Coastal, Etc.). The PCB Will Be Oxidizing Easily By Damp Or Absorbed Moisture, And Ionic Migration Or CAF (Conductive Anodic Filament) Will Be Generated. Moisture-Proof PCB Meets High Density And High Reliability Requirements For Moisture Proof..
