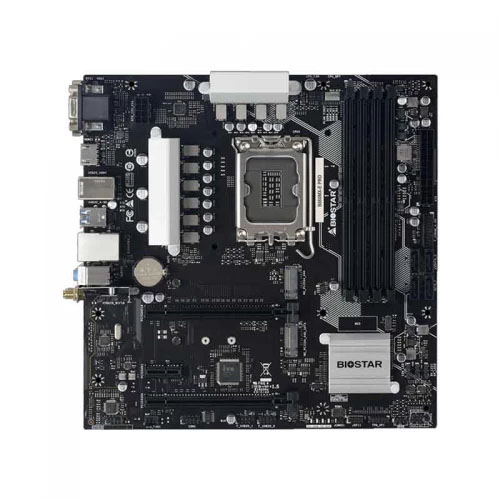

Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard

Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard
  • Stock: In Stock
  • Model: Biostar B660MX-E PRO Motherboard
BIOSTAR BIOSTAR
Based on 0 reviews. - Write a review
12,500৳
EMI starts at 4,383৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
    • Chipset - Intel B660
    • Generation - 12th/13th
    • Memory Max. - 128GB
    • Memory Slot - 4
View more info...
Specification
Key Features
Form Factor Micro ATX
Basic Information
Supported CPU 12th / 13th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors
Sockets Supported: LGA1700
Chipset Intel B660
Memory Specifications
Memory Type DDR4
Motherboard
Audio (ALC897) 7.1 Channels, High Definition Audio, (No Front)
External I/O Ports 1 X WIFI Antenna Port
1 X PS/2 Keyboard/ Mouse Port
1 X HDMI
1 X VGA+DVI Port
2 X USB 3.2 (Gen1) Ports
4 X USB 2.0 Ports
1 X LAN Port
3 X Audio Jack
Graphics Supports DX12
Supports HDCP
Internal I/O Ports 4 X SATA III Connector (6Gb/S)
1 X M.2 (E Key) Socket : Supports 2230 Type Wi-Fi & Bluetooth
Module And Intel CNVi
2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports)
1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports)
1 X 8-Pin Power Connector
1 X 24-Pin Power Connector
1 X CPU Fan Connector
1 X System Fan Connector
1 X Front Panel Header
1 X Front Audio Header
1 X Internal Stereo Speaker Header
1 X Clear CMOS Header
1 X COM Port Header
1 X TPM Header
* M.2 (E Key) Wi-Fi Card Is Not Provided
LAN Intel I219V
10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability
Memory Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/
3200/ 3600(OC)/ 3800(OC)/ 4000(OC)
2 X DDR4 DIMM Memory Slot, Max. Supports Up To 64 GB Memory
Each DIMM Supports Non-ECC 4/8/16/32GB DDR4 Module
Support Intel Extreme Memory Profile (XMP) Memory Modules
Slots 1 X PCIe 3.0 X1 Slot
1 X PCIe 4.0 X16 Slot
Supported Storage Total Supports 1x M.2 Socket And 4x SATA III (6Gb/S) Ports
4 X SATA III Connector (6Gb/S) : Supports AHCI
1 X M.2 (M Key) Socket (M2_PCIEG3_32G-SATA):
Supports M.2 Type 2240 /2260 /2280 SSD Module
Supports PCI-E 3.0 X4 (32Gb/S) & SATA SSD
USB Port 4 X USB 3.2 (Gen1) Ports (2 On Rear I/Os And 2 Via Internal Headers)
8 X USB 2.0 Ports(4 On Rear I/Os And 4 Via Internal Headers)
Connector & Ports
HDMI Supports HDMI 4K2K
Physical Specification
Dimensions 23.6cm X 20.8cm ( W X L )
Warranty Information
Warranty 3 Years
Description

Biostar B660MX-E PRO DDR4 LGA1700 Socket Motherboard

Biostar B660MX-E Motherboard Supports 12th Generation Intel Core™ Processor. It has Intel B660 single chip architecture. Biostar B660MX-E 12th Gen Intel Motherboard also Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC) up to 64 GB Memory, Supports PCIe 4.0, Supports PCIe M.2 3.0 (32Gb/s), Supports HDMI 4K2K, Supports USB 3.2 Gen1, Support WiFi 6 & 6E module (No WiFi card included). Biostar B660MX-E 12th Gen Intel Motherboard Delivers Stable Power With 100% Fixed Voltage. Ensures All Critical Components Are Under Protected. Offers Excellent Precision, Performance And Reliability

Intel B660 Chipset

With the Intel® B660 chipset and the 12th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel B660 chipset provides you with the power and performance you need.

HDMI 4K2K

The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

DVI

DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself.

DX12

DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.

PCIe 4.0

PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.

USB 3.2 Gen1 Type-A

USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
