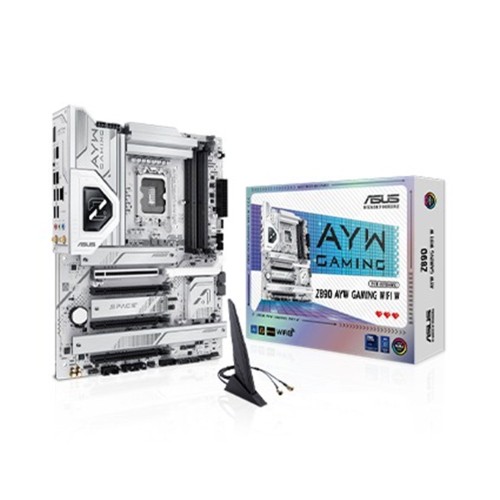

Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard

Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
  • Stock: In Stock
  • Model: Z890 AYW GAMING WIFI W
Asus Asus
Based on 0 reviews. - Write a review
44,500৳
EMI starts at 15,605৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • 1 x Realtek 2.5Gb Ethernet
  • Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • 4 x DIMM slots, max. 192GB, DDR5
  • Intel Z890 Chipset
View more info...
Specification
Basic Information
Supported CPU Supports Intel® Core™ Ultra Processors(Series 2),
LGA1851* Supports Intel® Turbo Boost Technology 2.0 and
Intel® Turbo Boost Max Technology 3.0
Chipset Intel Z890 Chipset
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front
panel is required to support 7.1 Surround Sound audio output.
Networking & Connectivity
Wireless Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to
the Wi-Fi module
External Features
Expansion Slots Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
I/O Port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®
with up to 30W PD/PPS Fast-charge )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) Header
Other Features
Special Features ASUS 5X PROTECTION III:
DIGI+ VRM (- Digital power design with DrMOS)
LANGuard
Overvoltage protection
SafeSlot
Stainless-steel back I/O
ASUS Q-Design:
M.2 Q-Latch
PCIe Slot Q-Release
Q-Dashboard
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution:
M.2 heatsinks
VRM heatsinks design
ASUS EZ DIY:
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
Aura Sync:
Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support:
Support: up to 30W fast charging and USB Wattage Watcher
Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Compatible with PD3.0 and PPS
Connector & Ports
USB (s) Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)***
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports***
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
*** USB_E1 port, USB_E2 port, USB_E3 port and
USB_E4 port share the bandwidth.
USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Supported Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe
RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot
from CPU only supports RAID 0/1/5.
Graphics
Graphics 1 x DisplayPort**
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
****VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the
DisplayPort on the back I/O panel or to a discrete graphics card.
Software
Operating System Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Network
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Warranty Information
Warranty 03 years
Description

Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard

The ASUS Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard is a cutting-edge platform tailored for high-performance gaming and computing. Featuring the powerful Intel Z890 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA1851 socket, enabling fast, efficient multitasking with advanced Intel® Turbo Boost Technology 2.0 and 3.0. This motherboard comes with four DIMM slots for DDR5 memory, supporting up to 192GB and reaching speeds of 9066+ MT/s (overclocked). Enhanced memory profiles, including Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III), make it a versatile choice for high-speed, reliable performance. In terms of storage, the ASUS Z890 AYW offers flexibility with four M.2 slots and four SATA 6Gb/s ports, providing expansive storage options with PCIe Gen 5 and Gen 4 M.2 slots for faster data access. Graphics support includes DisplayPort connectivity, capable of 4K at 60Hz or 120Hz (on USB Type-C®), based on the DisplayPort 1.4 standard. It also features Realtek 7.1 Surround Sound Audio for immersive sound quality, with premium audio capacitors and multi-streaming capabilities, ideal for a fully engaging gaming or multimedia experience. Networking is handled by built-in Wi-Fi 6 and a 2.5Gb Ethernet port with ASUS LANGuard, ensuring robust, fast connectivity. For cooling, it includes multiple fan headers, VRM heatsinks, and a customizable Aura Sync RGB setup for enhanced thermal control and aesthetics. The motherboard's special features, like the ASUS 5X Protection III and easy-to-use BIOS FlashBack™, make it both durable and user-friendly. Packed in an ATX form factor, the ASUS Z890 AYW GAMING WIFI W is an ideal choice for gamers and power users seeking top-tier performance, connectivity, and expandability. Backed by a 3-year warranty, this motherboard is built for longevity and peak performance in demanding setups.

 Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard Features

  • Processor Compatibility: Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket, along with Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 for optimal processing power.
  • High-Speed Memory: Equipped with 4 DIMM slots for DDR5 memory, supporting up to 192GB and 9066+ MT/s speeds (overclocked), with Intel® Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) for fine-tuned performance.
  • Expansive Storage Options: Features 4 M.2 slots (Key M) supporting PCIe Gen 5 and Gen 4, plus 4 SATA 6Gb/s ports. Includes Intel® Rapid Storage Technology with RAID support for enhanced storage flexibility.
  • Graphics and Display: Provides a DisplayPort capable of 4K@60Hz or 4K@120Hz via USB Type-C®, perfect for high-resolution displays and gaming.
  • Audio Quality: Realtek 7.1 Surround Sound High Definition Audio CODEC with premium capacitors, jack-detection, and multi-streaming for immersive audio performance.
  • Networking & Connectivity: Integrated Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth® v5.3 support, along with a Realtek 2.5Gb Ethernet port enhanced with ASUS LANGuard for fast, reliable connectivity.
  • Cooling System: Includes multiple fan headers, VRM and M.2 heatsinks, and support for ASUS Aura Sync, ensuring efficient thermal management with customizable lighting options.
  • Expansion Slots: One PCIe 5.0 x16 slot and three PCIe 4.0 x16 slots (x4 and x1 modes) for versatile graphics and expansion needs.
  • USB Ports and Fast Charging: Multiple USB ports, including USB 20Gbps Type-C® with Power Delivery (PD) fast charging (up to 30W), plus headers for additional USB connectivity.
  • Durability and Ease of Use: Equipped with ASUS 5X Protection III, BIOS FlashBack™, Q-Design for easy component installation, and a pre-mounted I/O shield for added durability and convenience.

With these advanced features, the ASUS Z890 AYW is designed for power users and gamers seeking top-notch performance and expandability.
