- Stock: In Stock
- Model: X870 AYW GAMING WIFI W
EMI starts at 15,605৳/month.
- Supported CPU: AMD Ryzen 9000/8000/7000 Series
- Form Factor: ATX
- Memory Max: 256GB
- RAM Type: DDR5
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOSc |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) |
| Memory Specifications | |
| Memory Type | DDR5 |
| Max Memory Size Supported | 256GB |
| Slots | 4 x DIMM |
| Supported Memory Type | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |

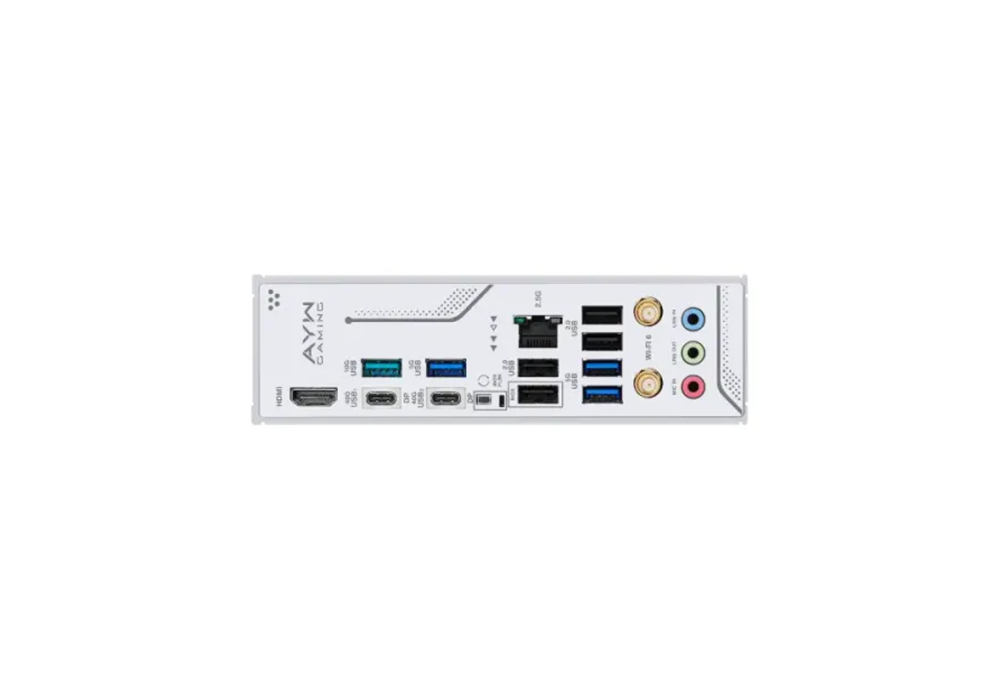

| USB (s) | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| Graphics | |
| Graphics | 1 x HDMI port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Others Information | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
| Warranty Information | |
| Warranty | 3 Years |

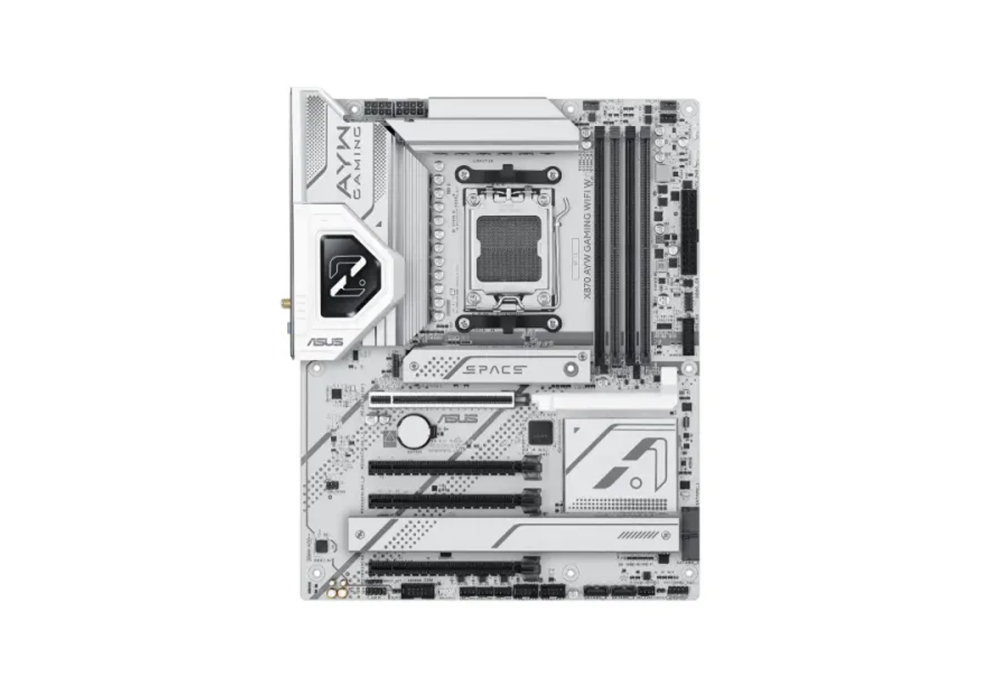

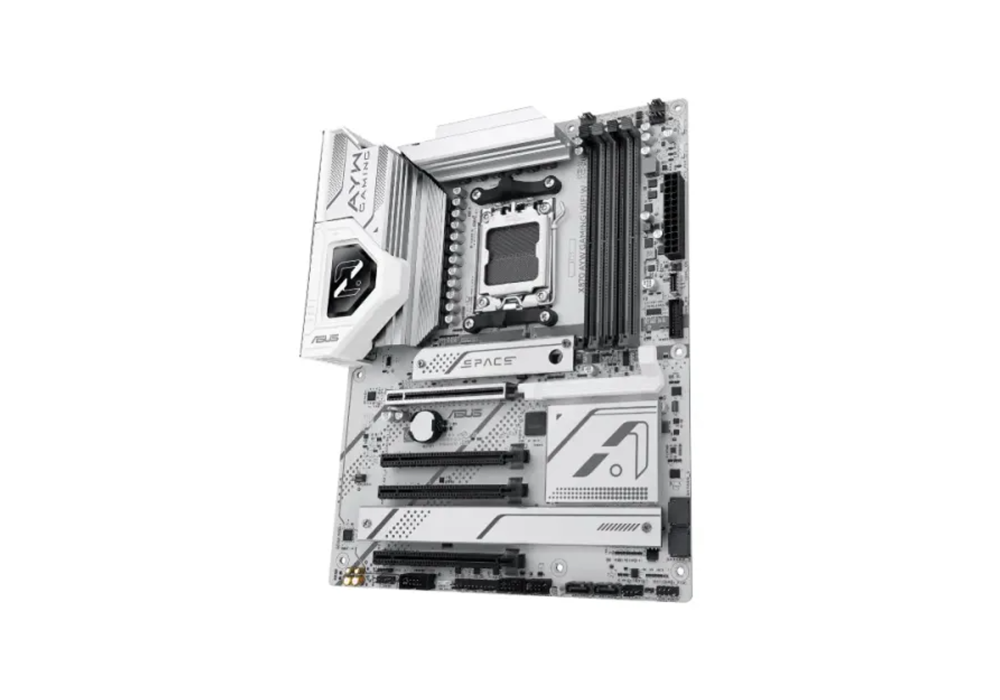

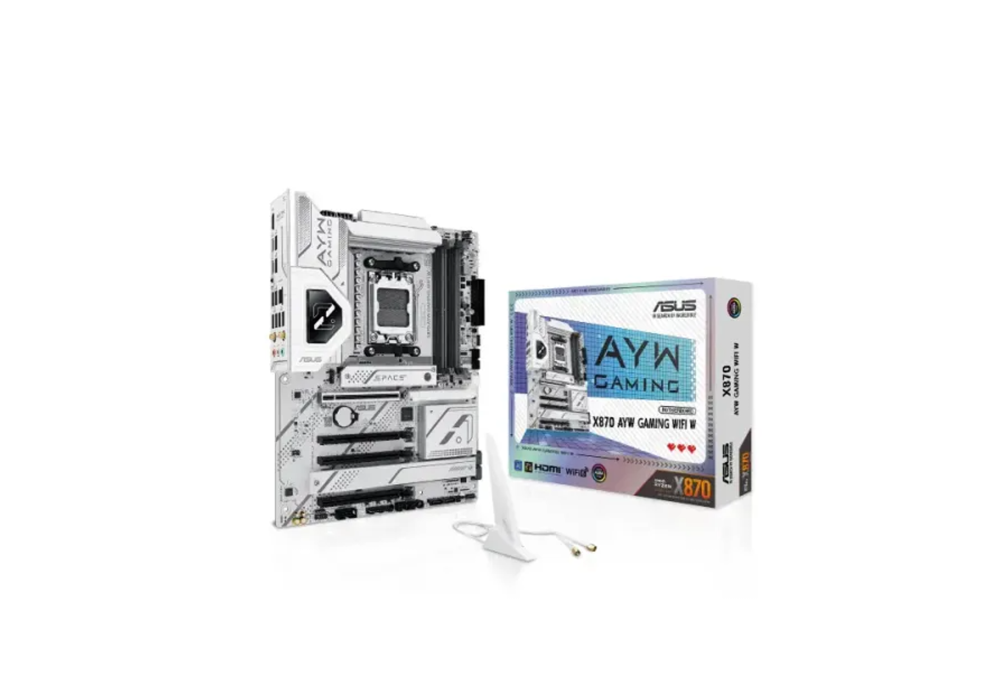

Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard – High-Performance AM5 Gaming Board
Are you a passionate gamer, a power user, or a PC builder looking for top-tier performance and upgrade flexibility? Look no further than the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard. Designed for the latest AMD Ryzen processors, this motherboard is packed with features that will take your gaming experience to the next level.
Experience Next-Level Performance
The Asus X870 AYW motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring powerful performance for all your gaming and multitasking needs. With DDR5 memory support up to 8000+ MT/s (OC), you can enjoy lightning-fast response times and improved efficiency, making lag a thing of the past.
Fast Storage and Connectivity
Equipped with triple M.2 slots, including a PCIe 5.0 M.2 slot for ultra-fast SSD performance, this motherboard provides ample storage options for gamers and content creators alike. With USB4 Type-C ports, Wi-Fi 6 wireless support, and 2.5Gb Ethernet, you can expect smooth online performance and seamless device compatibility.
Enhanced Features for Reliability
Enhanced with ASUS-exclusive features like Q-Design, Aura Sync RGB, 5X Protection III, and advanced cooling features, the Asus X870 AYW motherboard ensures long-term reliability, easy installation, and visually attractive customization. The high-quality Realtek 7.1 surround sound delivers an immersive audio experience, enhancing your gameplay and entertainment.
Why Choose OnixBD
When you purchase the Asus X870 AYW motherboard from OnixBD, you can rest assured that you are getting an authentic product at the best price. With fast delivery, expert build support, and unbeatable customer service, OnixBD is your go-to destination for all your gaming needs.
Product Benefits
Ultra-fast performance for gaming and productivity
Stable overclocking and efficient power delivery
Latest storage and connectivity standards
Durable design with long-lasting components
