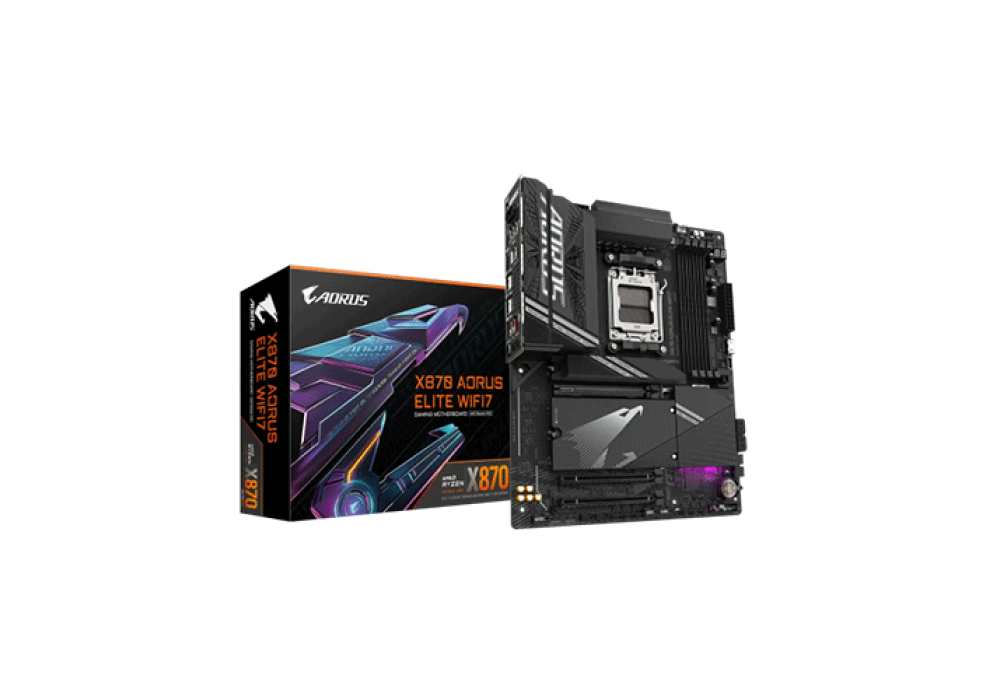

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard
-1 %
GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard
  • Stock: In Stock
  • Model: X870 AORUS ELITE WIFI7
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
45,000৳
45,500৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, Max 256GB
  • Features: Realtek 2.5GbE LAN, MediaTek Wi-Fi 7 MT7925
  • Graphics Output: 2 x USB4 (Type-C), 1 x HDMI
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU AMD Socket AM5, support for:
AMD Ryzen 9000, 8000, 7000 Series Processors
Chipset AMD X870
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Networking & Connectivity
Wireless MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Memory Specifications
Memory Type DDR5
Slots 4 DIMMs
Supported Memory Type Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Max. Memory up to 256 GB (64 GB single DIMM capacity) of system memory
Other Features
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Connector & Ports
HDMI 1 x HDMI port
USB (s) CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key,
type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000
Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type
22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
Audio Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Graphics
Graphics Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Others RAID:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Warranty Information
Warranty 3 Years
Description

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard

The GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard is a cutting-edge platform designed to maximize the performance of AMD Ryzen 9000, 8000, and 7000 Series processors. It features the powerful AMD X870 chipset, supporting advanced PCIe 5.0 capabilities, DDR5 memory, and comprehensive connectivity options. This motherboard supports up to 256GB of DDR5 memory, with overclocking potential of up to 8000 MT/s, making it ideal for gamers, content creators, and enthusiasts seeking top-tier performance. With dual PCIe x16 slots, including PCIe 5.0 for the latest graphics cards and NVMe SSDs, the X870 AORUS ELITE ensures high-speed data transfer and expandability. For storage, it boasts multiple M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs, delivering blazing-fast read/write speeds. The motherboard also supports RAID configurations for NVMe SSDs, including RAID 0, 1, 5, and 10 for high-performance storage setups. Equipped with advanced networking options, this board features a Realtek 2.5GbE LAN chip and built-in Wi-Fi 7 support, ensuring ultra-fast and stable internet connectivity. It also includes a MediaTek Wi-Fi 7 module with Bluetooth 5.4 compatibility, providing flexibility in wireless connections. Audio is powered by the Realtek ALC1220 CODEC, delivering high-definition sound with support for up to 7.1 channels. Customizable RGB lighting is supported through addressable RGB Gen2 LED headers, allowing users to personalize their setup. Additional features include GIGABYTE Control Center for easy system management, Q-Flash Plus for effortless BIOS updates, and Smart Backup for data protection. With a robust design and comprehensive features, the GIGABYTE X870 AORUS ELITE is an excellent choice for high-performance, future-ready builds.

GIGABYTE X870 AORUS ELITE WIFI7 DDR5 AMD AM5 ATX Motherboard Features

  • Support for AMD Ryzen Processors: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors, offering top-tier performance for demanding tasks and gaming.
  • Advanced Memory Support: Equipped with 4 DIMM slots, supporting DDR5 memory with overclocking speeds up to 8000 MT/s, and a maximum capacity of 256GB.
  • PCIe 5.0 Support: Includes a PCIe 5.0 x16 slot for the latest GPUs or NVMe SSDs, delivering faster data transfer and improved performance.
  • Wi-Fi 7 and Bluetooth 5.4: Integrated MediaTek Wi-Fi 7 module and Bluetooth 5.4 for ultra-fast wireless connectivity and reduced latency.
  • Multiple M.2 Slots: Four M.2 connectors with support for PCIe 5.0 and PCIe 4.0 SSDs, ensuring high-speed storage solutions and flexibility.
  • Comprehensive Connectivity: Features a range of USB ports, including USB4® Type-C®, USB 3.2 Gen 2, and USB 2.0/1.1, for fast data transfer and device support.
  • Realtek 2.5GbE LAN: Built-in Realtek 2.5GbE LAN for high-speed wired internet connections, ideal for gaming and data-heavy applications.
  • Advanced Audio System: Realtek ALC1220 CODEC with support for 7.1-channel high-definition audio, delivering immersive sound for entertainment and professional use.
  • RGB Customization: Offers addressable RGB Gen2 headers for customizable lighting, allowing users to personalize their gaming rigs.
  • Durable Design: Built with robust power delivery and cooling features, ensuring stability and efficiency during overclocking and high-performance workloads.
