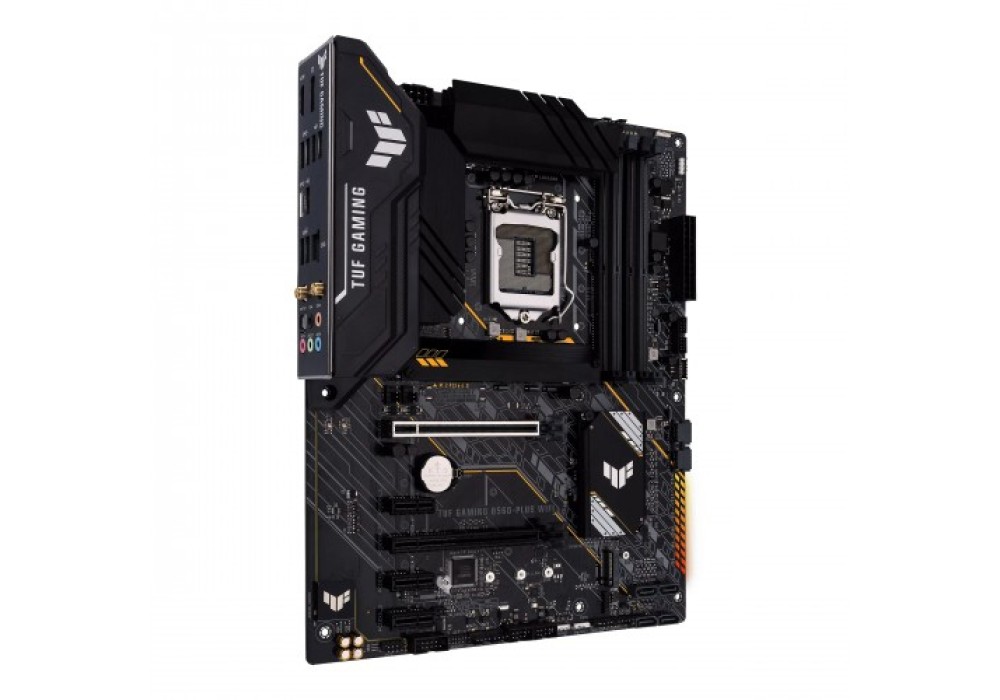

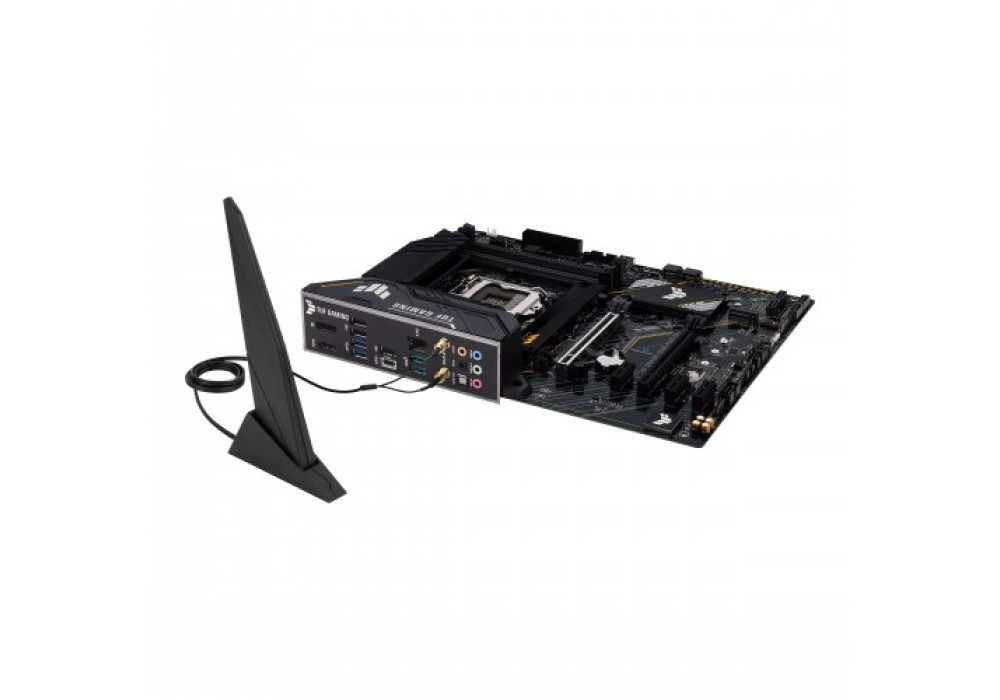

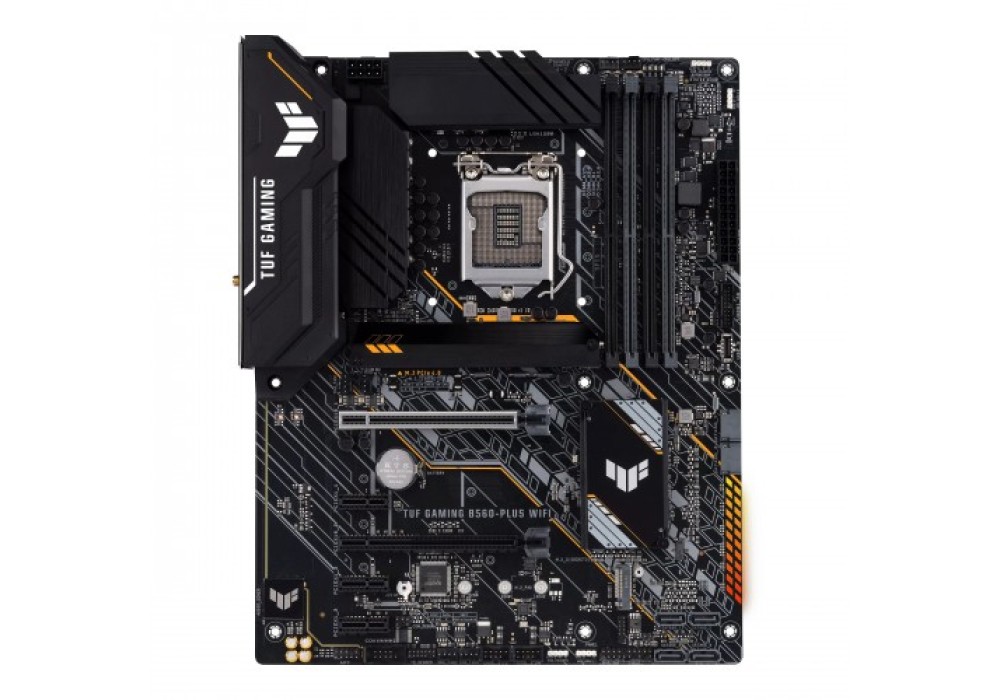

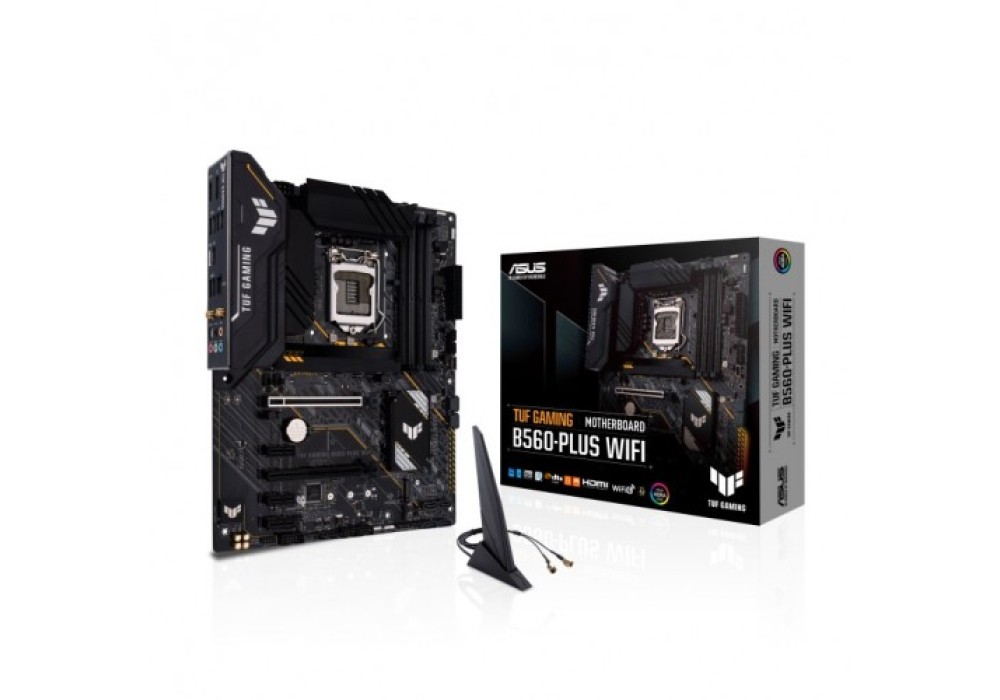

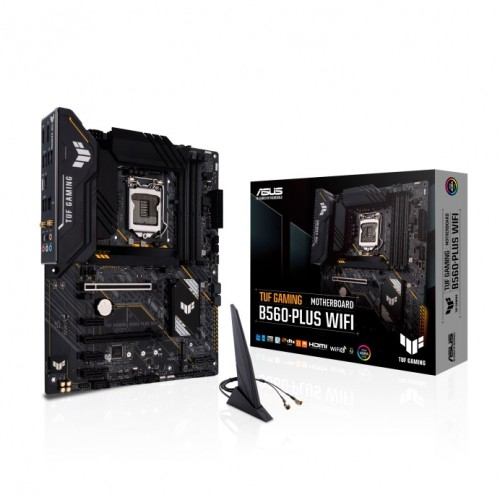

Asus TUF GAMING B560-PLUS WIFI 11th and 10th Gen ATX Motherboard

Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B560 Express Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX: 30.5cm x 23.4cm
Audio Realtek ALC897 7.1-Channel High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Graphics
Graphics 1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI 1.4/2.0
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively.
10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz
4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS OptiMem
Maximum Memory 128 GB (32 GB single DIMM capacity)
Expansion Slots
PCI Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
M.2 Socket Intel 11th Gen Processors
- M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 )
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset
- M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
Connector & Ports
HDMI 1 x HDMI 1.4/ 2.0
D-Sub (s) 1 x D-Sub
USB (s) 2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
4 x USB 2.0 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel I219-V 1Gb Ethernet
ASUS LANGuard
Supported Storage Intel 11th Gen Processors
- M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 )
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset
- M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports
Internal I/O Ports Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS jumper
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x 20-3pin System Panel header with Chassis intrude function
1 x M.2 slot (key E)
1 x Thunderbolt 4 header
Others Information
Special Features Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
Warranty Information
Manufacturing Warranty 3 Years

Asus TUF GAMING B560-PLUS WIFI 11th and 10th Gen ATX Motherboard

Asus TUF GAMING B560-PLUS WIFI Intel 10th and 11th Gen ATX Motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Asus TUF GAMING B560-PLUS WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Asus TUF GAMING B560-PLUS WIFI 11th Gen Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors.Asus TUF GAMING B560-PLUS WIFI 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
