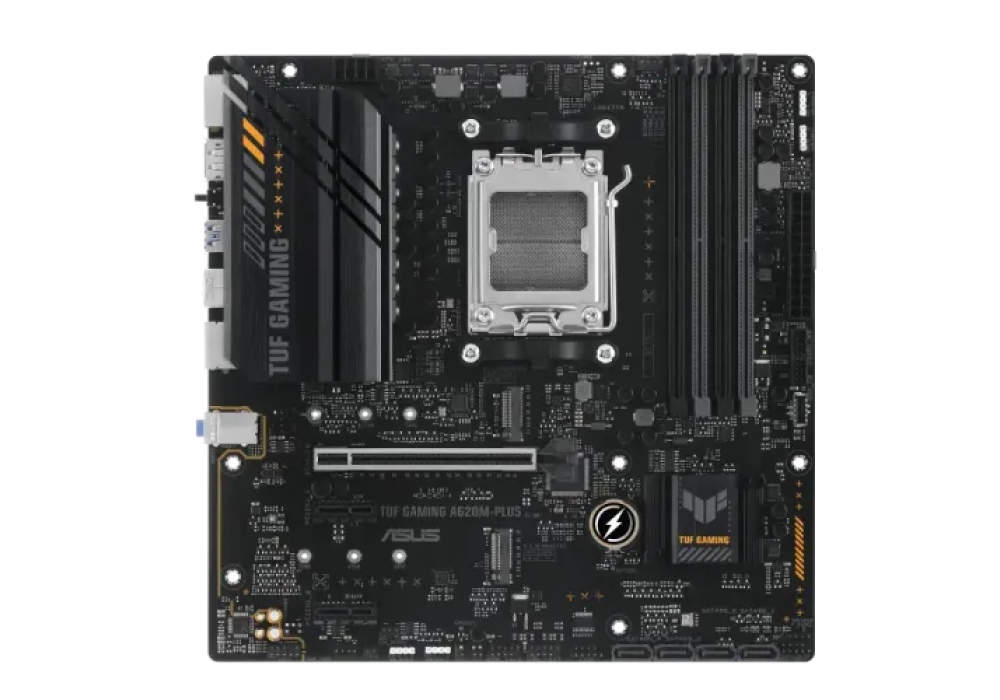

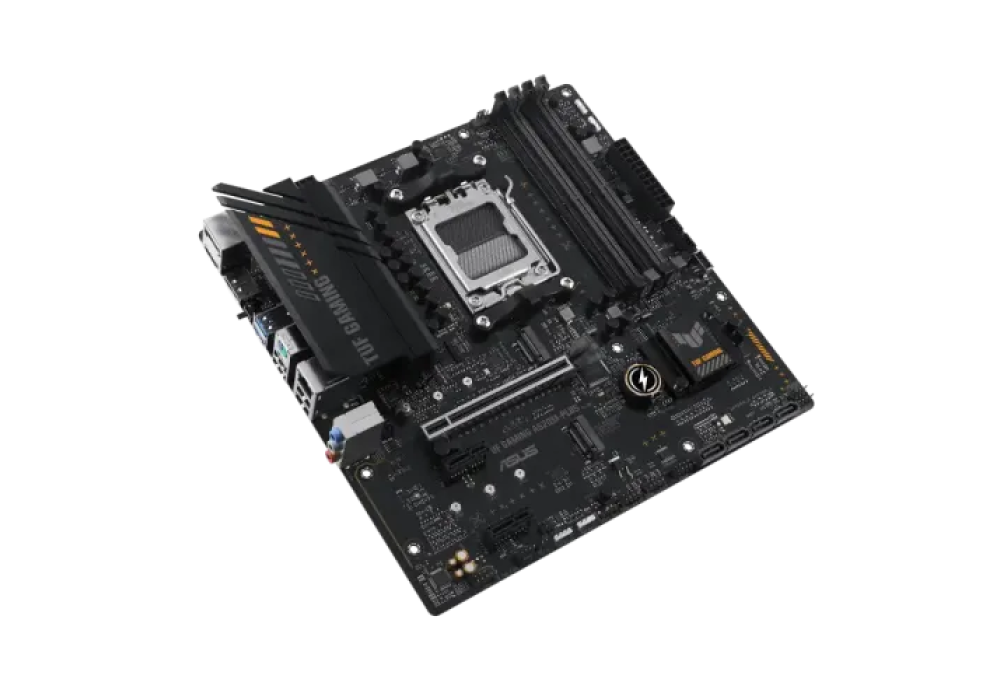

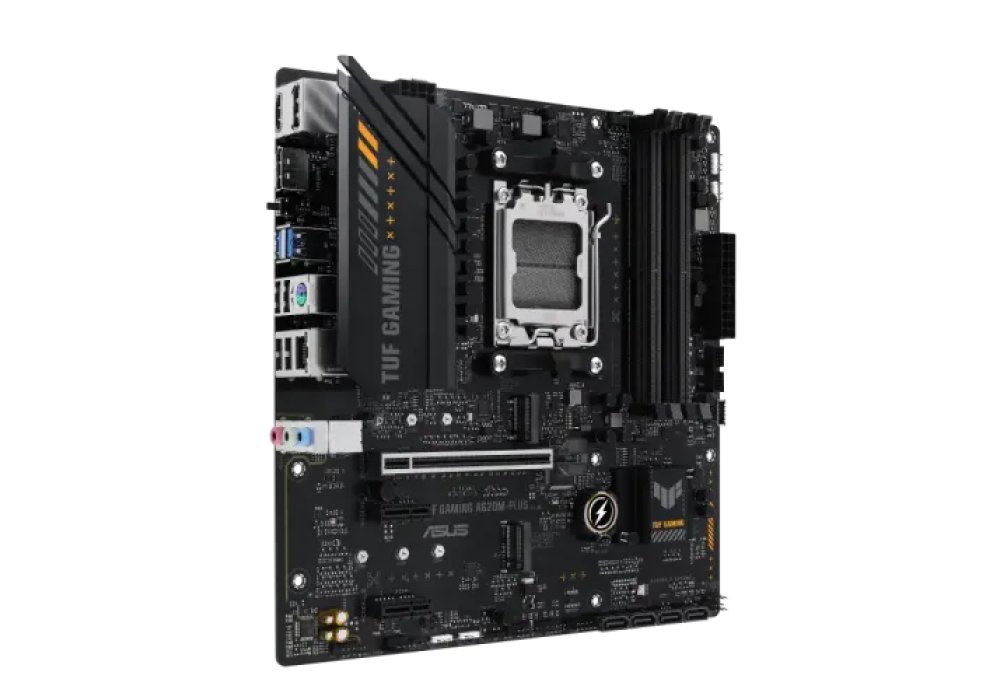

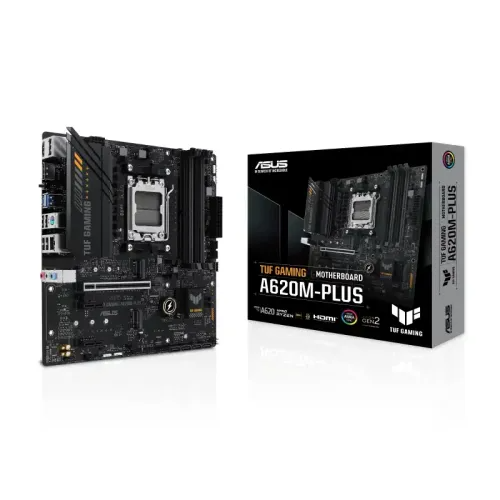

- ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
- Stock: In Stock
- Model: TUF GAMING A620M-PLUS
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
- Memory Max.: 128GB
- Ram Type: DDR5
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot AMD A620 Chipset 2 x PCIe 3.0 x1 slots |
| Memory | |
| Type | DDR5 |
| Maximum Memory | 128GB |
| Slot | 4 x DIMM |
| Supported Memory | DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| Display Port (s) | 2 x DisplayPort |

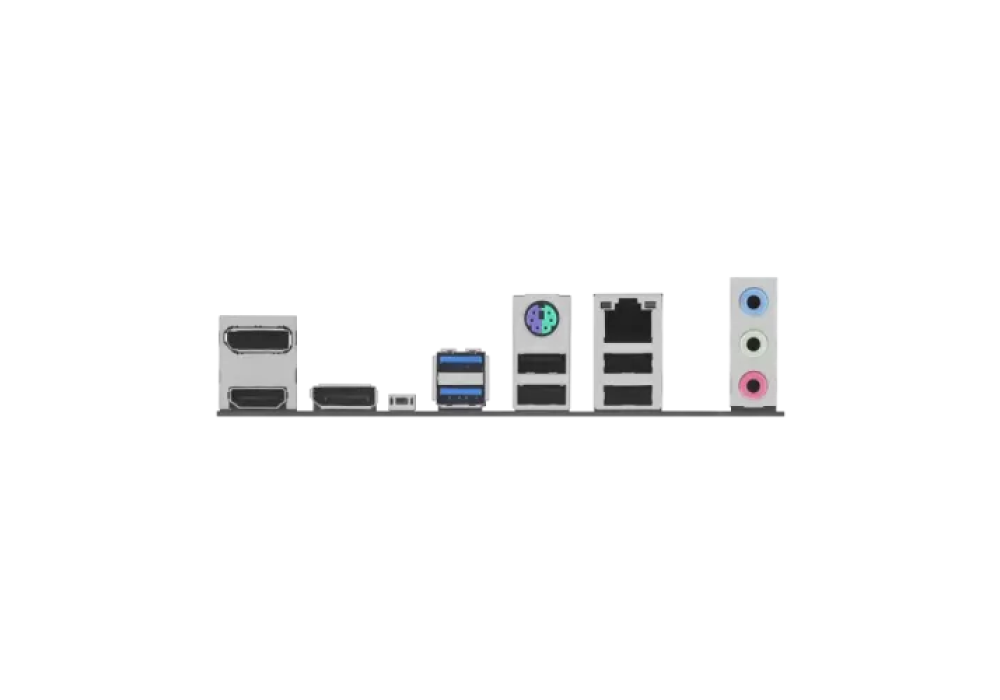

| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Graphics | |
| Graphics | 2 x DisplayPort** 1 x HDMI port*** ** Support max. 8K 60Hz as specified in DisplayPort 1.4. *** Supports 4K 60Hz as specified in HDMI 2.1. |
| Others | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z Norton 360 for Gamers (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Warranty Information | |
| Warranty | 3 Years |
ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard – Durable & Future-Ready Platform
The ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard is a robust foundation for building or upgrading an AMD-based gaming or productivity PC. Designed with AMD AM5 socket support, this motherboard is compatible with Ryzen 7000 series processors (Zen 4), delivering excellent multi-core performance for gaming, creative workloads, and everyday tasks. Its Micro-ATX form factor makes it ideal for compact yet powerful builds without sacrificing expandability. Featuring TUF Gaming durability standards, reinforced PCIe slots, enhanced power delivery, and comprehensive cooling solutions, the A620M-PLUS ensures stable and reliable performance even under heavy loads. With modern connectivity options like USB 3.2 Gen 2, PCIe 4.0 support, and high-quality audio, this board provides a balanced mix of performance, reliability, and future-ready features for gamers and builders alike.
Features of ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
-
AMD AM5 socket supporting Ryzen 7000 series CPUs for powerful performance
-
Micro-ATX form factor fits compact builds without sacrificing functionality
-
PCIe 4.0 support for next-gen graphics cards and high-speed storage
-
Reinforced PCIe slot for heavy GPUs and gaming hardware
-
USB 3.2 Gen 2 ports for fast data transfer and peripheral support
-
Durable TUF components and enhanced cooling for stable operation
Compatible with Next-Gen Ryzen CPUs
The ASUS TUF GAMING A620M-PLUS motherboard supports AMD Ryzen 7000 series processors (Zen 4), allowing users to harness modern AMD CPU performance for gaming and productivity while maintaining efficiency and responsiveness.
Compact yet Expandable Design
Its Micro-ATX layout provides a balance of space-saving design and expandability, including multiple PCIe slots and USB ports, making it ideal for gaming, workstation, or general-purpose systems in smaller cases.
Why Choose ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard?
Choose the ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard for a reliable and future-ready platform with solid performance, excellent build quality, and flexible expansion. Its AM5 socket and robust features make it an ideal choice for gamers and PC builders who want strong performance in a compact format.
Benefits of ASUS TUF GAMING A620M-PLUS AMD AM5 Micro-ATX Motherboard
-
Supports modern Ryzen 7000 series CPUs for powerful performance
-
Compact Micro-ATX design for versatile builds
-
High-speed connectivity with USB 3.2 Gen 2 and PCIe 4.0
-
Durable components for long-lasting reliability
-
Enhanced cooling and reinforced slots for gaming stability
