- ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX Motherboard
- Stock: In Stock
- Model: ROG STRIX Z890-E GAMING WIFI
- Features: 7x M.2 Slot, 1x Realtek 5Gb LAN, Wi-Fi 7, Bluetooth 5.4
- Graphics Output: 1x HDMI, 1x DisplayPort, 2x Intel Thunderbolt 4
- Supported RAM: 4x DDR5, Max 256GB, Support up to 9200+MT/s (OC)
- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
| Basic Information | |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z890 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Expansion Slots | |
| PCI | Intel Core Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| M.2 Socket | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Intel Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Memory | |
| Type | DDR5 |
| Maximum Memory | 256GB |
| Slot | 4x DIMM slots |
| Supported Memory | Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 14 ports) 2 x Thunderbolt 4 (2 x USB Type-C) 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge)** 3 x USB 5Gbps ports (3 x Type-A) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports * USB Type-C power delivery output: 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Supported Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Intel Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Audio | 2 x Gold-plated audio jacks |

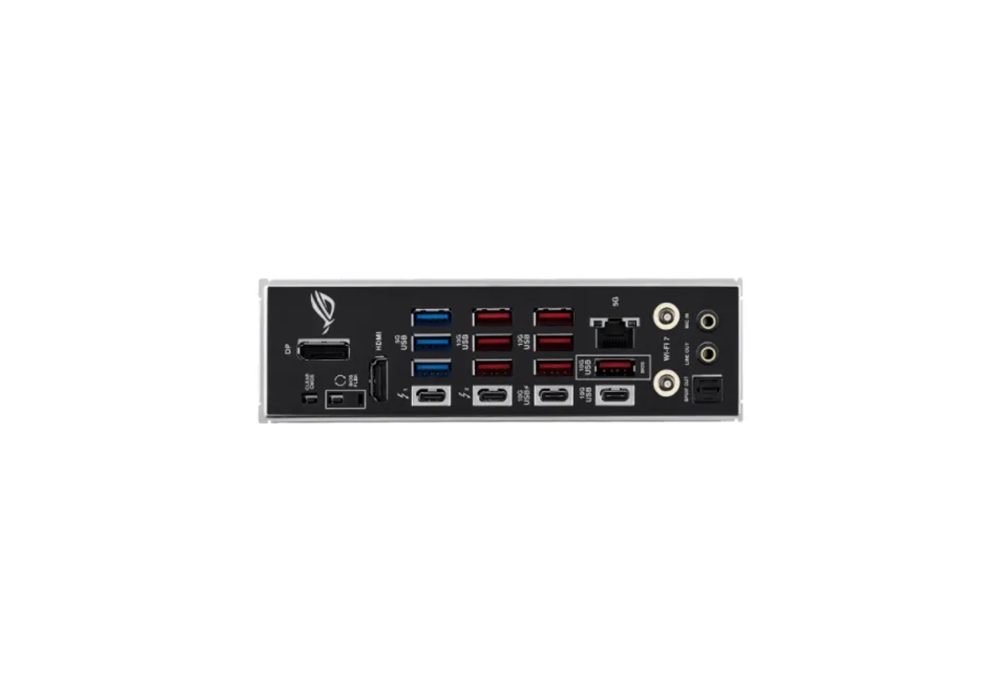

| Internal I/O Ports | Back Panel I/O Ports 2 x Thunderbolt 4 (2 x USB Type-C) 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 7 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Alteration PCIe mode switch 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Graphics | |
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs Supports max. 8K 60Hz as specified in DisplayPort 1.4. Supports max. 8K 60Hz as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K 60Hz x1 with DSC or 4K 60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Others | |
| Other Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost FlexKey |
| Warranty Information | |
| Warranty | 3 Years |

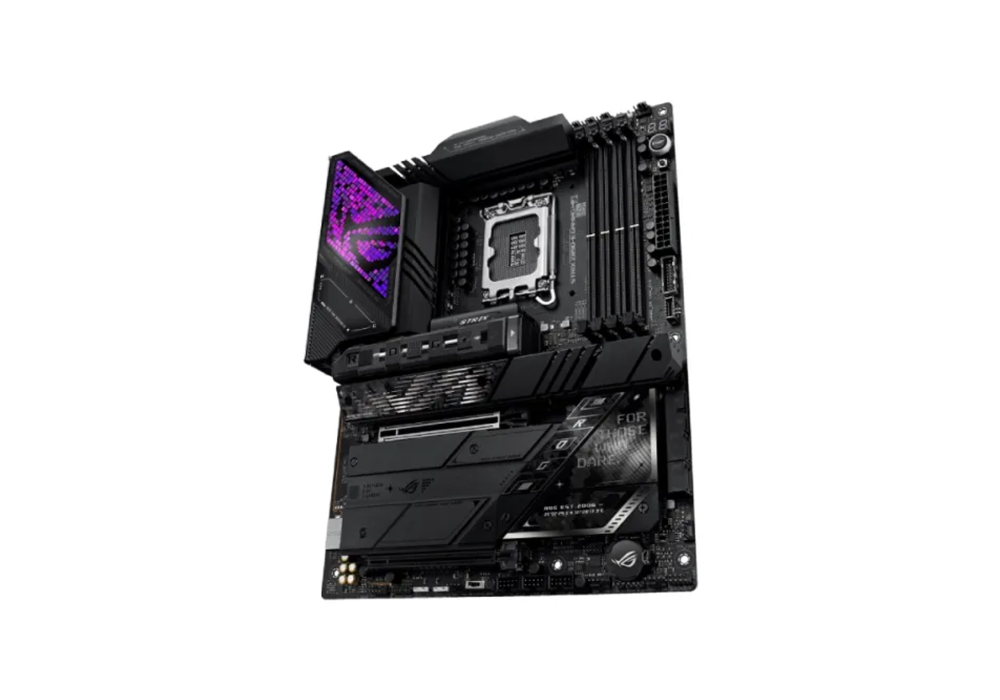

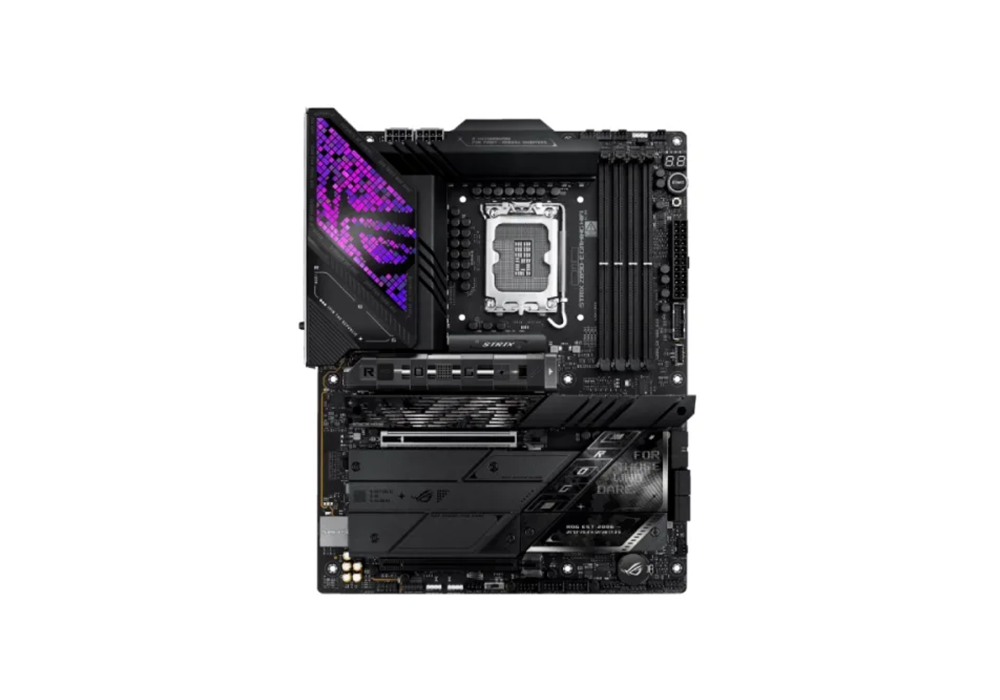

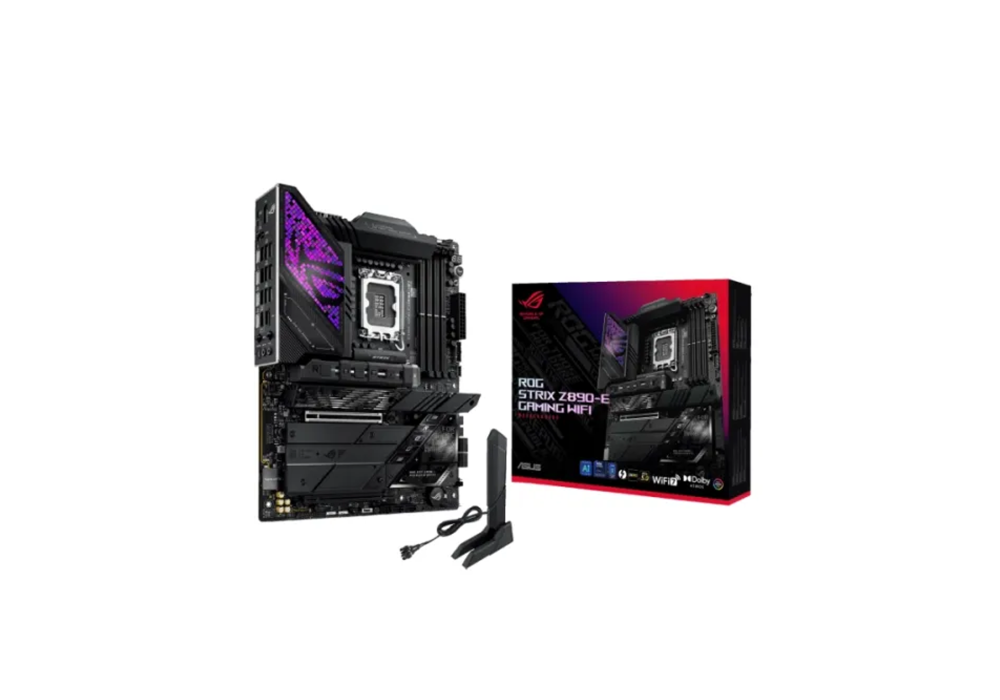

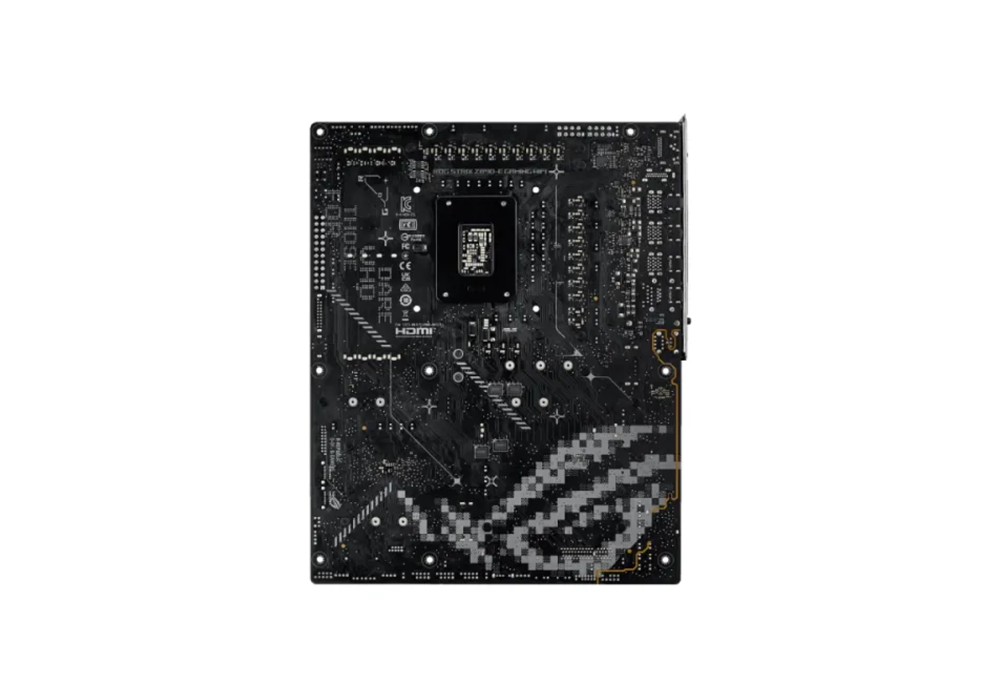

ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX Motherboard – Next-Gen Performance and Connectivity
The ASUS ROG STRIX Z890-E GAMING WIFI motherboard is a high-performance ATX board for Intel’s LGA1851 Ultra processors. It delivers superior power delivery with an 18+1+2+2 phase VRM design, enabling stable performance even under heavy workloads. This board supports DDR5 memory, allowing speeds up to 9200 MT/s through tuning and overclocking — perfect for gamers and creative professionals alike. With multiple expansion and storage options, it features seven M.2 slots, including three PCIe 5.0 slots for blazing-fast SSDs and four additional PCIe 4.0 slots for extra storage needs. Its PCIe 5.0 ×16 slot ensures compatibility with the latest GPUs, while two additional PCIe 3.0 slots offer more flexibility. The built-in Wi-Fi 7, Bluetooth 5.4, and 2.5 Gb Ethernet provide top-tier networking for competitive gaming and seamless streaming. Cooling is well designed with large VRM heatsinks, a dedicated heat pipe, and multiple fan headers for efficient thermal control. Connectivity is made future-proof with dual Thunderbolt 4 / USB4 Type-C ports that support 40 Gbps transfer speeds and power delivery. For audio, the board features a high-fidelity SupremeFX ALC4080 codec, delivering premium 7.1 surround sound for immersive gaming and media. The ROG STRIX Z890-E is ideal for enthusiasts who demand high-speed performance, reliability, and modern features in a durable, efficient package.
Features
- LGA1851 socket for Intel Ultra-series CPUs
- DDR5 memory support (up to 9200 MT/s overclock)
- Seven M.2 slots: 3 × PCIe 5.0, 4 × PCIe 4.0
- PCIe 5.0 ×16 slot + 2 × PCIe 3.0 slots
- Wi-Fi 7, Bluetooth 5.4, and 2.5 Gb Ethernet
- Dual Thunderbolt 4 / USB4 Type-C ports (40 Gbps)
- Robust 18-phase VRM with advanced cooling
- ROG SupremeFX ALC4080 audio for premium sound
Why Choose ASUS ROG STRIX Z890-E GAMING WIFI?
This motherboard is worth choosing if you want a future-ready, feature-packed gaming platform. With cutting-edge features like PCIe 5.0, DDR5 support, Wi-Fi 7, and Thunderbolt 4, this board ensures your build stays powerful and relevant for many years.
FAQ
Q1: Does it support the latest Intel “Ultra” processors?
A1: Yes — it’s compatible with Intel LGA1851 Ultra-series CPUs.
Q2: How many M.2 SSDs can it support?
A2: It supports up to seven M.2 devices (3× PCIe 5.0 + 4× PCIe 4.0).
Q3: Does it include Wi-Fi and Bluetooth?
A3: Yes — it has built-in Wi-Fi 7 and Bluetooth 5.4.
