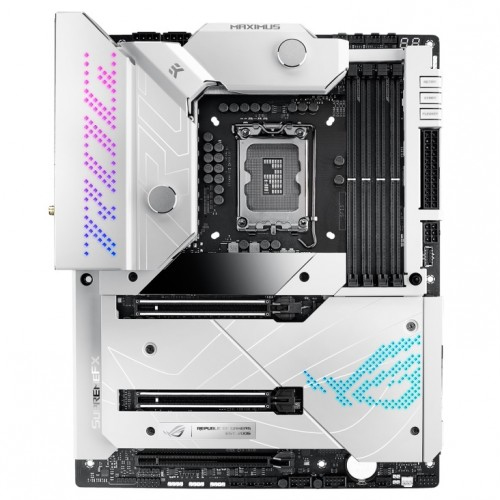

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard
  • Price: 76,200৳
  • Stock: In Stock
  • Brand: Asus
  • Model: ROG MAXIMUS Z690 FORMULA
  • Product ID: 3784
76,200৳
EMI starts at 26,721৳/month. View all 25 banks EMI plans >

Key Features

    • LGA 1700 for 12th Gen Intel Core Pentium Gold and Celeron processors
    • 20+1 teamed power stages rated for105 A
    • Onboard WiFi 6E Marvell AQtion 10 Gb Ethernet
    • PCIe 5.0 dual Gen 4 M.2 onboard
অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356
Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Z690
BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX
30.5cm x 24.4cm
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Graphics 1 x HDMI port**
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
Expansion Slots
PCI Intel 12th Gen Processors*
2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s))
Intel Z690 Chipset
1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
M.2 Socket Supports 5 x M.2 slots
Memory Specifications
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Max. Memory 128GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) Rear USB:
Total 12 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®)
7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB:
Total 9 ports
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s) 1 x Marvell 10Gb Ethernet
ASUS LANGuard
Supported Storage Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110***
- Intel® 12th Gen processors support PCIe 5.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)***
Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)****
6 x SATA 6Gb/s ports*****
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio 1 x Front Panel Audio header (AAFP)
Internal I/O Ports 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector

Storage related
3 x M.2 slots (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x Intel® Thunderbolt 4 port (USB Type-C®)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x AURA RGB header
1 x BIOS Switch button
2 x BCLK button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Others Information
Special Features Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- CrossChill EK III
- M.2 heatsink backplate
- M.2 heatsinks
- Steel backplate
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
OLED 2"
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support
- Support: up to 60W charging*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W
ASUS HYDRANODE
- 1 x 12-1 pin Front Panel Audio header (AAFP)
- 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P)
Warranty Information
Manufacturing Warranty 3 years

Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard

The Asus ROG MAXIMUS Z690 FORMULA 12th Gen ATX Motherboard supports Socket LGA1700 for 12th Gen Intel Core, Pentium Gold & Celeron Processors. It features ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking, and Two-Way AI Noise-Cancelation for easy configuration. It has 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes, and premium metallic capacitors. 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes, and premium metallic capacitors. It comes with onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard. It delivers the fastest Gaming Connectivity: PCIe 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2x2 front-panel connector with Thunderbolt 4 support, and rear triple USB Type-C ports. It also has ROG SupremeFX ALC4082 codec with ESS ES9018Q2C DAC for high-fidelity audio.
