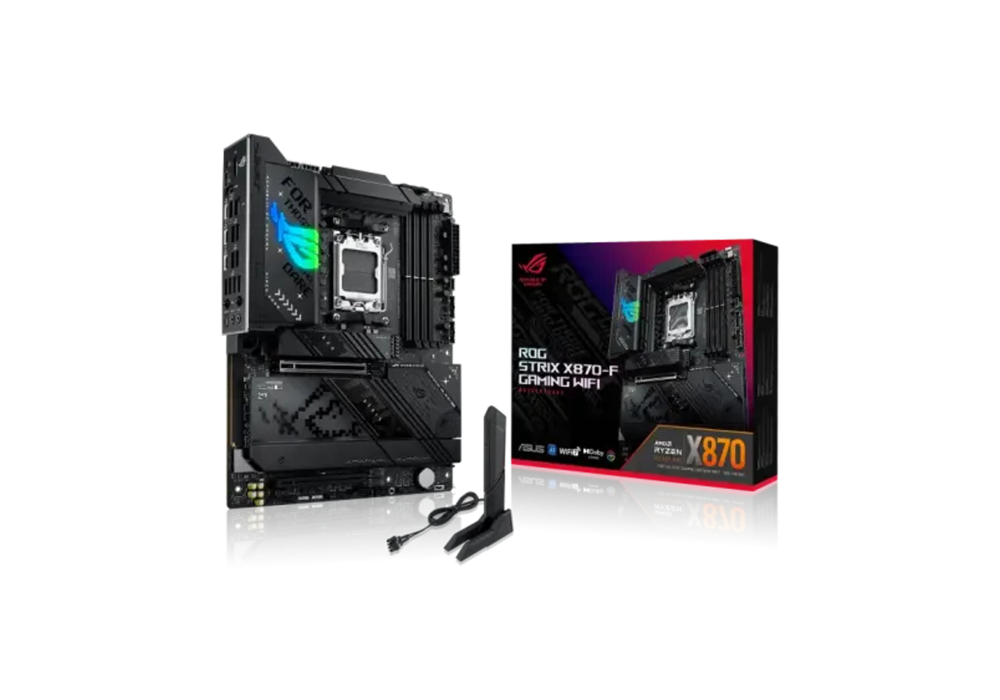

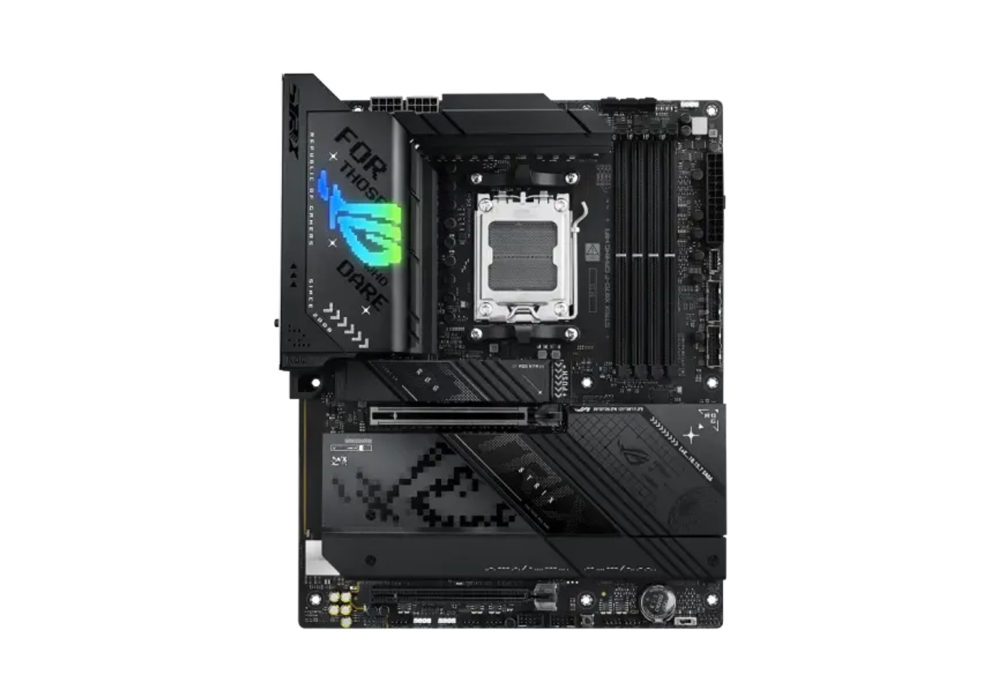

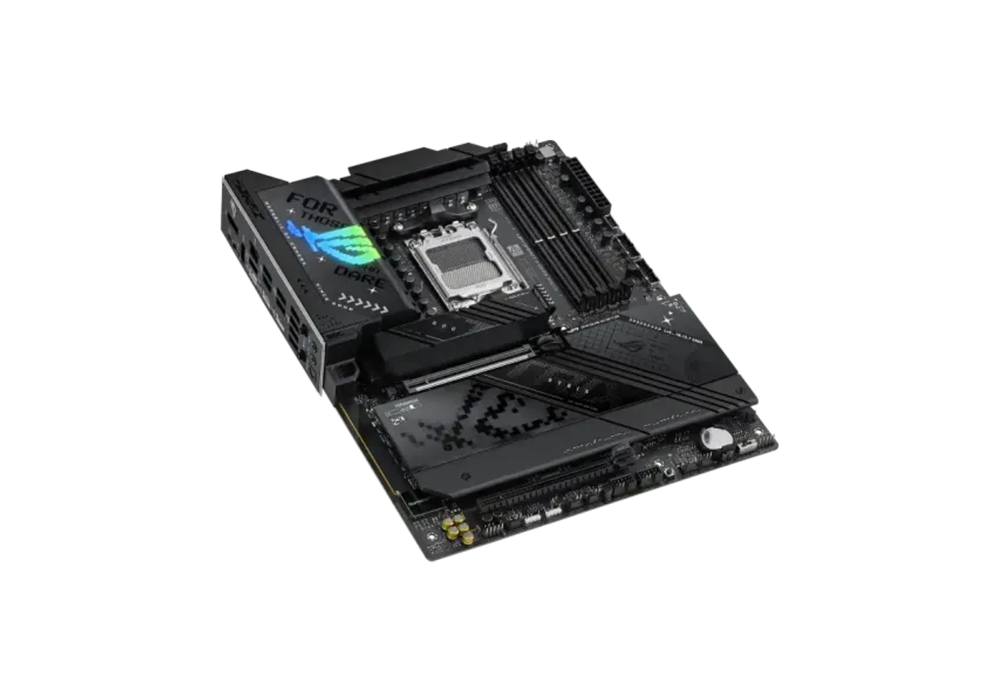

- Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
- Stock: In Stock
- Model: ROG STRIX X870-F GAMING WIFI
EMI starts at 24,371৳/month.
- Supported CPU: AMD Ryzen 9000/8000/7000
- Form Factor: ATX
- Memory Max.: Up to 192GB
- RAM Type: DDR5
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Memory Specifications | |
| Max Memory Size Supported | 192GB |
| Memory Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory Type | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
| Other Features | |
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |

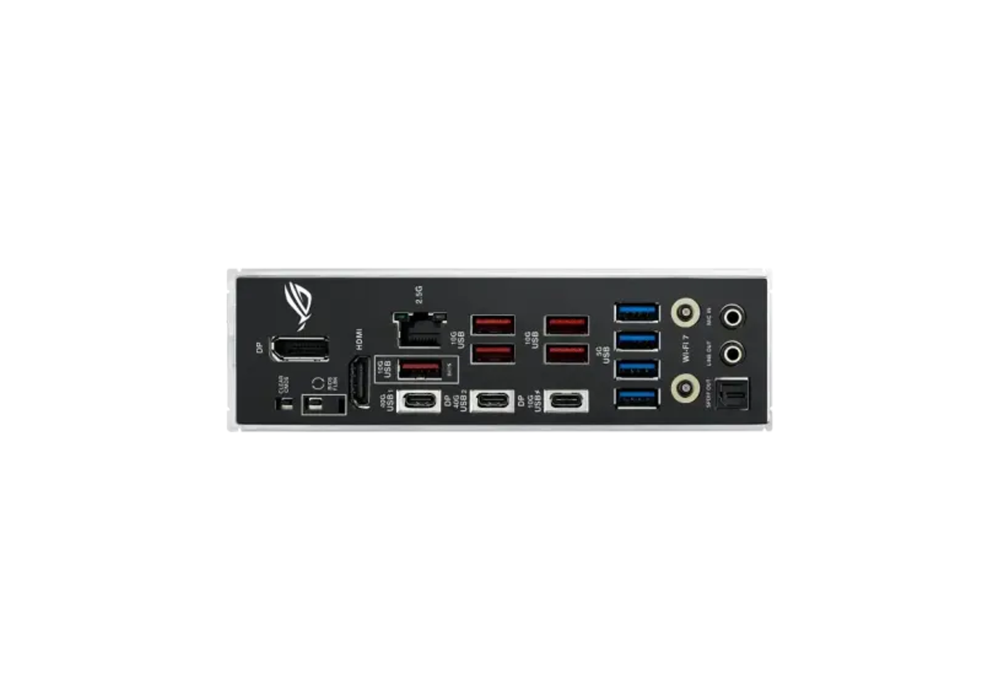

| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4 |
| Supported Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU |
| Graphics | |
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs * Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a VGA resolution support depends on processors' or graphic cards' resolution. |
| Others Information | |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey |
| Warranty Information | |
| Warranty | 3 Years |
Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard
Step into the future of gaming and high-performance computing with the Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard. Engineered for serious gamers, content creators, and PC enthusiasts, this motherboard brings unmatched speed, stability, and cutting-edge features to your setup. Designed to harness the full potential of AMD’s AM5 platform, it supports the latest DDR5 memory modules, ensuring lightning-fast data transfer and smooth multitasking even during the most demanding workloads.
With robust power delivery and advanced cooling solutions, the ROG STRIX X870-F keeps your system running efficiently under heavy gaming or creative sessions. Its PCIe 5.0 support guarantees next-generation graphics cards perform at their peak, while the integrated WiFi 6E provides ultra-fast, low-latency connectivity for seamless online gaming. Additionally, the motherboard features Aura Sync RGB lighting, allowing you to customize your rig with vibrant colors that match your gaming style. Built with ROG’s signature durability and performance-focused design, the Asus ROG STRIX X870-F isn’t just a motherboard—it’s a foundation for building a powerhouse PC that meets the demands of modern gaming and productivity. Whether you’re streaming, rendering, or dominating in competitive gaming, this motherboard ensures your system is future-ready and fully optimized. Upgrade to the Asus ROG STRIX X870-F and experience a gaming platform where speed, reliability, and aesthetics come together to redefine what your PC can achieve.
Key Benefits of Asus ROG STRIX X870-F Motherboard
- Next-Gen DDR5 Memory Support: Experience lightning-fast data transfer, improved bandwidth, and smoother multitasking with cutting-edge DDR5 RAM compatibility. This ensures your system handles high-resolution gaming, video editing, and heavy multitasking without lag or slowdowns.
- Robust Power Delivery & Efficient Cooling: Built with advanced VRM design and comprehensive cooling solutions to ensure stable performance under heavy gaming or creative workloads. Enhanced thermal management keeps temperatures low, even during extended gaming marathons, protecting your components for long-term reliability.
- PCIe 5.0 Ready: Future-proof your system with support for next-generation graphics cards and ultra-fast NVMe SSDs for superior gaming and storage performance. This means faster load times, smoother gameplay, and the ability to handle future hardware upgrades effortlessly.
- High-Speed Connectivity: Integrated WiFi 6E and multiple high-speed USB ports provide low-latency online gaming, fast file transfers, and seamless peripheral connections. You can enjoy uninterrupted streaming, lag-free multiplayer experiences, and quick access to external storage devices.
- Customizable Aura Sync RGB Lighting: Personalize your build with synchronized RGB lighting to match your gaming setup and create an immersive environment. Choose from millions of colors and dynamic lighting effects to reflect your personal style and gaming vibe.
- Durable and Reliable Build: Engineered with ROG’s signature durability, premium components, and reinforced PCIe slots, ensuring long-lasting performance and stability. Every detail is designed to withstand intense usage, giving you peace of mind for years of high-performance computing.
Build Gaming pc with Asus ROG STRIX X870-F GAMING WIFI AMD Motherboard
Experience ultimate performance with the Asus ROG STRIX X870-A GAMING WIFI AMD Motherboard, now available at Onix BD. Perfectly designed for AMD Ryzen Motherboard builds, it delivers lightning-fast speeds, robust power delivery, and advanced cooling for smooth gaming and multitasking. Ideal for gamers and creators, this ASUS motherboard ensures next-gen connectivity and durability. Upgrade your PC today and enjoy enhanced performance, seamless streaming, and stable operation with a trusted Onix BD motherboard.
