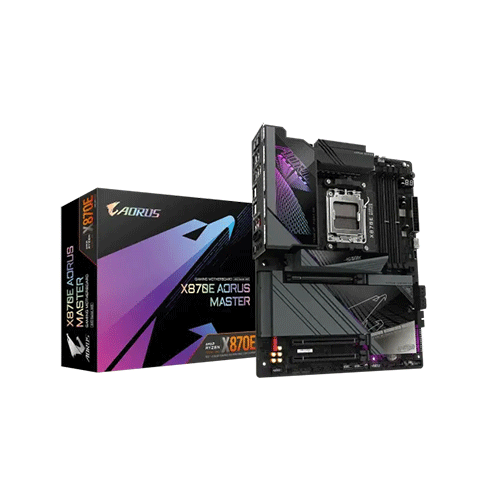

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
-1 %
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard
  • Stock: In Stock
  • Model: X870E AORUS MASTER
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
75,500৳
76,000৳
EMI starts at 26,475৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, Max 256GB
  • Graphics Output: 2 x USB4 (USB Type-C), 1 x HDMI
  • Features: Realtek 5GbE LAN, Qualcomm Wi-Fi 7 QCNCM865
View more info...
Specification
Basic Information
Supported CPU AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors
Chipset AMD X870E
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
Support for DTS:X Ultra
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one
graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
M.2 Socket
Networking & Connectivity
Wireless Qualcomm Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Memory Specifications
Memory Type DDR5
Slots 4 DIMMs
Supported Memory Type Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Max. Memory Up to 256GB (64GB single DIMM capacity) of system memory
Connector & Ports
HDMI 1 x HDMI
Display Port (s)
USB (s) CPU+ASMedia USB4 controller:
- 2 x USB4 USB Type-C ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
(Note) Actual support may vary by CPU.
Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port (Note)
2 x USB4 USB Type-C ports (DisplayPorts (Note))
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
D-Sub (s)
Graphics
Graphics ntegrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4
Controller:
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR
Max Shared Memory
Others Information
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Others RAID:
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Warranty Information
Warranty 3 Years
Manufacturing Warranty
Description

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard

The GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard is a high-performance, feature-rich motherboard crafted for the latest AMD Ryzen processors, making it ideal for serious gamers and performance enthusiasts. Designed with AMD Socket AM5, it supports AMD Ryzen 9000, 8000, and 7000 Series processors, delivering exceptional computing power and multitasking capabilities. The motherboard boasts the AMD X870E chipset, a sophisticated 256 Mbit AMI UEFI BIOS, and an ATX form factor, providing ample support for robust hardware configurations. With advanced audio capabilities powered by the Realtek ALC1220 CODEC, DTS Ultra, and support for multi-channel sound configurations, users experience immersive, high-definition audio for gaming and media applications. For expansion, it includes versatile PCIe slots. The PCIEX16 slot supports PCIe 5.0 for Ryzen 9000/7000 processors, allowing for high-speed data transfer and compatibility with advanced graphics cards. The X870E also provides extensive memory support for DDR5 modules up to 8600 MT/s (OC), with a maximum of 256GB across four DIMMs, ensuring exceptional data performance. Graphics support is equally impressive, with integrated Radeon graphics and dual USB4 Type-C ports that support DisplayPort 1.4, capable of resolutions up to 4K at 240 Hz. The board includes extensive connectivity options, such as 5GbE LAN, Qualcomm Wi-Fi 7 with Bluetooth 5.3, and multiple USB ports, including USB 3.2 Gen 2 and USB 2.0, catering to all device connectivity needs. It also supports extensive storage options with multiple M.2 and SATA connectors, RAID capabilities, and Q-Flash Plus for easy BIOS updates. With bundled features like the GIGABYTE Control Center and Norton® Internet Security, along with a 3-year warranty, the X870E AORUS MASTER offers users an unmatched platform for building powerful, future-ready systems.

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 Motherboard Features

  • Advanced Chipset: Built on the AMD X870E chipset, this motherboard ensures compatibility with the latest technologies and maximized data throughput.
  • High-Speed Memory Support: With four DIMM slots, it supports DDR5 memory speeds up to 8600 MT/s (OC), with a maximum system memory capacity of 256GB, allowing for extensive multitasking and enhanced data processing.
  • Cutting-Edge Expansion: The board provides a PCI Express 5.0 x16 slot, enabling compatibility with the latest high-end graphics cards and NVMe SSDs, optimizing for gaming and heavy workloads. Additional PCIe slots at 4.0 and 3.0 standards further increase expansion potential.
  • Comprehensive Storage Options: It includes four M.2 slots supporting both PCIe 5.0 and 4.0 SSDs for high-speed storage, along with four SATA 6Gb/s connectors. RAID options (RAID 0, 1, 5, and 10) are also supported for data redundancy and performance.
  • Rich Audio and Visuals: Realtek ALC1220 CODEC with DTS
  • Ultra and S/PDIF Out support provides immersive audio, while integrated graphics with dual USB4 Type-C ports offer DisplayPort compatibility, supporting up to 3840x2160 @ 240Hz.
  • Enhanced Connectivity: Features a Realtek 5GbE LAN and Qualcomm Wi-Fi 7 with Bluetooth 5.3, ensuring fast and reliable connectivity across devices.
  • User-Friendly I/O Panel: Equipped with multiple USB ports, HDMI, Q-Flash Plus, Clear CMOS, and dual audio jacks, the back panel provides versatile and accessible options.
  • Special Software Support: Comes bundled with GIGABYTE Control Center, Q-Flash, and Norton Internet Security, enhancing system control, protection, and backup capabilities.
