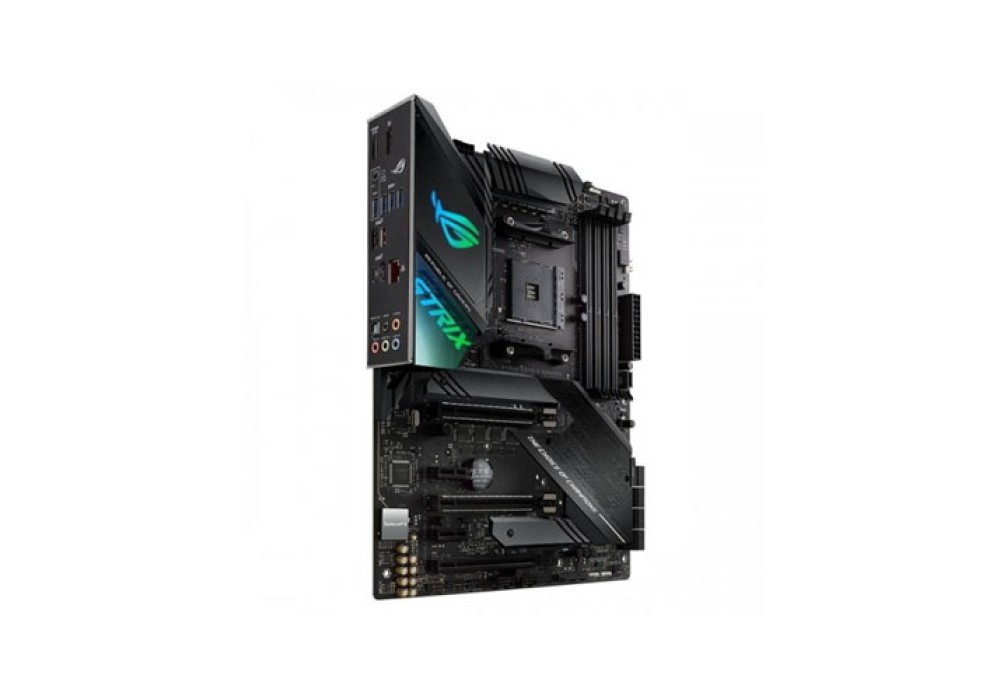

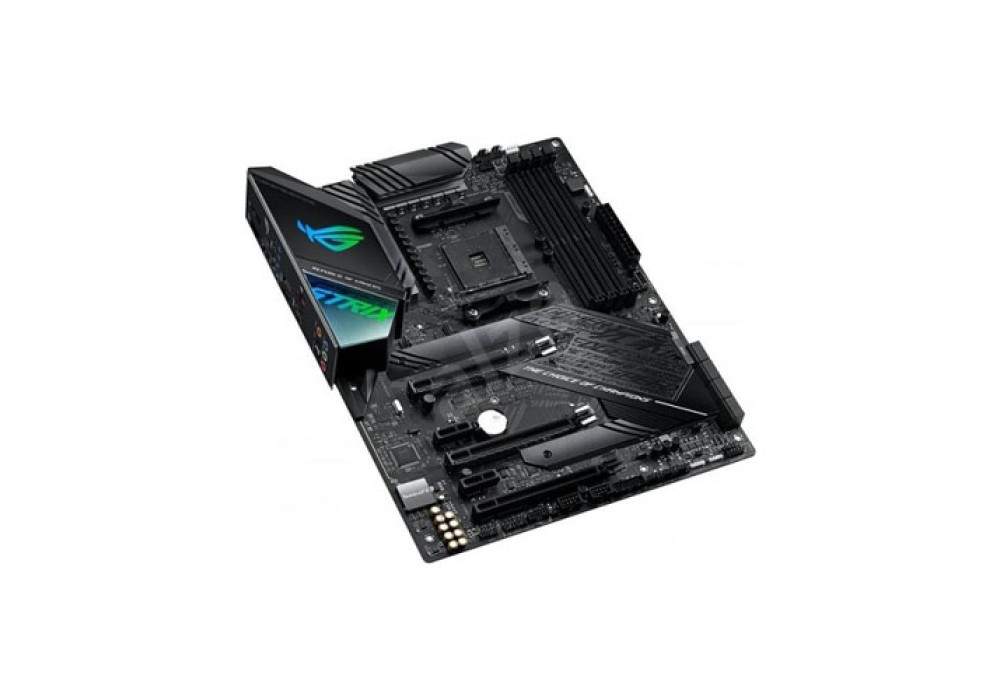

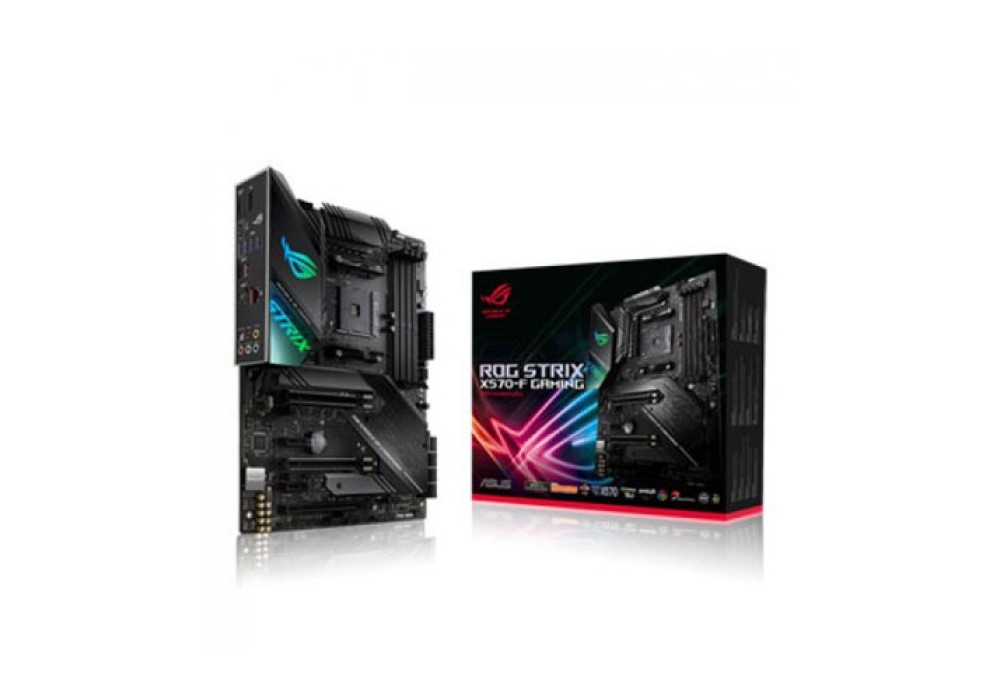

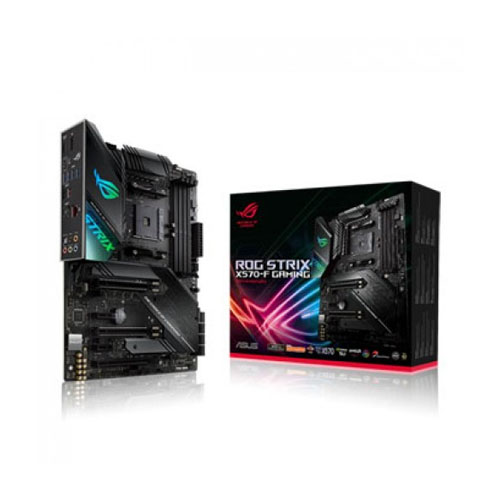

Model: Asus Rog Strix X570-F
View More Info...
Chat Through
| Supported CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors |
| Chipset | AMD X570 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| PCI | 1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| M.2 Socket | Yes |
| Memory Type | 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3 000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
| Slots | 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1 |
| Max. Memory | 128GB, DDR4 |
| HDMI | Yes |
| USB (s) | 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| LAN Port (s) | Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard |
| Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
| Internal I/O Ports | 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
| Max Shared Memory | Max. 128GB |
| Manufacturing Warranty | 03 Years Warranty |
The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable weapon to rise above the rest. With comprehensive cooling options and upgraded power delivery to fuel Ryzen CPUs with more cores, plus faster storage and networking, ROG Strix X570-F Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance. The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. Together with the most diverse ecosystem of components in the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy. The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
