Model: ROG STRIX B860-F GAMING WIFI
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
| Chipset | INTEL B860 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Supports up to 32-bit/384 kHz playback |
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| M.2 Socket | 4 x M.2 |
| Slots | 4 |
| Supported Memory Type | 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Max. Memory | Maximum Memory Capacity 256GB |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1.4a |
| USB (s) | Rear USB (Total 9 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps (1 x USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 2 x Audio jacks |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x Thunderbolt™ 4 (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| RAID | SATA RAID 0/1/5/10 |
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. Supports 8K@60Hz with DSC as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on the processors' or graphic cards' resolution. |
| Other Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Manufacturing Warranty | 3 Year warranty |

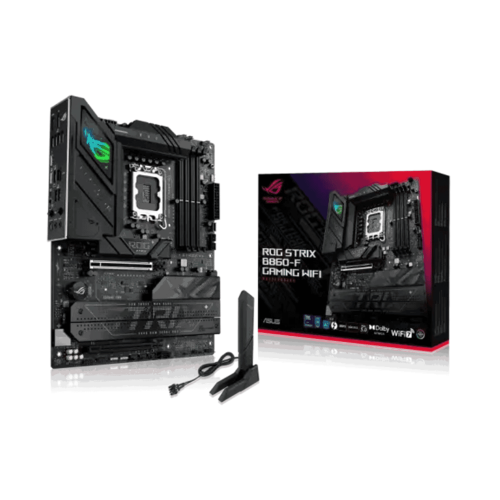

The Asus ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard is a high-performance, feature-rich solution crafted for Intel’s latest Core Ultra (Series 2) processors, powered by the Intel B860 chipset. Built on a full-size ATX form factor, it delivers excellent performance, extensive connectivity, and gamer-centric enhancements, making it ideal for modern gaming and high-end PC builds. Supporting up to 256GB of DDR5 memory with overclocking speeds of up to 9066MT/s, this motherboard ensures fast and efficient multitasking. Its dual PCIe slots—including a PCIe 5.0 x16 slot—along with four M.2 slots (one supporting PCIe 5.0) and four SATA ports, provide versatile storage and expansion options. Note: the M.2_4 slot shares bandwidth with the PCIe 4.0 x16 slot. For connectivity, the B860-F offers Wi-Fi 7, Bluetooth 5.4, and Intel 2.5Gb Ethernet, ensuring blazing-fast and stable online experiences. Display outputs include HDMI 2.1, DisplayPort 1.4a, and a Thunderbolt 4 port that supports video output—up to 8K@60Hz—making it perfect for both gamers and content creators. The ROG SupremeFX audio system, powered by the ALC4080 codec, delivers crystal-clear 7.1 surround sound with support for 32-bit/384 kHz playback. With a total of 15 USB ports (rear and front combined), including Thunderbolt 4, USB 20Gbps, and multiple USB Type-C connections, the board supports the most demanding peripherals with ease. Enhanced with ASUS Q-Design features, AURA Sync RGB lighting, AI tuning tools, and ROG-exclusive software like Fan Xpert 4 and Armoury Crate, this motherboard blends performance, style, and ease of use. Backed by a 3-year warranty, the ROG STRIX B860-F is a powerhouse built for elite-level gaming and productivity.
