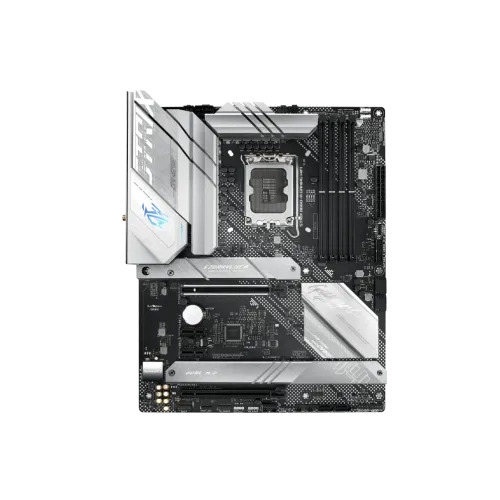

ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard

Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset B660
BIOS 192 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
30.5cm x 24.4cm
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback Audio Features
- SupremeFX Shielding Technology
- Savitch SV3H712 AMP
- Premium audio capacitors
- Audio cover
Graphics
Graphics 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered
Memory
Dual Channel Memory Architecture
OptiMem II
Maximum Memory 128GB
Expansion Slots
PCI Intel 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot(s)
Intel B660 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Connector & Ports
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Wireless Communication module Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
HDMI 1 x HDMI port
USB (s) Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitch SV3H712 AMP
- Premium audio capacitors
- Audio cover
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Others
Bundled Software ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EV
O
EPU DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- CPU Socket lever protector
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Warranty Information
Manufacturing Warranty 3 years

ASUS ROG STRIX B660-A GAMING WIFI 12th Gen Intel ATX Motherboard

The Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard provides an optimal power solution, 12 + 1 power stages with ProCool power connections, high-quality alloy chokes, and long-lasting capacitors to support multi-priced CPUs. It features an Optimized Thermal Design. Integrated I/O cover, VRM heatsinks with high-conductivity thermal pads, and three integrated M.2 heatsinks. This motherboard offers high-performance networking. Intel WiFi 6 (802.11ax) and Intel Ethernet 2.5Gb with ASUS LANGuard. Better gaming connectivity is provided by the Asus ROG STRIX B660-A GAMING WIFI Intel 12th Gen Motherboard. It supports HDMI 2.1 and DisplayPort 1.4 output, as well as three M.2 slots and USB 3.2 Gen 2x2 Type-C. To ease setup and boost performance, this motherboard has Smart Control, ASUS Exclusive AI cooling, AI networking, and 2-way noise reduction. It boasts an easy-to-use design, an M.2 latch, a pre-mounted I/O shield, a BIOS FlashBack button, and a Q-LED. It boasts unrivaled customizability, ASUS unique Aura Sync RGB lighting, one RGB header, and three Gen 2 addressable headers.
