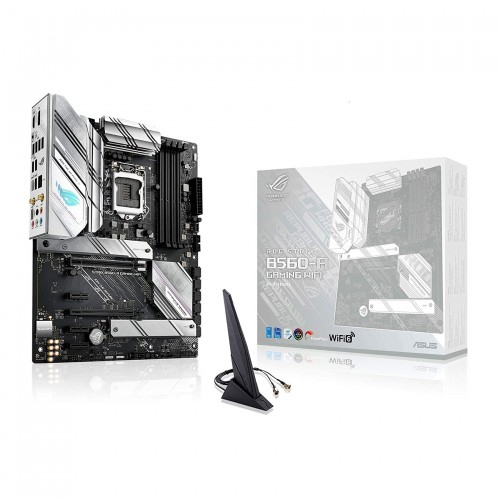

Model: ROG STRIX B560-A GAMING WIFI
View More Info...
Chat Through
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX 30.5cm x 24.4cm |
| Audio | - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 mode - Intel10th processors support PCIe 3.0 x16 mode Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 3 x PCIe 3.0 x1 slots |
| M.2 Socket | 2 x M.2 slots |
| Memory Type | DDR4 |
| Slots | 4 x DDR4 (Dual channel) |
| Supported Memory Type | Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively. |
| HDMI | 1 x HDMI 2.0 |
| Display Port (s) | 1 x DisplayPort 1.4 |
| USB (s) | Rear USB: Total 9 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Intel Wi-Fi 6 |
| Supported Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When M.2_2 runs at SATA mode, SATA6G_1 will be disabled ** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | 1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0** * Graphics specifications may vary between CPU types. **Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. *** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Bundled Software | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update MyAsus WinRAR DAEMON Tools UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| Manufacturing Warranty | 03 Years Warranty |
