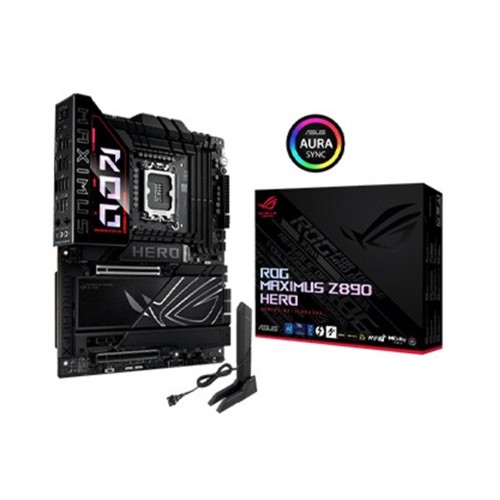

Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard

Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
-9 %
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard
  • Stock: In Stock
  • Model: ROG MAXIMUS Z890 HERO
Asus Asus
Based on 0 reviews. - Write a review
103,500৳
113,850৳
EMI starts at 36,294৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • 2x2 Wi-Fi 7 (802.11be)
  • Intel Z890 Chipset
  • 4 x DIMM slots, max. 192GB, DDR5
  • Support Intel Core Ultra Processors
View more info...
Specification
Basic Information
Supported CPU Support Intel Core Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset Intel Z890 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Memory 4 x DIMM slots, max. 192GB, DDR5
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered
DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
External Features
Expansion Slots Intel® Core™ Ultra Processors (Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)**
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe bifurcation table on the support site
I/O Port 2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Other Features
Special Features Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
ROG M.2 PowerBoost
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB
Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
Connector & Ports
USB (s) Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output:
5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Supported Storage Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports SlimSAS slot supports PCIe 4.0 x4 mode or up to 4
SATA devices via a transfer cable. The cable is purchased separately.
* Intel® Rapid Storage Technology supports PCIe
RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only.
Internal I/O Ports Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x 8-pin PCIe Power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS connector
USB 1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
Graphics
Graphics 1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™
video outputs***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates
** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum
total bandwidth up to 23.8Gbps or
16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
**** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system,
please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a
discrete graphics card.
Network & Connectivity
WiFi Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the
operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11
21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth
regulatory may vary between countries.
Software
Operating System Windows 11 (22H2 & later)
Network
Ethernet 1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Warranty Information
Warranty 03 years
Description

Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard

The Asus ROG MAXIMUS Z890 HERO LGA1851 Intel Motherboard is a high-performance motherboard tailored for power users, gamers, and creators, delivering top-notch speed, stability, and extensive connectivity. Built on the robust Intel Z890 chipset, it supports Intel Core Ultra Processors (Series 2) and boasts the latest LGA1851 socket. This motherboard is equipped with four DDR5 DIMM slots, allowing for a maximum capacity of 192GB and impressive speeds up to 9200 MT/s (overclocked), along with DIMM Flex and ASUS Enhanced Memory Profile III (AEMP III) for precise, stable performance. Storage capabilities are robust, with six M.2 slots supporting both PCIe 5.0 and PCIe 4.0 configurations, along with four SATA 6Gb/s ports, offering expansive storage solutions. Intel Rapid Storage Technology enables RAID configurations, enhancing data redundancy and performance. For optimal cooling, the Z890 HERO includes a dedicated 4-pin CPU fan header, chassis fan headers, and support for all-in-one (AIO) pumps, ensuring efficient heat management for demanding tasks. Connectivity on this motherboard is exceptional, featuring two Thunderbolt 4 ports, multiple USB ports including USB Type-C with up to 60W Power Delivery, and support for Wi-Fi 7 and Bluetooth 5.4 for fast, flexible connections. Networking is bolstered by dual Ethernet options with Intel 2.5Gb and Realtek 5Gb LAN, ensuring low-latency connections and efficient data handling. On the audio front, the ROG SupremeFX 7.1 Surround Sound with ESS ES9219 QUAD DAC delivers immersive, high-quality sound. It supports up to 32-bit/384kHz playback and includes features like impedance sensing and gold-plated audio jacks for enhanced clarity. Engineered for overclocking, the Z890 HERO integrates Extreme OC Kit and ASUS Q-Design, including a Q-Latch, Q-Release for PCIe slots, and a robust VRM heatsink design. With a sleek ATX form factor, three-year warranty, and an array of innovative ROG-specific features, the Asus ROG MAXIMUS Z890 HERO LGA1851 is an elite motherboard choice for performance-focused builds.

Asus ROG MAXIMUS Z890 HERO LGA1851 intel Motherboard Features

  • Powerful Memory Support: Equipped with 4 DIMM slots, this motherboard supports up to 192GB DDR5 memory, reaching speeds of up to 9200+ MT/s when overclocked. It also includes ASUS Enhanced Memory Profile III (AEMP III) and NitroPath DRAM Technology for optimized memory performance.
  • Advanced Storage Options: Offers 6 M.2 slots (including PCIe 5.0 x4) and 4 SATA 6Gb/s ports, providing fast storage capabilities. It supports RAID configurations (RAID 0, 1, 5, 10) via Intel® Rapid Storage Technology.
  • Comprehensive Connectivity: Features 2 Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps and USB 10Gbps connectors, plus 5 USB 10Gbps and 4 USB 5Gbps ports. Front-panel USB support includes up to 60W fast charging via Quick Charge 4+.
  • High-Quality Audio: With the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082, experience immersive sound quality with features like ESS® ES9219 QUAD DAC, 120 dB SNR stereo output, and gold-plated audio jacks.
  • Next-Gen Networking: Equipped with Wi-Fi 7 (802.11be) and dual Ethernet ports—Intel® 2.5Gb and Realtek 5Gb Ethernet—for ultra-fast, stable internet connections.
  • Robust Cooling and Power Management: Includes multiple fan headers, a 24-pin main power connector, and advanced cooling options like VRM heatsinks, metal backplates, and M.2 heatsinks to maintain optimal temperature.
  • Enhanced Gaming and Overclocking Features: Includes the Extreme OC Kit with FlexKey, ReTry, and Start buttons, plus ASUS’s Q-Design features like Q-Latch and Q-Code, which simplify hardware customization.
  • Aura Sync RGB Lighting: With addressable Gen 2 headers, the Aura Sync feature lets users customize RGB lighting effects across compatible components for a synchronized gaming setup.
  • Durable ATX Design: Built in an ATX form factor (12 x 9.6 inches), this motherboard offers robust stability with a pre-mounted I/O shield, SafeSlot, and SafeDIMM technologies for reinforced PCIe and DIMM slots.
  • 3-Year Warranty: Ensures quality and peace of mind with a comprehensive 3-year warranty.
