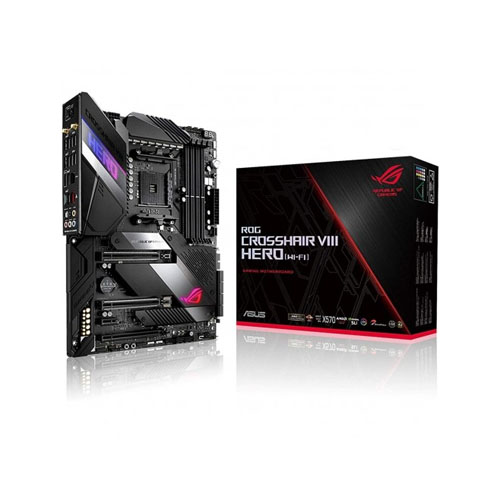

Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard

Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Out Of Stock
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard
  • Stock: Out Of Stock
  • Model: Asus ROG X570 Crosshair VIII Hero Wi-Fi
0৳
Key Features
    • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
    • Robust power delivery
    • Industry-leading ROG audio
    • High-performance networking
Specification
Basic Information
Supported CPU Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset AMD X570
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI 3rd Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
M.2 Socket 3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support
(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices
Memory Specifications
Memory Type Dual Channel Memory Architecture
Slots 4 x DIMM slots
Supported Memory Type 3rd Gen AMD Ryzen Processors
4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/
3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Un-buffered Memory
2nd Gen AMD Ryzen Processors
3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
ECC Memory (ECC mode) support varies by CPU
Max. Memory 128GB
Connector & Ports
USB (s) 3rd Gen AMD RyzenTM Processors :
4 x USB 3.2 Gen 2 port(s)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
6 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
4 x USB 2.0 port(s)
LAN Port (s) Intel I211-AT
Realtek RTL8125-CG 2.5G LAN
ASUS LAN Guard
ROG GameFirst Technology
Supported Storage 3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes)
storage devices support
2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0
x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes)
storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Audio ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
Internal I/O Ports 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Graphics
Graphics 3rd and 2nd Gen AMD Ryzen /3rd Gen AMD Ryzen with Radeon Graphics Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Supports AMD 2-Way CrossFireX Technology
Others Information
Special Features Wireless Data Network:
Intel Wi-Fi 6 AX200
Supports channel bandwidth: HT20/HT40/HT80/HT160
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth: Bluetooth 5.0
Warranty Information
Manufacturing Warranty 03 Years Warranty
Description

FEATURES:

  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed.
  • Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.
  • Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
  • High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.
  • Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

Asus ROG X570 Crosshair VIII Hero WI-FI ATX AM4 Motherboard

Featuring support for 3rd Gen AMD Ryzen™ CPUs, on-board Wi-Fi 6 (802.11ax), Realtek® 2.5 Gbps LAN and PCIe 4.0, coupled with an overhauled metallic design and loaded with renowned ROG features, it's the perfect foundation for your AMD Ryzen rig.  ROG Crosshair VIII Hero comes equipped with an optimized power-design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors without performance-zapping thermal throttling.​ ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system​.  ROG Crosshair VIII Hero offers advanced connectivity to ensure seamless gaming experiences. With the latest ultrafast networking, including Wi-Fi 6 (802.11ax) and dual Ethernet with one 2.5G port, ROG Crosshair VIII Hero removes all bottlenecks for online and LAN play, minimizing lag and providing an overall smoother experience. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.​ ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.​
