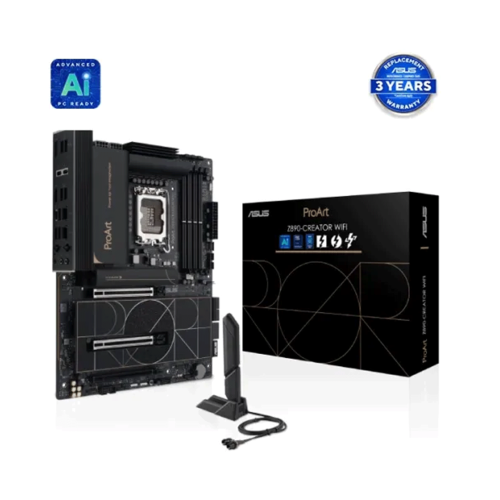

Model: ProArt Z890-CREATOR WIFI
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z890 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*Audio Features - Gold-plated audio jacks - Premium audio capacitors - Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| PCI | Intel Core Ultra Processors (Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel Z890 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) |
| M.2 Socket | Total supports 5 x M.2 slots Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| Slots | 4 x DIMM slots |
| Supported Memory Type | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Support DIMM Fit Support DIMM Flex |
| Max. Memory | 256GB |
| HDMI | 1 x HDMI |
| Display Port (s) | 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs 1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs |
| USB (s) | Rear USB (Total 10 ports) 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 5 ports) 1 x USB 20Gbps (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
| LAN Port (s) | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Supported Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)** 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled. |
| Audio | 2 x Gold-plated audio jacks |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over voltage jumper 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Graphics | 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** 1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1 *** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in. *** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in. *** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt cables. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
| Other Features | RAID : Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. ASUS 5X PROTECTION III / - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box headers - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 reliability- Overcurrent protection |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS Driver Hub ASUS GlideX ASUS CPU-Z CreatonFirst ProArt Creator Hub TurboV Core Thunderbolt™ Share USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
| Manufacturing Warranty | 3 Years |
The ASUS ProArt Z890-CREATOR WIFI is a high-performance ATX motherboard designed to meet the demanding needs of content creators, professionals, and enthusiasts. Built on the Intel Z890 chipset, it supports Intel Core Ultra Series 2 processors with the LGA1851 socket, delivering next-gen computing power for heavy workloads, creative applications, and multitasking. This motherboard features DDR5 memory support with speeds up to 9066+MT/s (OC) and a maximum capacity of 256GB across four DIMM slots, ensuring blazing-fast data transfer and performance. The board supports dual PCIe 5.0 x16 slots, offering advanced graphics and expansion capabilities for creators and professionals relying on GPUs or additional cards. Storage is no issue with five M.2 slots and four SATA 6Gb/s ports, including PCIe 5.0 and 4.0 support, plus RAID configurations for maximum speed and redundancy. For connectivity, it offers dual Ethernet (10Gb + 2.5Gb), Wi-Fi 7, and Bluetooth 5.4, making it future-proof and ideal for high-bandwidth workflows. Video output options include HDMI 2.1 and Thunderbolt 5/4, supporting up to 8K resolution displays for immersive content editing and media production. The Realtek ALC1220P audio codec ensures studio-grade sound quality, with gold-plated jacks, premium capacitors, and dedicated audio layers. Enhanced thermal solutions like VRM heatsinks and M.2 heatsink backplates ensure stability under heavy loads.
