Model: Pro B660M-C D4-CSM
View More Info...
Chat Through
| Type | DDR4 |
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B660 Chipset |
| BIOS | 128Mb Flash ROM |
| Form Factor | microATX 24.4cm x 24.4cm |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
| Slots | 4 x DIMM slots |
| Supported Memory Type | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Max. Memory | 128GB |
| HDMI | 1 x HDMI |
| Display Port (s) | 2 x DisplayPort |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
| D-Sub (s) | 1 x D-Sub |
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Other Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| Manufacturing Warranty | 3 Years |

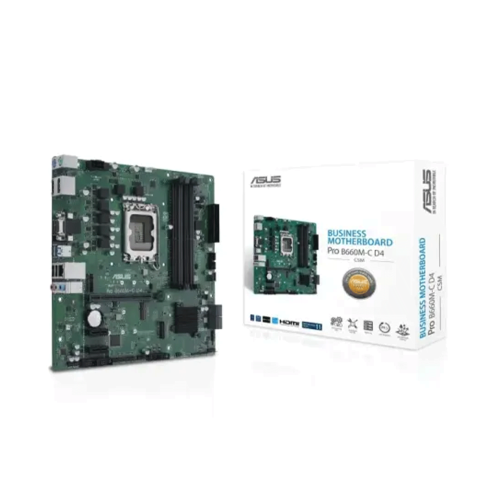

The ASUS Pro B660M-C D4-CSM mATX Motherboard is a reliable, business-ready solution designed to support 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. Built on the Intel B660 chipset, this micro-ATX board is tailored for stability, performance, and essential features that suit both office and professional computing environments. Equipped with DDR4 memory support up to 5000MHz (OC) and a maximum capacity of 128GB across four DIMM slots, it ensures smooth multitasking and responsive application performance. For storage, the motherboard provides two M.2 slots (PCIe 4.0 x4 supported) and four SATA 6Gb/s ports, with RAID 0/1/5/10 support via Intel Rapid Storage Technology, ensuring fast and secure data handling. Graphics output is versatile, featuring HDMI, two DisplayPorts, and a D-Sub port, capable of driving 4K displays at 60Hz, making it ideal for modern workstations. Connectivity options include Intel 1Gb Ethernet with ASUS LANGuard for enhanced network protection, and a Wi-Fi module support slot (Key E) for optional wireless upgrades. Rear I/O includes four USB ports, while internal headers expand connectivity with up to seven front USB ports, including USB 3.2 Gen 1 Type-C support. The board also integrates Realtek 7.1-channel HD audio with support for high-definition playback. Tailored for commercial use, the board features ASUS Self-Recovering BIOS, Event Log, Anti-Moisture coating, and 24/7 reliability testing. Enhanced with ASUS EZ DIY tools and onboard TPM security, it's an excellent choice for IT-managed environments. Additionally, it supports ASUS Control Center Express (ACCE) for efficient remote management. The ASUS Pro B660M-C D4-CSM comes with a 3-year warranty, ensuring dependable service for professional builds.
