Model: PRIME H610M-F D4 R2.0
View More Info...
Chat Through
| Type | DDR4 |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| M.2 Socket | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Slots | 2 x DIMM |
| Supported Memory Type | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
| HDMI | 1 x HDMI port |
| USB (s) | 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |

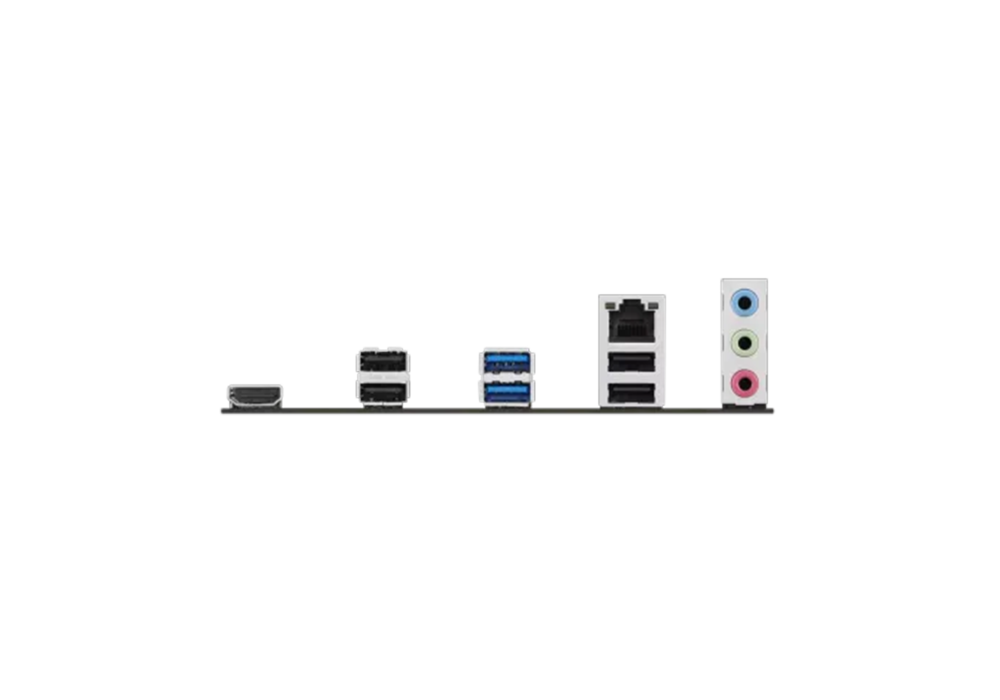

| Internal I/O Ports | Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header |
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1. |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Other Features | Maximum Memory: Max. 64GB |
| Warranty | 3 years |
The ASUS PRIME H610M-F D4 R2.0 DDR4 LGA1700 mATX Motherboard is a reliable and efficient choice for users looking to build a stable and high-performance PC. Designed to support Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, this motherboard is equipped with the Intel H610 chipset, ensuring smooth performance for everyday computing and gaming needs. This mATX motherboard features two DIMM slots, supporting up to 64GB of DDR4 memory with speeds up to 3200MHz. With dual-channel memory architecture and Intel Extreme Memory Profile (XMP) support, users can achieve optimized memory performance. The PCIe 4.0 x16 slot enables high-speed connectivity for graphics cards, while the PCIe 3.0 x1 slot supports additional expansion cards. For storage, the ASUS PRIME H610M-F D4 R2.0 includes one M.2 slot (PCIe 3.0 x4 mode) and two SATA 6Gb/s ports, allowing users to enjoy fast storage solutions for enhanced system responsiveness. The Realtek 1Gb Ethernet ensures a stable and fast wired network connection, making it ideal for gaming and productivity. The motherboard comes with high-quality audio powered by the Realtek 7.1 Surround Sound High Definition Audio CODEC, offering an immersive audio experience. Additional ASUS 5X PROTECTION III features, such as DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-steel back I/O, provide robust durability and reliability. Connectivity options include HDMI, USB 5Gbps ports, USB 2.0 ports, and audio jacks. The Armoury Crate and AI Suite 3 software offer enhanced customization and system monitoring. Backed by a 3-year warranty, the ASUS PRIME H610M-F D4 R2.0 is a solid choice for budget-friendly PC builds.
