Model: PRIME H610I-PLUS
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot |
| M.2 Socket | 1 x M.2 slots |
| Slots | 2x DIMM |
| Supported Memory Type | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Max. Memory | Max. 96GB |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| LAN Port (s) | 1 x Intel 1Gb Ethernet port |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | 3x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| VGA (s) | 1 x VGA port |
| Graphics | Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1 |
| Other Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Manufacturing Warranty | 3 years warranty |

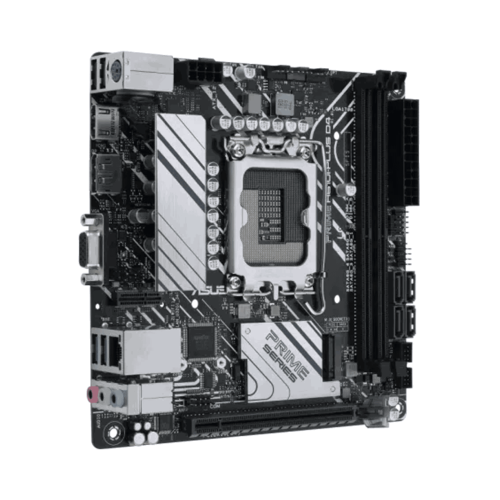

The ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard is a compact yet powerful motherboard designed for Intel’s latest processors, including 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron CPUs. Built with a Mini ITX form factor (6.7" x 6.7"), it’s perfect for building small yet high-performance systems, whether for gaming, content creation, or general productivity. Equipped with the Intel H610 chipset, this motherboard supports DDR5 memory with speeds up to 5600 MHz (OC), and can accommodate up to 96GB of RAM through 2 DIMM slots. This ensures that your system remains responsive and future-proof for demanding tasks. Additionally, it supports Intel Extreme Memory Profile (XMP), allowing for easy overclocking to push memory performance even further. For graphics, the PRIME H610I-PLUS includes both HDMI 2.1 and DisplayPort 1.4 outputs, supporting up to 4K resolution at 60Hz, ensuring crisp, high-quality visuals. Whether you're using a dedicated GPU or integrated graphics, the board delivers impressive display capabilities. Storage options include 1 x M.2 slot and 4 x SATA 6Gb/s ports, offering ample room for fast storage devices like SSDs, and traditional hard drives. You can expand your system's storage capacity without compromising speed. Networking is handled by a 1Gb Intel Ethernet port, with the option to add wireless connectivity through an M.2 Wi-Fi module (sold separately). The motherboard also features USB 3.2 Gen 1 ports for high-speed data transfer, as well as front USB headers for additional connectivity. ASUS has built in a range of protective features under the 5X Protection III umbrella, including SafeSlot Core, DIGI+ VRM, and Overvoltage Protection, ensuring durability and reliability. The aluminum heatsink design helps keep temperatures in check, even during intense workloads. With a 3-year warranty, the ASUS PRIME H610I-PLUS DDR5 is a solid choice for users looking for performance and reliability in a compact motherboard.
