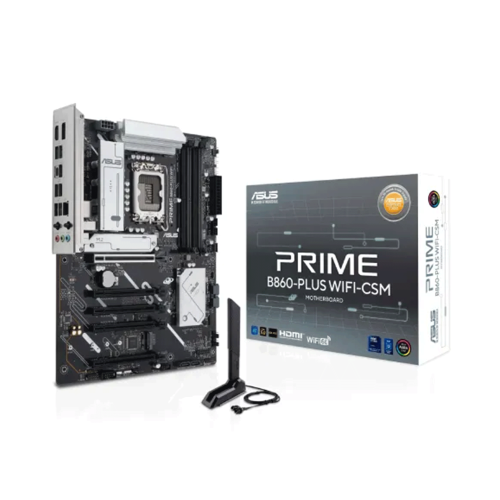

Model: PRIME B860-PLUS WIFI-CSM
View More Info...
Chat Through
| Type | DDR5 |
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
| Chipset | INTEL B860 |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports up to 24-Bit/192 kHz playback |
| PCI | Intel Core Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) |
| M.2 Socket | 2 x M.2 |
| Slots | 4 |
| Supported Memory Type | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) |
| Max. Memory | 256GB |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps port (1 x USB Type-C) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types |
| Other Features | RAID: SATA RAID 0/1/5/10 ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Manufacturing Warranty | 3 Year warranty |
The ASUS PRIME B860-PLUS WIFI-CSM is a powerful and future-ready ATX motherboard designed to support the latest Intel Core Ultra Series 2 processors on the LGA 1851 socket. Built on the Intel B860 chipset, it delivers reliable performance, next-gen connectivity, and enhanced durability, making it ideal for both productivity and gaming-focused builds. With support for DDR5 memory up to 8666+ MT/s (OC) and a total capacity of 256GB across four DIMM slots, this motherboard is engineered for speed and multitasking. It includes one PCIe 5.0 x16 slot for cutting-edge GPUs and four additional PCIe 4.0 slots, offering expansion flexibility for additional cards. Storage performance is top-notch, thanks to two M.2 slots supporting PCIe 5.0 and 4.0, and four SATA 6Gb/s ports, with RAID support via Intel Rapid Storage Technology. For display output, the board features 1 x HDMI 2.1 and 1 x DisplayPort, making it suitable for integrated graphics setups. Connectivity is robust, with Wi-Fi 6E, Bluetooth 5.3, and 2.5Gb Ethernet (Realtek), ensuring fast and stable network performance. USB connectivity includes a USB 20Gbps Type-C port, multiple USB 10Gbps and 5Gbps ports, and support for front-panel USB-C. ASUS has packed this board with premium features including 5X Protection III, DIGI+ VRM, Q-Design for easy installation, Aura Sync RGB, and M.2/VRM heatsinks for effective cooling. It also comes with ASUS-exclusive software like Armoury Crate, Fan Xpert 2+, AI Advisor, and trial versions of Norton and Adobe Creative Cloud. With a 3-year warranty, rich features, and support for the latest Intel platform, the ASUS PRIME B860-PLUS WIFI-CSM offers an excellent foundation for powerful and efficient next-gen PC builds.
