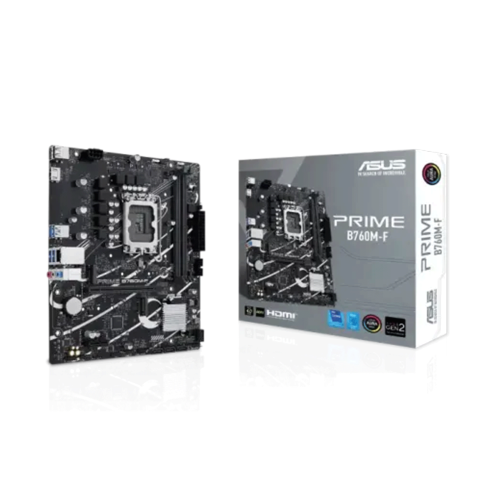

Asus PRIME B760M-F mATX Motherboard

Asus PRIME B760M-F mATX Motherboard

The Asus PRIME B760M-F mATX Motherboard is a versatile and feature-packed motherboard designed for Intel’s latest generation processors. Compatible with Intel Socket LGA1700, it supports Intel Core 14th, 13th, and 12th Gen processors, offering a high-performance platform for gaming, content creation, and everyday tasks. This board also supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 for enhanced processor performance. Built around the Intel B760 chipset, the B760M-F supports DDR5 memory with overclocking capabilities, enabling speeds up to 8000 MHz (OC), and a maximum capacity of 96GB. This provides ample memory for multitasking and demanding applications. The motherboard features two DIMM slots and supports Intel XMP profiles, ensuring ease of memory overclocking for power users. For expansion, the motherboard offers a PCIe 4.0 x16 slot for high-speed graphics cards and PCIe 4.0 x1 for other add-ons. Additionally, the B760M-F supports two M.2 slots for fast NVMe SSDs, as well as four SATA 6Gb/s ports for traditional storage drives. On the connectivity front, the motherboard includes six USB ports on the rear, including four USB 5Gbps Type-A ports, and support for additional front USB connections. The 1Gb Ethernet port powered by Realtek provides stable network connectivity, while three audio jacks support high-definition audio for immersive sound. This board also comes equipped with RAID support, ASUS’s 5X Protection III, and Aura Sync for customizable RGB lighting. It features easy BIOS management with EZ Flash 3 and CrashFree BIOS 3. The Asus PRIME B760M-F is backed by a 3-year warranty, making it a reliable choice for building a high-performance PC.

Asus PRIME B760M-F mATX Motherboard Features

• Intel 12th, 13th, and 14th Gen CPU Support: Socket LGA1700 compatibility with Intel Core 12th, 13th, and 14th Gen processors. Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 for enhanced processor performance.
• Memory and Overclocking: Dual Channel DDR5 support, with overclocking speeds up to 8000 MHz (OC). Max 96GB RAM capacity, supporting Intel XMP for easy overclocking profiles. Ideal for demanding applications, gaming, and content creation.
• Expansion Slots: 1 x PCIe 4.0 x16 slot for high-speed GPUs. 1 x PCIe 4.0 x1 slot for additional expansion cards. 2 x M.2 slots (supports PCIe 4.0 x4) for fast SSD storage.
• Storage and Connectivity: 4 x SATA 6Gb/s ports for traditional hard drives or SSDs. 1 x HDMI port for video output with 4K@30Hz support (HDMI 1.4).
• 6 USB ports on the rear: 4 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A. USB headers for front panel connections, supporting additional ports.
• Audio and Networking: Realtek 7.1 Surround Sound HD Audio CODEC with features like jack-detection, multi-streaming, and support for 24-bit/192kHz playback. 1 x Realtek 1Gb Ethernet port for reliable network connectivity. 3 x Audio jacks for enhanced audio input/output.
• RAID and Storage Technology: Intel Rapid Storage Technology for RAID 0/1/5/10 support, improving storage performance and redundancy.
• ASUS 5X Protection III: DIGI+ VRM for precise voltage regulation. LANGuard for network protection and SafeSlot Core for durability. Stainless-steel back I/O for enhanced physical strength and protection.
• Cooling and Power: ProCool power connectors for stable power delivery. Multiple fan headers (1 x CPU, 2 x chassis fans) with support for advanced cooling solutions.
• RGB and Aesthetics: Aura Sync support with Addressable Gen 2 headers for customizable RGB lighting.
• EZ DIY tools: CrashFree BIOS 3, EZ Flash 3, and UEFI BIOS EZ Mode for easy setup and BIOS recovery.
• Q-Design: Features like Q-DIMM, Q-Slot, and Q-LED Core simplify installation and troubleshooting.
• Bundled Software: Armoury Crate for system control and Fan Xpert 2+ for fan management. AI Suite 3 with Two-Way AI Noise Cancelation and Power Saving features.
• Warranty: 3-year warranty ensuring durability and reliability.
