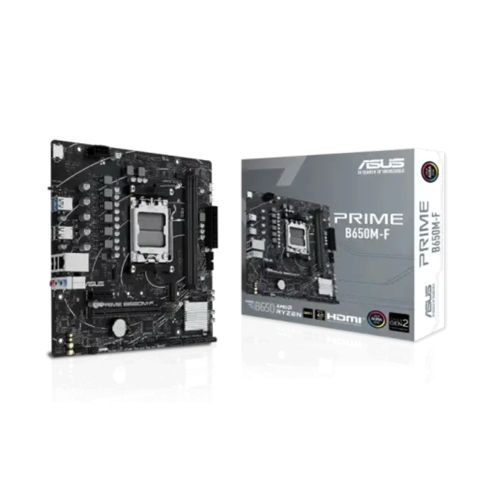

Asus PRIME B650M-F AM5 mATX Motherboard

Asus PRIME B650M-F AM5 mATX Motherboard

The Asus PRIME B650M-F AM5 mATX Motherboard is a high-performance micro-ATX board designed to support AMD's latest Ryzen 9000, 8000, and 7000 Series Desktop Processors via the advanced AM5 socket. Built around the AMD B650 chipset, this motherboard is tailored for modern-day computing needs, offering robust performance, efficient cooling, and broad connectivity. It features DDR5 memory support with dual-channel architecture and two DIMM slots, allowing up to 96GB of memory, supporting speeds up to 7200+ MHz (OC). For expansion, it provides a PCIe 4.0 x16 slot and a PCIe 4.0 x1 slot, ensuring high-speed connectivity for graphics cards and other add-ons. Storage options are extensive with one PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports, enabling fast boot and data access. The board includes Realtek 7.1 HD audio, with premium capacitors and dedicated audio PCB layers, enhancing the overall audio experience. Connectivity is covered with a total of 12 USB ports (6 rear, 6 front), 1 HDMI 2.1 port supporting 4K@60Hz, and Realtek 1Gb Ethernet for stable networking. On the cooling front, the motherboard is equipped with multiple fan headers and an aluminum heatsink design to maintain optimal thermal performance. It also features ASUS-exclusive technologies like 5X Protection III, Q-Design for easy installation, and Aura Sync RGB with addressable Gen 2 headers for stylish customization. For DIY enthusiasts, features like the BIOS FlashBack button, Q-LED core, and CrashFree BIOS 3 make setup and maintenance simple. Bundled with utilities such as Armoury Crate, AI Suite 3, and a 60-day trial of Norton 360 Deluxe, the Asus PRIME B650M-F is a versatile and durable motherboard ideal for gamers and creators alike.

Asus PRIME B650M-F AM5 mATX Motherboard Features

• Support for Latest AMD Ryzen Processors: Socket AM5 compatible with AMD Ryzen 9000, 8000, and 7000 Series desktop processors. PCIe 4.0 support for high-speed data transfer.
• Memory Support: Dual Channel DDR5 Memory: Supports high-frequency DDR5 memory overclocking, with speeds up to 7200+ MHz. Max 96GB memory capacity for heavy multitasking and demanding applications.
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC for superior audio quality. Features include audio shielding, premium capacitors, and dedicated audio PCB layers for enhanced sound performance.
• Expansion Slots and Storage: 1 x PCIe 4.0 x16 slot for high-performance GPUs. 1 x PCIe 4.0 x1 slot for additional expansion cards. 1 x M.2 PCIe 4.0 x4 slot for ultra-fast storage. 4 x SATA 6Gb/s ports for additional storage devices.
• Connectivity: 6 USB ports (2 x USB 5Gbps Type-A and 4 x USB 2.0 Type-A) on the rear. Front panel USB headers supporting extra USB ports. 1 x HDMI 2.1 port with 4K @ 60Hz support. 1 x Realtek 1Gb Ethernet port for fast networking.
• Cooling and Power: 3 x Addressable Gen 2 headers for RGB lighting and cooling customization. Multiple fan headers (1 x CPU fan and 2 x chassis fans) to maintain optimal temperatures. 8-pin +12V power connector for stable power delivery.
• RAID Support: RAID 0/1/10 support through AMD RAIDXpert2 technology for improved storage performance and redundancy.
• ASUS 5X PROTECTION III: DIGI+ VRM for precise voltage regulation. LANGuard for enhanced network protection. SafeSlot Core and Stainless-Steel Back I/O for physical durability. Overvoltage Protection for hardware longevity.
• User-Friendly Features: ASUS Q-Design: Simplified installation with Q-DIMM, Q-Slot, and Q-LED. BIOS FlashBack button for easy BIOS recovery. Aura Sync for customizable RGB lighting.
• EZ DIY tools: CrashFree BIOS 3, EZ Flash 3, and UEFI BIOS EZ Mode for hassle-free setup.
• Software Suite: Armoury Crate for centralized system control. AI Noise Cancelation and Fan Xpert 2+ for smart system cooling and noise reduction. Norton 360 Deluxe (60 days free trial) and WinRAR (40 days free trial) bundled for extra value.
• Warranty: 3-Year Manufacturing Warranty for peace of mind.
