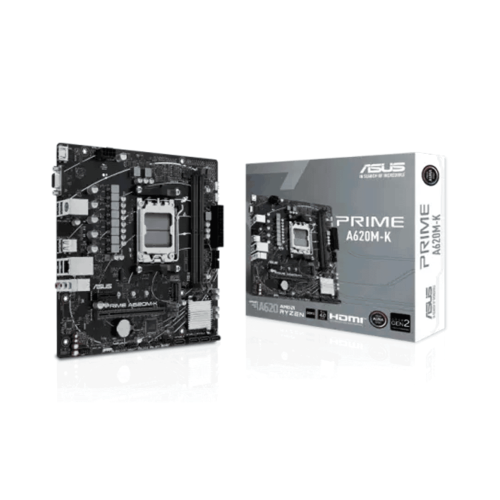

Asus PRIME A620M-K AM5 mATX Motherboard

Asus PRIME A620M-K AM5 mATX Motherboard

The Asus PRIME A620M-K AM5 mATX Motherboard is designed for users seeking reliable performance and future-proofing with AMD’s latest Ryzen 9000, 8000, and 7000 Series Desktop Processors. Built with an AMD A620 chipset, this motherboard offers excellent value for budget-conscious builds without sacrificing crucial features. Supporting DDR5 memory, the motherboard boasts 2 DIMM slots that can accommodate up to 96GB of memory, with overclocking support for speeds up to 7200+ MT/s (OC). This makes it ideal for multitasking, gaming, and content creation. It also supports AMD Extended Profiles for Overclocking (EXPO), providing users with an easy way to push memory performance. The PCIe 4.0 x16 slot ensures high-speed expansion for graphics cards, while the inclusion of a PCIe 3.0 x1 slot offers additional options for other expansion cards. The motherboard also includes 1 x M.2 slot (PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports for fast and flexible storage solutions, with support for AMD RAIDXpert2 Technology, allowing users to set up RAID arrays for better performance or redundancy. Connectivity options are abundant, with 6 rear USB ports, including USB 3.2 Gen 1 and USB 2.0 ports. The board also features 1 x Realtek 1Gb Ethernet port for fast networking and 3 x audio jacks for a premium audio experience. For video output, users can utilize the HDMI port or the VGA port. The Asus PRIME A620M-K includes various durability and protection features like ASUS 5X PROTECTION III, DIGI+ VRM, and SafeSlot Core, ensuring a robust and reliable system. With Aura Sync and customizable RGB headers, users can also personalize their builds with dynamic lighting effects. Backed by a 3-year warranty, the Asus PRIME A620M-K is a solid choice for anyone building a capable and cost-effective AMD-based desktop.

Asus PRIME A620M-K AM5 mATX Motherboard

• AMD Ryzen Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors with the AM5 socket for excellent performance and future-proofing.
• DDR5 Memory Support: Features 2 x DIMM slots for DDR5 memory, with support for speeds up to 7200+ MT/s (OC), allowing for faster and more efficient multitasking.
• Dual Channel Memory Architecture: Offers improved memory performance with Dual Channel support and AMD Extended Profiles for Overclocking (EXPO) for custom memory configurations.
• Expansion Slots: Equipped with a PCIe 4.0 x16 slot (x16 mode for Ryzen 9000 & 7000 Series, x8/x4 mode for Ryzen 8000 Series) for high-speed graphics cards and 1 PCIe 3.0 x1 slot for other expansion cards.
• Storage Options: Includes 1 x M.2 slot supporting PCIe 4.0 x4 mode and 4 x SATA 6Gb/s ports for flexible storage configurations. It also supports RAID 0/1/10 with AMD RAIDXpert2 technology for improved performance and redundancy.
• USB Ports: Offers 6 rear USB ports, including 4 x USB 3.2 Gen 1 (5G) and 2 x USB 2.0 ports. It also has 1 USB 3.2 Gen 1 header and 2 USB 2.0 headers for additional expansion.
• Networking: Features a Realtek 1Gb Ethernet port for stable and fast network connections.
• Audio: Includes Realtek 7.1 Surround Sound HD Audio CODEC, Audio Shielding, Premium audio capacitors, and Dedicated audio PCB layers for high-quality sound.
• Thermal Solution: Equipped with an aluminum heatsink design and multiple fan headers to ensure proper cooling during intensive tasks.
• Aura Sync and RGB: Supports customizable lighting with Aura Sync, Aura RGB header, and 2 x Addressable Gen 2 headers for personalized visual effects.
• ASUS 5X Protection III: Enhanced protection features including DIGI+ VRM, LANGuard, SafeSlot Core, and overvoltage protection to ensure durability and reliability.
• UEFI BIOS: Easy-to-use UEFI BIOS with EZ Mode and CrashFree BIOS 3 for quick system recovery.
• Bundled Software: Comes with Armoury Crate, AI Suite 3, TurboV EVO, and Fan Xpert to optimize performance and energy efficiency.
• Warranty: Backed by a 3-year warranty, offering peace of mind for long-term use.
