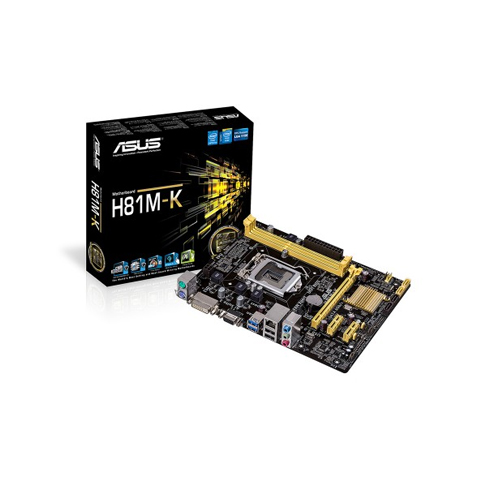

Asus H81M-K 4th Gen Motherboard

Basic Information
Chipset Intel H81
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor uATX Form Factor
8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
Audio Realtek ALC887/897 8-Channel High Definition Audio CODEC
- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Others PCI: 1 x PCIe x16
2 x PCIe 2.0 x1
Graphics
Graphics Integrated Graphics Processor
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Max Shared Memory 1024 MB
Memory
Type DDR3
Slots 2 x DIMM
Supported Memory 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 16GB
Connector & Ports
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI
USB (s) Intel H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
LAN Port (s) Realtek 8111G, 1 x Gigabit LAN Controller(s)
Supported Storage Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology
Audio 3 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Others
Special Features ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
Warranty Information
Warranty 3 Years

Asus H81M-K 4th Gen Motherboard Price in Bangladesh

The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/ i5/ i3/ Pentium/ Celeron processors. This motherboard supports Intel 4th generation Core i7/ i5/ i3/ Pentium/ Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Runner regulators integrated to support onboard plates affair with devoted chipsets, 2- channel (2 DIMM) DDR3 memory, and 16 PCI Runner lanes. It natively supports up to two USB3.0 anchorages for over to ten times faster transfer rates than USB2.0. Also, the Intel ® H81 chipset also supports iGPU functionality, letting druggies enjoy the rearmost Intel intertwined plates performance. ASUS USB3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170, adding to formerly fast USB3.0 performance. ASUS software automatically accelerates data rates for compatible USB3.0 peripherals without any stoner commerce.
