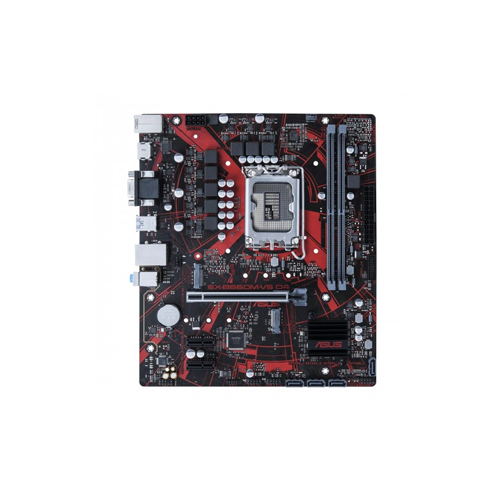

ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard

ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
Out Of Stock
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
ASUS EX-B660M-V5 D4 12th Gen M-ATX Motherboard
  • Stock: Out Of Stock
  • Model: EX-B660M-V5 D4
0৳
Key Features
    • Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
    • DDR4 5333 (OC), two M.2 slots, PCIe 4.0
    • HDMI, D-Sub, USB 3.2 Gen 1
    • Luminous Anti-moisture Coating
Specification
Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B660 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Premium audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
Memory Specifications
Memory Type DDR4
Slots 2 x DIMM
Supported Memory Type 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)
Max. Memory 64GB
Connector & Ports
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.

Intel B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio 3 x Audio jacks
Internal I/O Ports Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
D-Sub (s) 1 x D-Sub port
Graphics
Graphics 1 x D-Sub port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Others Information
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS EZ DIY
- ProCool

Non-stop Action
- Lightning Boot

Non-stop Challenger
- ASUS iCafe labs certified

Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Others PCI: Intel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
M.2 Socket: 2 x M.2 slots
Warranty Information
Warranty 3 years
Description

ASUS EX-B660M-V5 D4 Motherboard Price in Bangladesh

The ASUSEX-B660M-V5 D4 Supports Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel Turbo Boost Technology2.0 and Intel Turbo Boost Max Technology3.0. It features including 8- leg ProCool connector, luminousanti-moisture coating, USBGuard, LANGuard, SafeSlot Core, Stainless- sword reverse I/ O, and 5X Protection III. This motherboard offers DDR4 5333 (OC), twoM. 2 places, PCIe4.0, ASUS Beyond VR ready, and Grand audio. This 12th Gen motherboard is especially made fornon-stop action, featuring Lightning Charge for faster Memoirs charge-up. These Passage motherboards are finagled for long- lasting continuity to cover against humidity, erosion, and overvoltage damage. It comes with an innovative humidity-resistant coating that provides comprehensive protection to protract the life of your Passage motherboard. This motherboard has 120-advanced overvoltage forbearance than standard to insure stable and dependable input voltages. ASUS LANGuard is tackle- position networking protection that employs signal- coupling technology and decorationanti-EMI face- mounted capacitors icing a more dependable connection and better outturn, plus electrostatically- guarded and launch- defended factors for lesser forbearance to stationary electricity and bettered protection against surges. It has a Q-LED Core display that produces light patterns by the power LED during the Power-On Self-Test (POST) that can help druggies troubleshoot implicit issues.
