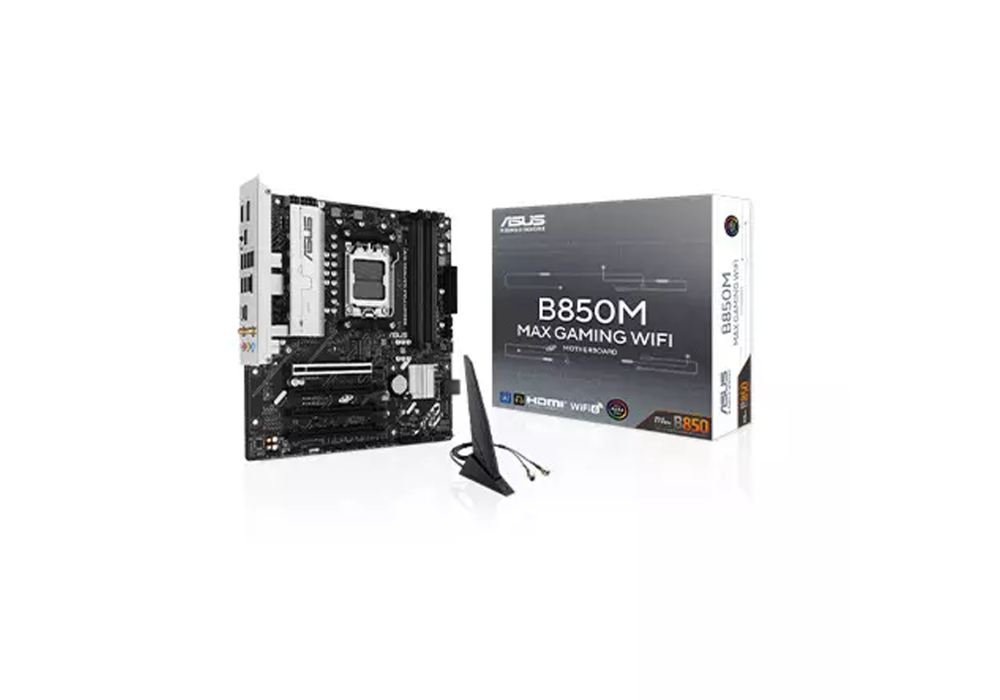

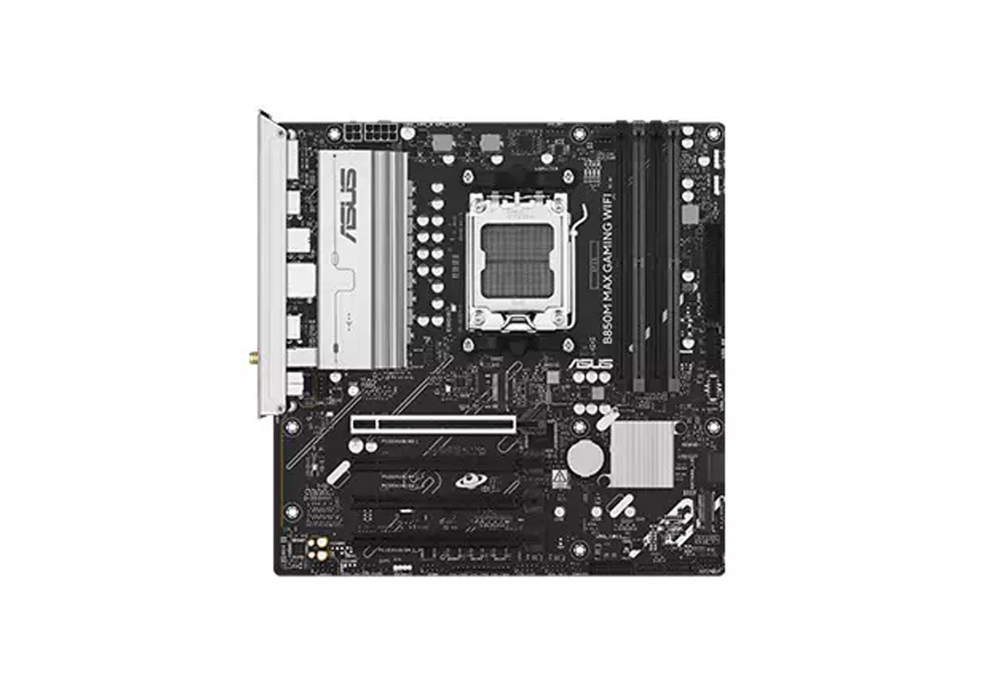

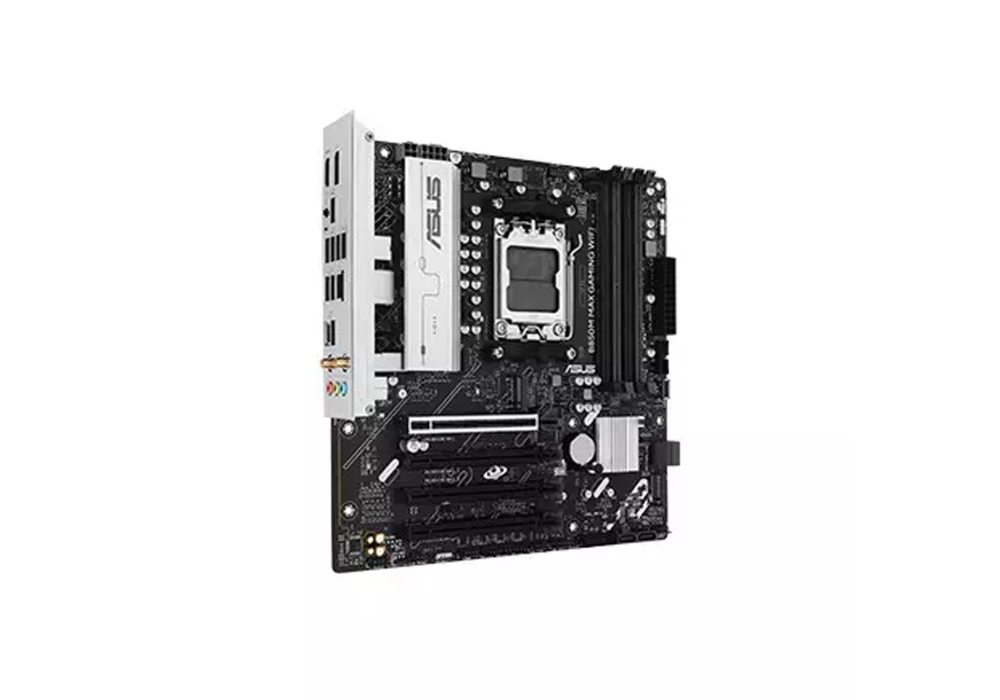

- Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard
- Stock: Out Of Stock
- Model: B850M MAX GAMING WIFI
- Supported CPU: AMD Ryzen 7000/8000/9000 series
- Form Factor: mATX (24.4 cm x 24.4 cm)
- Memory Max: 256GB DDR5
- RAM Type: DDR5
| Basic Information | |
| Processor | Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Chipset | AMD B850 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Operating System | Windows 11, Windows 10 64-bit |
| Motherboard | |

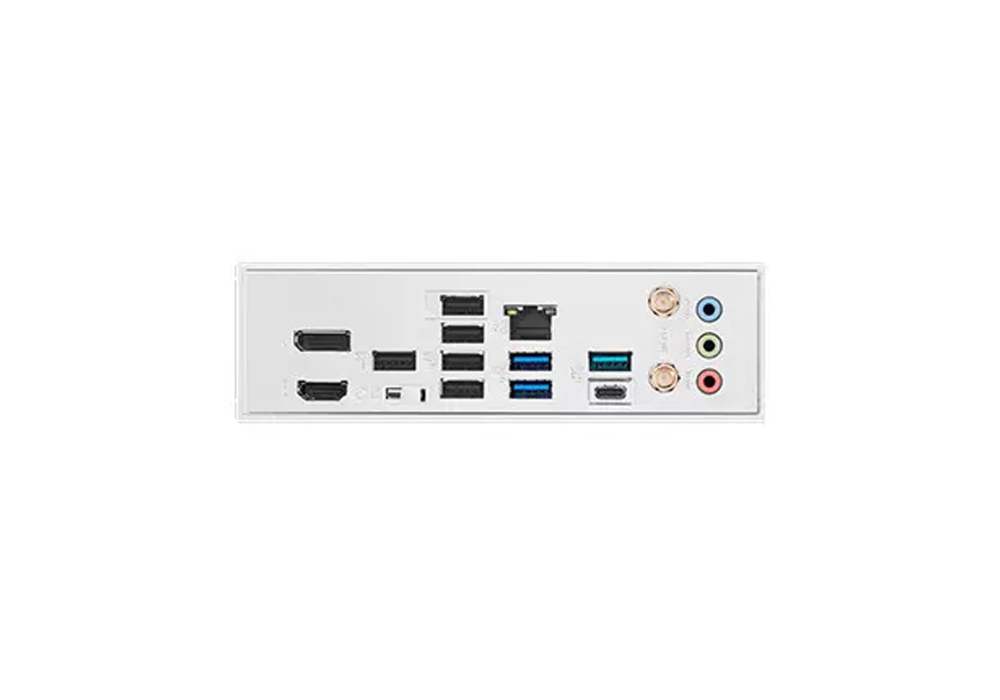

| External I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** 3 x PCIe 4.0 x16 slot (support x1 mode) Please check the PCIe bifurcation table on the support site |
| Connector & Ports | |
| HDMI | 1 x HDMI™ port*** |
| Network & Wireless Connectivity | |
| Bluetooth | Bluetooth v5.4 |
| Network & Connectivity | |
| USB | 1 x USB 5Gbps connector (supports USB Type-C ) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Graphics | |
| Graphics | Graphics Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| Others Information | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
| Ports & Slots | |
| Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Network & Connectivity | |
| LAN | 1 x Realtek 1Gb Ethernet ASUS LANGuard ASUS LANGuard |
| WiFi | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency |
| Physical Specification | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
| Warranty Information | |
| Warranty | 3 years |
Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard
The Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard redefines what a modern gaming setup can achieve. Built for gamers, content creators, and PC enthusiasts, this motherboard combines cutting-edge technology with robust performance. Designed in the compact mATX form factor, it offers the perfect balance between space-saving design and high-end features, making it ideal for custom gaming rigs or powerful small-form-factor builds. With DDR5 memory support, this motherboard ensures lightning-fast data transfer speeds, allowing your games and applications to run smoothly without any lag. Its AMD chipset compatibility ensures optimal performance with the latest AMD processors, while the integrated Wi-Fi module offers fast and reliable connectivity for online gaming, streaming, and collaboration.
Gamers will appreciate the enhanced durability, multiple PCIe slots, and high-quality audio components, delivering immersive gameplay experiences. The Asus B850M MAX GAMING WIFI also prioritizes thermal management, featuring advanced heatsinks and efficient cooling solutions to maintain peak performance even during marathon gaming sessions. Whether you’re building a gaming powerhouse, a multimedia editing station, or a compact workstation, this motherboard provides the flexibility and reliability you need. With future-ready connectivity options, including USB 3.2 ports, M.2 slots, and Wi-Fi 6 support, your system stays fast, versatile, and upgradable. In short, the Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard is a perfect blend of performance, style, and innovation, designed to elevate your gaming and computing experience to the next level.
Key Features of Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard
- DDR5 Memory Support – Experience lightning-fast performance with next-gen DDR5 RAM, perfect for gaming and multitasking. With higher bandwidth and lower latency compared to DDR4, it ensures your applications load faster and run smoother. Ideal for content creation, heavy multitasking, and demanding modern games.
- AMD Compatible Chipset – Optimized for the latest AMD processors, ensuring smooth and reliable computing. The motherboard maximizes CPU efficiency and stability, allowing you to push your system to its full potential. Compatible with both current and upcoming AMD CPUs for future-proof builds.
- Integrated Wi-Fi 6 – Enjoy fast, stable wireless connectivity for online gaming, streaming, and downloads. Wi-Fi 6 offers lower latency and higher network efficiency, making it perfect for competitive gaming. Say goodbye to lag spikes and enjoy seamless streaming even in crowded networks.
- Robust Thermal Design – Advanced heatsinks and cooling solutions keep your system stable under heavy loads. Intelligent fan control and optimized airflow prevent overheating during long gaming sessions. This ensures consistent performance and prolongs the lifespan of your components.
- Multiple PCIe & Expansion Slots – Supports GPUs, storage devices, and add-on cards for future upgrades. Flexible slot configuration allows for multi-GPU setups, high-speed NVMe SSDs, and other expansion needs. Perfect for gamers and professionals who demand versatility in their systems.
- High-Quality Audio & Connectivity – Immersive sound experience with premium audio components and versatile USB 3.2/M.2 connectivity. Crystal-clear audio enhances gaming and multimedia experiences, while multiple high-speed ports allow easy connection of peripherals and external storage devices.
The Asus B850M MAX GAMING WIFI motherboard is more than just a component – it’s a foundation for your ultimate gaming and productivity setup. Combining speed, reliability, and advanced connectivity, it ensures your system runs at peak performance while providing the flexibility for future upgrades. Whether building a high-performance gaming rig or a compact workstation, this motherboard delivers exceptional value and durability.
Best Gaming Setup with the Asus B850M MAX GAMING WIFI from Onix BD
Elevate your PC performance with the Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard, now available at Onix BD. Built for gamers and professionals, it offers lightning-fast DDR5 memory support and a robust AMD compatible chipset for seamless multitasking. Looking for alternatives? Check out the Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard for high-end performance. Perfect for any AMD Ryzen Motherboard build, this motherboard ensures stable connectivity with integrated Wi-Fi 6 and immersive audio. Part of the trusted ASUS motherboard lineup, it’s designed for durability and future-proof upgrades. Grab yours today and experience unmatched speed, reliability, and gaming excellence!
