- Stock: In Stock
- Brand: ASRock
- Model: H81M-VG4 R4.0
Key Features
- Supports 4th Generation Intel Core Processors Socket 1150
- Supports Dual Channel DDR3 1600
- 1 PCIe 2.0 x16 1 PCIe 2.0 x1
- Graphic Output D Sub
Basic Information | |
Supported CPU | Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) Supports Intel Turbo Boost 2.0 Technology |
Chipset | Intel H81 |
BIOS | 32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment |
Form Factor | Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design |
Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection |
Expansion Slots | |
PCI | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot |
Memory Specifications | |
Type | Dual Channel DDR3/DDR3L Memory Technology |
Slots | 2 x DDR3/DDR3L DIMM Slots |
Supported Memory | Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory |
Max. Memory | 16GB |
Connector & Ports | |
HDMI | 1 x HDMI Port (HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz) |
USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
Supported Storage | 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
Audio | HD Audio Jack: Line in / Front Speaker / Microphone |
Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) TPM (Trusted Platform Module ) 1 x TPM Header |
TPM (Trusted Platform Module ) | 1 x TPM Header 1 x SPI TPM Header |
D-Sub (s) | 1 x D-Sub Port |
DVI-D (s) | 1 x DVI-D Port |
Graphics | |
Graphics | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
Max Shared Memory | 1024MB |
Warranty Information | |
Manufacturing Warranty | 3 years |

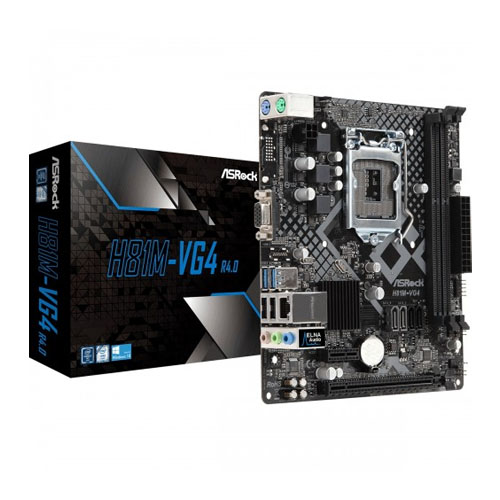

ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard
The ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard supports Intel 4th Generation Intel Core Processors (Socket 1150) and Dual Channel DDR3 1600. The Motherboard comes with 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. It features a D-Sub port for graphic output. It is built with a High-Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections. The ASRock H81M-VG4 R4.0 features a solid capacitor design. The motherboard offers full spike protection. It includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
