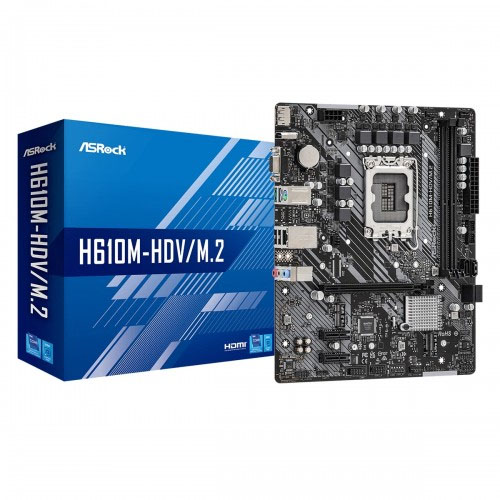

ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard

Basic Information
Supported CPU Supports 12th Gen Intel Core Processors (LGA1700)
Digi Power design
6 Power Phase design
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Chipset Intel H610
BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Solid Capacitor design
Audio 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
Supports Surge Protection
Graphics
Graphics Intel Xe Graphics Architecture (Gen 12)
Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DDR4 DIMM Slots
Supported Memory Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory 64GB
Expansion Slots
PCI 1 x PCIe Gen4x16 Slot
2 x PCIe Gen3x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Connector & Ports
Display Port (s) 1 x DisplayPort 1.4
TPM (Trusted Platform Module ) 1 x SPI TPM Header
HDMI 1 x HDMI Port
D-Sub (s) 1 x D-Sub Port
DVI-D (s) 1 x DVI-D Port
USB (s) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
LAN Port (s) Gigabit LAN 10/100/1000 Mb/s
Giga PHY Intel I219V
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports UEFI PXE
Supported Storage 4 x SATA3 6.0 Gb/s Connectors
1 x Ultra M.2 Socket (M2_2, Key M)
supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
Audio HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports 1 x COM Port Header
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Others Information
Special Features ASRock Super Alloy
Premium Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty 3 years

ASRock H610M-HDV/M.2 12th Gen Micro ATX Motherboard

The ASRock H610M-HDV/M.2 Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features a 6 Phase Power Design and it supports DDR4 3200MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced.

PCIe Gen3 x4 Ultra M.2 interface

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs

It comes with a D-Sub + DisplayPort + HDMI combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz. D-Sub with max. resolution up to 1920x1200 @ 60Hz. It comes with support HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports.
