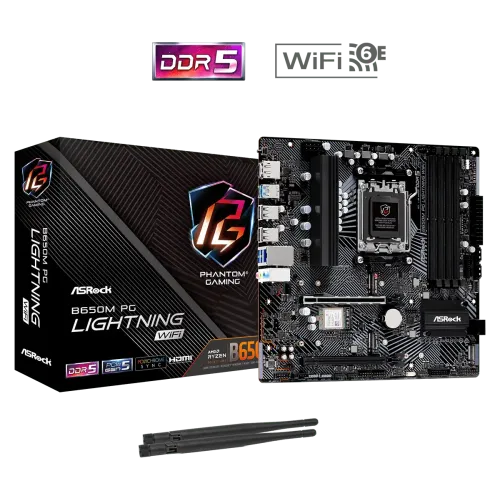

Model: B650M PG Lightning WiFi
View More Info...
Chat Through
| Supported CPU | - Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Slot | 4x DIMMs |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory Type | DDR5 |
| Maximum Memory | 256GB |
| HDMI | 1 x HDMI Port |
| Display Port (s) | 1 x DisplayPort 1.4 |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless Communication module | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| Manufacturing Warranty | 3 Years |
The ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard is a modern and feature-packed platform designed for AMD Ryzen 7000-series processors. With support for the AM5 socket and DDR5 memory, this board delivers improved bandwidth, faster responsiveness, and efficient multitasking for gaming, content creation, and everyday computing. Its compact Micro ATX form factor makes it perfect for space-efficient builds without sacrificing expandability. Equipped with built-in WiFi, PCIe 4.0 support for graphics cards and NVMe SSDs, multiple M.2 slots, and high-speed USB connectivity, this motherboard balances performance, connectivity, and convenience for mainstream PC builders in Bangladesh.
AM5 socket supporting AMD Ryzen 7000 series CPUs
DDR5 memory support for faster performance
Integrated WiFi for wireless internet access
PCIe 4.0 slots for graphics and NVMe SSDs
Multiple M.2 NVMe SSD slots
USB 3.x high-speed connectivity
Micro ATX form factor for compact builds
This motherboard supports high-performance DDR5 RAM, enabling smoother multitasking, quicker load times, and improved overall system performance.
The Micro ATX design provides a great balance between space-saving size and expansion options, allowing you to install modern GPUs, fast storage, and high-speed peripherals.
Choose this motherboard for a well-rounded AMD platform with strong connectivity, reliable performance, and built-in WiFi, perfect for gaming, productivity, and everyday use in compact PC builds.
Future-ready support for Ryzen AM5 CPUs
Fast, efficient DDR5 memory compatibility
Convenient wireless networking
Strong storage and graphics expansion
Ideal for small to mid-size PC builds
