- Stock: Up Coming
- Brand: ASRock
- Model: H510M-HDV/M.2
Key Features
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
- Supports DDR4 5000MHz OC
- Graphics Output HDMI DVI-D D-Sub
Basic Information | |
Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 6 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology |
Chipset | Intel B560 |
BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment |
Form Factor | - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm - Solid Capacitor design |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
Expansion Slots | |
PCI | 11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core Processors - 1 x PCI Express 3.0 x16 Slot - 2 x PCI Express 3.0 x1 Slots |
Memory Specifications | |
Type | Dual Channel DDR4 Memory Technology |
Slots | 2 x DDR4 DIMM Slots |
Supported Memory | - 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) - 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
Max. Memory | Max. capacity of system memory: 64GB |
Connector & Ports | |
HDMI | 1 x HDMI Port |
USB (s) | Connector: - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
Audio | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
Internal I/O Ports | Connector: - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
D-Sub (s) | 1 x D-Sub Port |
DVI-D (s) | 1 x DVI-D Port |
Graphics | |
Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports |
Others Information | |
Bundled Software | - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN |
Warranty Information | |
Manufacturing Warranty | 3 years |

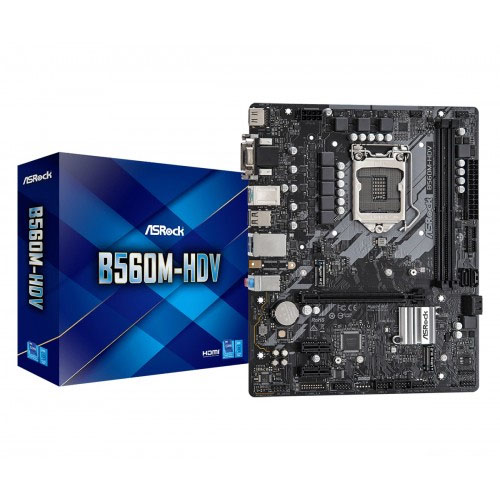

ASRock B560M-HDV 10th and 11th Gen Micro ATX Motherboard
ASRock B560M-HDV Micro ATX Motherboard supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, DDR4 5000MHz (OC), 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, Graphics Output Options: HDMI, DVI-D, D-Sub and 7.1 CH HD Audio (Realtek ALC897 Audio Codec). This motherboard comes with 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front), 6 x USB 2.0 (2 x Rear, 4 x Front) and Intel Gigabit LAN, that provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users.
PREMIUM 50A POWER CHOKE
The ASRock’s premium 50A power chokes effectively make the saturation current up to three times better and also providing enhanced and improved Vcore voltage to the motherboard.
Base Frequency Boost (BFB) Technology
With ASRock BFB (Base Frequency Boost) Technology, you may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. This ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
PCIe 4.0 High Speed M.2 Solution
This ASRock B560M-HDV 10th and 11th Gen Micro ATX Motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD and also capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
3 Graphics Outputs and HDMI 4k @60Hz
This motherboard comes with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. And also this motherboard supports the most recent HDMI 4K 60Hz graphics output specification with the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Water Pump Header & Full Spike Protection
This is supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. You can also adjust the voltage of water pump to get higher cooling performance with lower noise. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by unexpected voltage spikes. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately.
