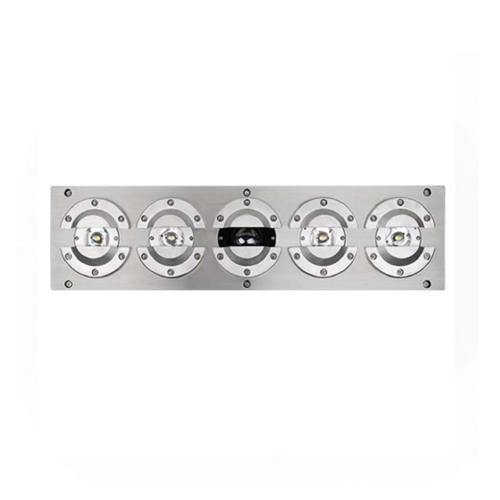

ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner

ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner

Scanning camera: High-speed line-scanning camera

Vertical resolution of the image: >6000*2048 pixels

Speed of vehicle: 1-60km/h (Recommended speed: ≤30km/h)

Effective field of view (FOV): Less than 170°

Auxiliary light: 320W

Weight capacity: 50T

Water-proof grade: IP68

Scanner weight: 105KG

Scanner size: 1100mm*280mm*205mm

Package weight: 140KG+51KG (Distribution box) +90KG (Console desk)

Surveillance camera: 2MP HD camera

Supported Software: ZKBio SIS

Communication Interface: RJ45 (TCP/IP)

The ZKTeco ZK-VSCN200 Permanent Under Vehicle Scanner is a cutting-edge security solution designed for efficient and accurate vehicle inspection in high-security areas. This advanced scanner enhances security by providing a comprehensive view of a vehicle’s undercarriage, detecting hidden threats such as explosives, weapons, and contraband. Equipped with a high-speed line-scanning camera, the ZK-VSCN200 delivers exceptionally detailed images with a vertical resolution of over 6000 × 2048 pixels. The system supports vehicle speeds of 1-60 km/h, with an optimal recommended speed of ≤30 km/h for accurate scanning. The wide effective field of view (FOV) of less than 170° ensures full coverage of a vehicle’s undercarriage. The scanner is built for heavy-duty applications, with a weight capacity of up to 50 tons, making it suitable for inspecting trucks, buses, and other large vehicles. The device operates efficiently in various environmental conditions, thanks to its IP68 waterproof rating, which ensures durability even in harsh weather conditions. For optimal visibility in low-light conditions, the ZK-VSCN200 is equipped with a 320W auxiliary light, improving image clarity and enhancing security. The scanner itself weighs 105 kg and has compact dimensions of 1100mm × 280mm × 205mm, making it easy to integrate into different security setups. The system includes a 1TB hard disk for secure storage of scanned images and operates on a 110V–220V AC power supply with a 50–60Hz frequency range. Its components include a distribution box (700mm × 400mm × 1200mm) weighing 51 kg and a console desk (800mm × 750mm × 1560mm) weighing 90 kg, providing a centralized control system for efficient monitoring. The ZKTeco ZK-VSCN200 is an ideal solution for airports, government buildings, military bases, border checkpoints, and critical infrastructure, ensuring reliable, high-performance vehicle security inspections with advanced imaging technology.
