| Model | Zebex Z-3151HS |
| Type | Zebex barcode scanner |
| Brand | Zebex |
| INPUT VOLTAGE | 5 VDC +_ 10% |
| Others | 1D Barcode : UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13 JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5 JAP, Code 11, GS1 DataBar, GS1 DataBar Limited GS1 DataBar Expanded, Telepen |
| Dimension | 106.7 x 58.3 x 155.2 mm (device only) |
| Others | Light Source: 650 nm visible laser diode (VLD) Print contrast: 30% @ UPC/EAN 100% Indicator : Three-color LED (green, red & blue) Beeper operation: Programmable tone & beep time Operating current : 250 mA Power Consumption: 1.25 watts Cable: Standard 2M straight Pitch / Roll / Skew angle: 65° / 30° / 65° Scan Angle: 52° Depth of Field: 35 – 200 mm (UPC/EAN 100%, PCS=90%) |
| Weight | 130g (cable excluded) |
| INTERFACE | Keyboard, RS-232, HID USB, USB Virtual COM, wand |
| Warranty | 1 year |

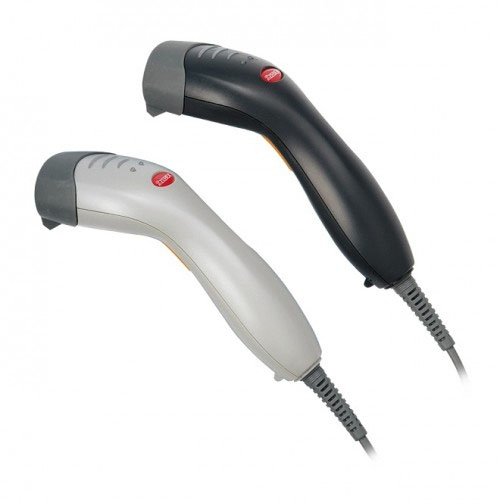

The Zebex z-3151HS is a high class handheld single-line laser scanner with a powerful scan engine. It utilized the omnidirectional technology to transform seven laser lines into one and performs a superb scanning speed at 500 scans per second.
The built-in Z-SCAN+ decoding technology guarantees real-time scanning and accuracy, ensuring an unbeatable first read success rate. The 32-bit MPU allows it to read most 1D barcode types, GS1 DataBar and PDF417.
Decode most 1D barcodes, incl. GS1 DataBar & PDF 417
Zebex Z-3151HS High-Speed Laser Handheld View :
Brand - Zebex, Model - Zebex Z-3151HS, Optical system - Laser, Depth of field - 50 - 110mm (5 mil), 30 - 150mm (7.5 mil), 30 - 180mm (10 mil), 35 - 210mm (13 mil), 20 - 280mm (20 mil), Scan angle - 52degree, Pitch / Roll / Skew angle - 65degree / 30degree / 65degree, Indicators - Three-color LED (green, red, blue), Beepers operation - Programmable tone & beep time, Interface - Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS, Cable - Standard 2M straight, Input voltage - 5 VDC +-10%, Dimensions - 106.7 x 58.3 x 155.2mm, Weight - 130gm, Others - Light Source: 650 nm visible laser diode (VLD), Microprocessor: 32-bit, Power Consumption: 1.25 watts, Laser Class: CDRH Class IIa; IEC 60825-1: Class 2, Decode most 1D barcodes, incl. GS1 DataBar & PDF 417, Superb scanning ability, Operating current - 250 mA, Number of Scan - 500 scans per second, EMC - CE & FCC DOC compliant, VCCI, BSMI, Operating temperature - 0 degree C to +40 degree C (32 degree F - 104 degree F), Storing temperature - -20 degree C to 60 degree C (32 degree F - 104 degree F), Operating humidity - 5% - 95% RH (non-condensing), Light levels - Max. 4,500 Lux (fluorescence), Drop durability - Designed to withstand 1M drops, 1D Barcode - UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen, 2D Barcode - PDF417,Proprietary Z-SCAN+ technology, Rugged and ergonomic form factor, Flexible communications, Honored by iF Product Design Award 2009.
Zebex Z-3151HS High-Speed Features:
Decodes the majority of 1D barcodes, including GS1 DataBar and PDF 417.
