Zebex Z-3100 Barcode Scanner
Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability. ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar.

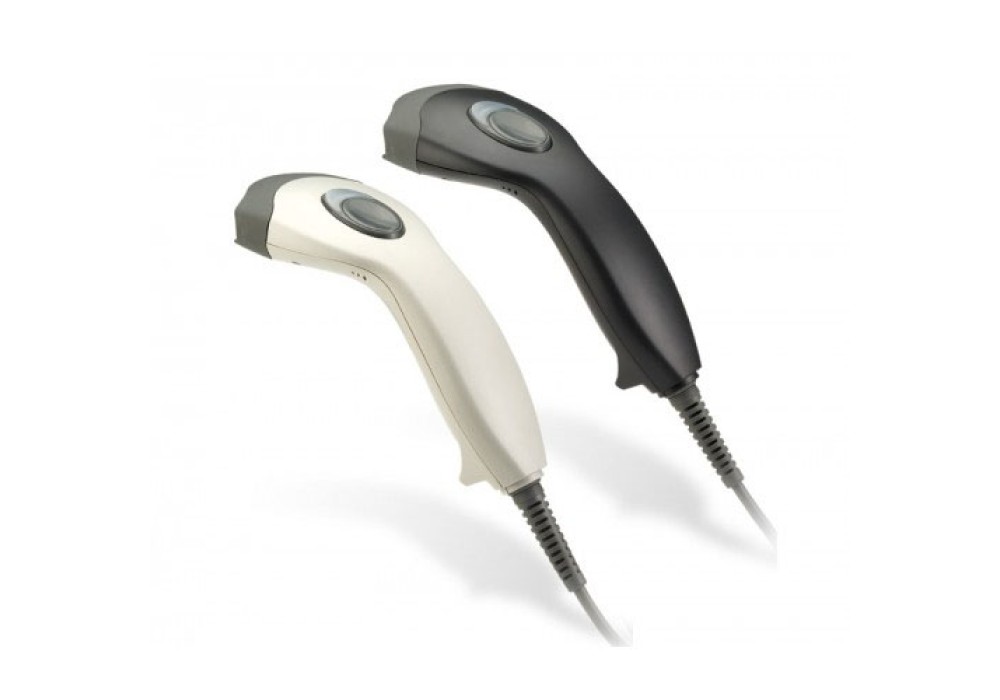

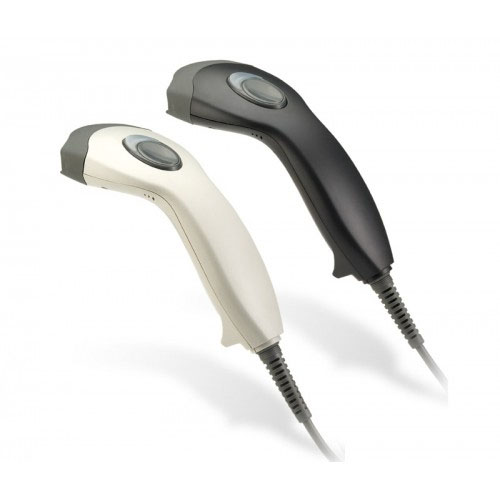

Zebex Z-3100 Barcode Scanner view
The range is up to 300m and the resolution supported is 480 pixels. The Scanning speed is up to 300 scans per second. It is compatible not only with PCs but also with ANDROID mobile phones or tablets. The memory capacity is 8MB which can store more than 10,000 codes. The durable rubberized cover ensures high resistance of the reader and allows a fall from a height of up to 2 meters. The light source is a Laser beam in the visible light spectrum of 650nm. The maximum code density is less than 5 mil; while the minimum code contrast is around 30%. the communication is 433MHz. It Automatically recognizes all commonly used barcodes. For 2D barcode it uses PDF417, QR Code(Model 1/2),micro QR, Data Matrix(ECC200, ECC000,050, 080, 100,140) etc. For 1D barcode it uses Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. The Input voltage is 5VDC with a power of 0.385 mW. The Battery capacity is 500mAh while the Wireless range is up to 300m. The Battery capacity is 500mAh. The Charging time is 3.5 hours.It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.
Zebex Z-3100 Barcode Scanner Quick Overview
- Cable - Standard 2M straight
- Scan Angle - 42 Degree
- Interface(s) - USB, RS-232
- Scanning Speed - 330sps
- Connectivity Mode - Corded
Zebex Z-3100 1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.
Linear Image Handheld Scanner
Z-3100 is the upgraded version of ZEBEX middle-range handheld CCD scanner with faster scan rate, longer scanning depth and better decoding ability. At a superior rate of 330 scans per second, ZEBEX proprietary Ultrascan hardware decoding technology empowers Z-3100 to decode the majority of 1D barcodes as well as GS1 DataBar. It has working range up to 300 mm and is able to decode a barcode wider than 102 mm.
Zebex Z-3100 Barcode Scanner Review
- Proprietary Ultrascan decoding technology
- Streamline design and Large trigger for effortless operation
- 32-bit micro processor unit
- Analog image capture technology
- Support presentation scan mode
- 0 – 100,000 Lux light immunity
- Captures barcodes on mobile phone, tablet, or computer screens
